Adjustment
11. 04.10 Vibrating presser feeding motion
Requirement
With the presser foot 3 resting on the needle plate the vibrating presser 6 and the needle
point must both reach the needle plate at the same time with the vibrating presser stroke
at maximum.
● Loosen nut 1.
● Slide bolt 2 upwards in the elongated hole and tighten nut 1.
● Allow the presser foot 3 to rest on the needle plate.
● Loosen screws 4 enough so that the feed lifting eccentric 5 can be rotated with
difficulty.
● Rotate the lifting eccentric 5 in accordance with the requirement.
● Tighten screws 4.
● Carry out a check.

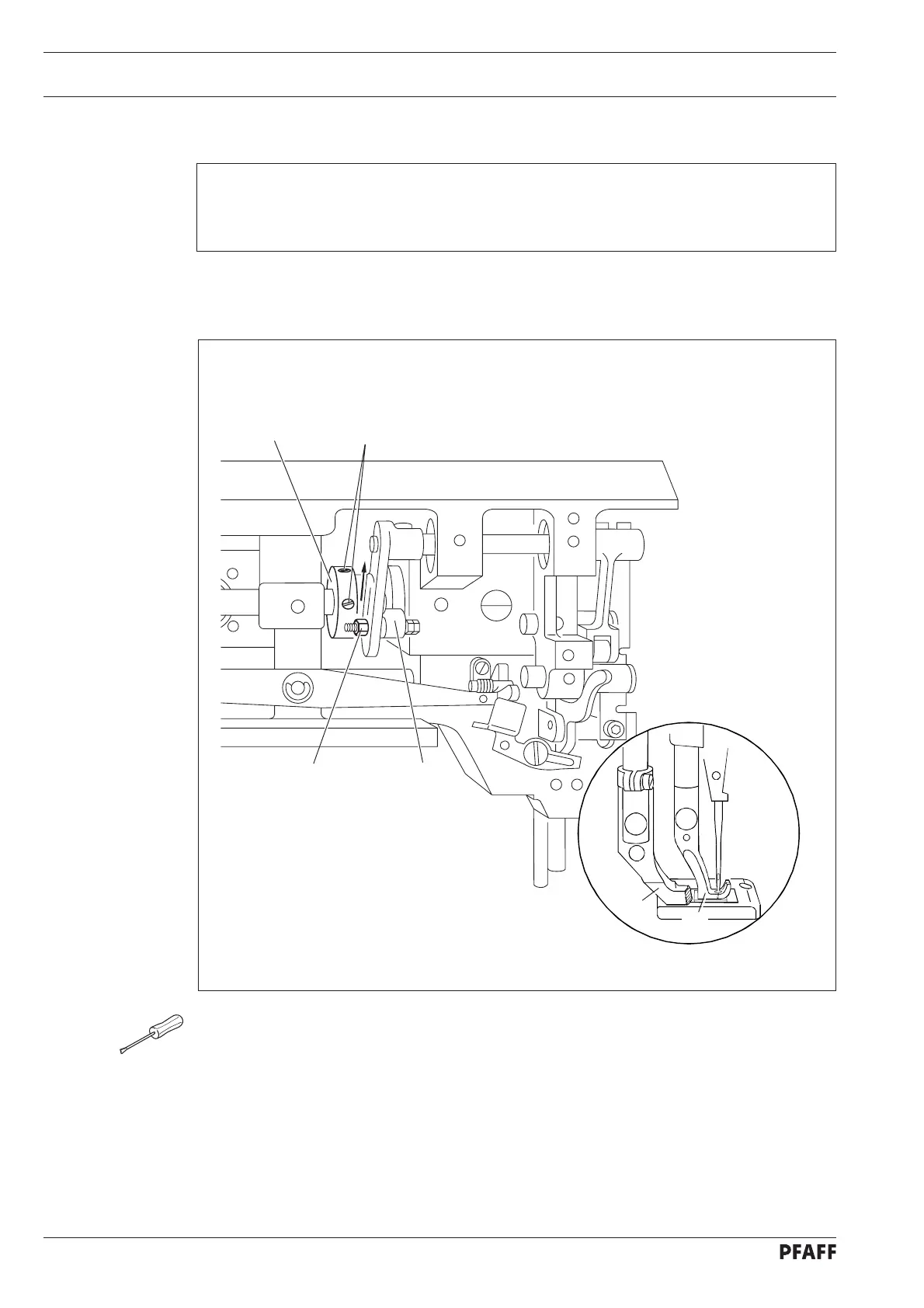

Fig. 11 - 10
1
2
4
3
5
6
