Pfaff 335 User Manual

8 - 2
Mounting and commissioning the machine

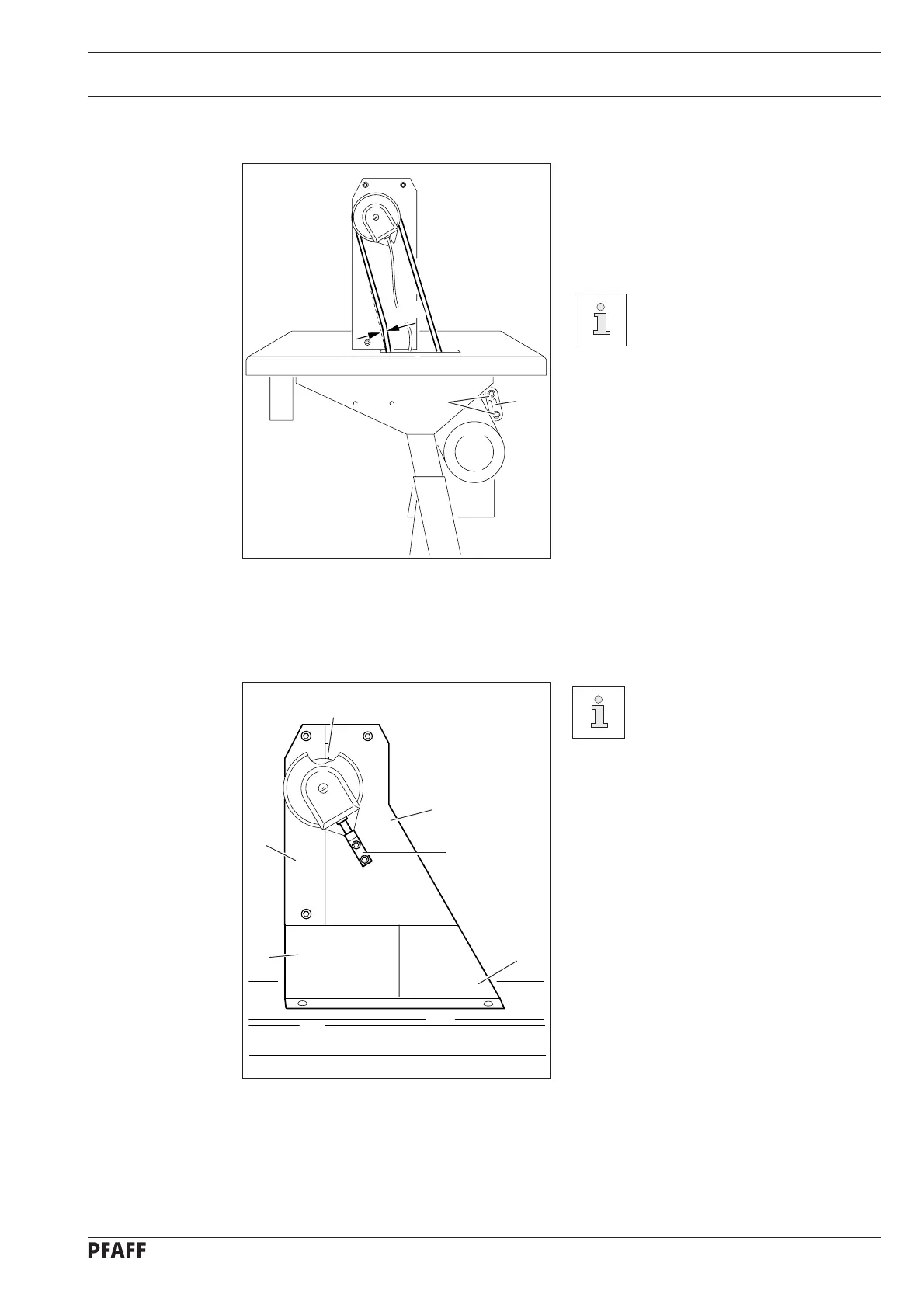

8.01.02 Tightening the V-belt
● Loosen nuts 1.
● Tighten the V-belt using the dolly
switch 2.
● Tighten nuts 1.
Fig. 8-02 shows a Quick motor. If
another motor is used proceed as
described in the instruction
manual!
Fig. 8 - 02
Fig. 8 - 03
2 cm
1
2
4
1
5
3
6
2
8.01.03 Fitting the upper belt guard
If a large balance wheel is in
use, break off corner 1 of belt
guard part 3.
● Screw stop piece 2 onto belt guard part 3.
● Screw on belt guard part 3 onto the
housing.
● Screw on belt guard part 4 onto the
housing.
● Secure belt guard parts 5 and 6 onto the
table top.
