11 - 22
Adjustment
11. 05.07 Lateral adjustment of the thread catcher
Requirement
With the needle bar at its bdc, the tip of the thread catcher 3 must point exactly at the
middle of the needle.
● Remove knife 1 (screws 2).
● Bring the needle bar to its bdc by turning the handwheel.
● Align the thread catcher 3 (screws 4) laterally in accordance with the requirement.
● Activate the magnet core manually and turn the handwheel until the needle bar is at its
tdc. Take care to ensure that the thread catcher 3 does not come into contact with the
thread bobbin case position-finger 6 during its course of movement.
● Screw on knife 1 (screws 2).

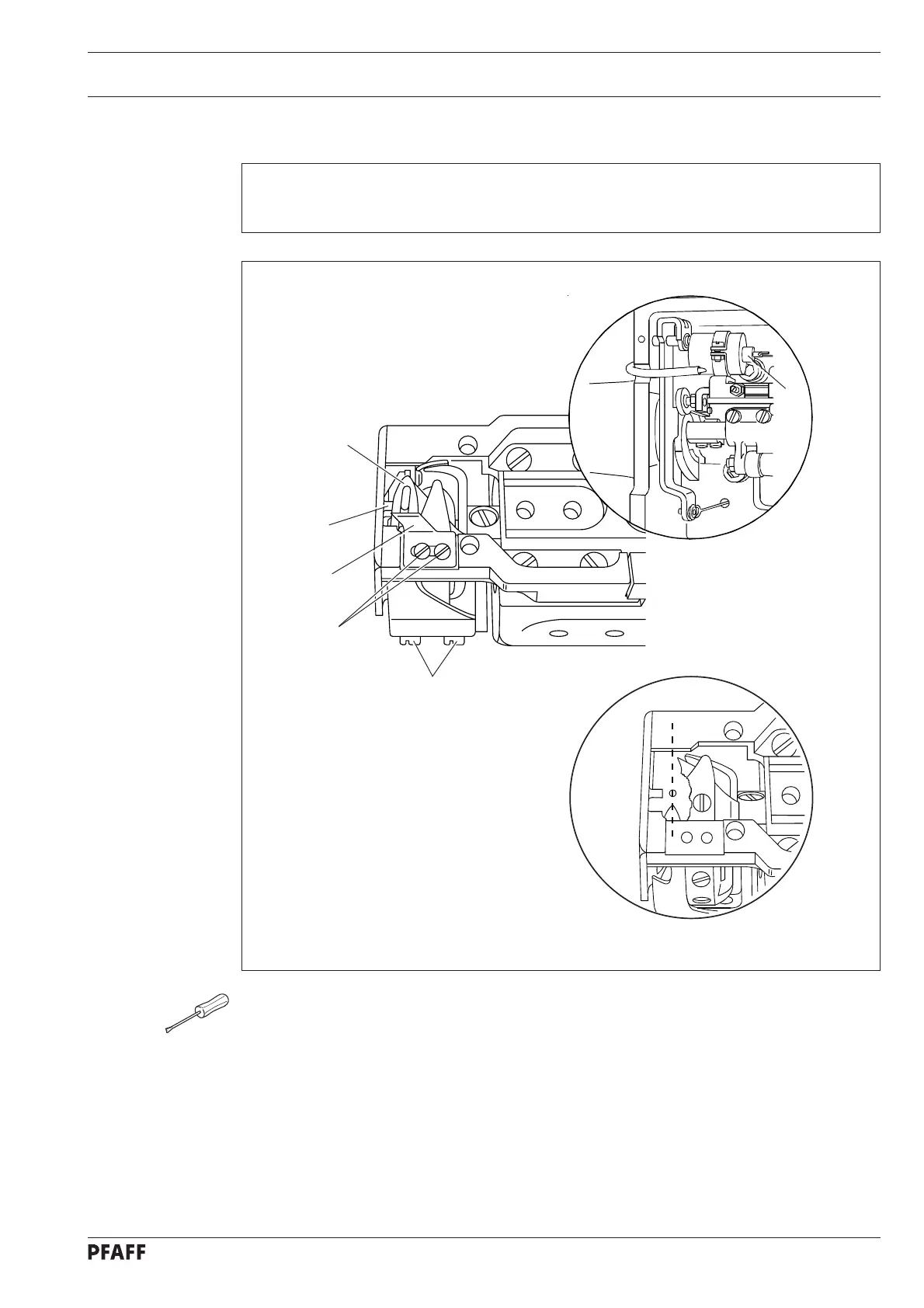

Fig. 11 - 21
3
2
4
6
1
5
