11 - 10
Adjustment
11. 04.09 Vibrating presser lift
Requirement
With the vibrating presser lift at maximum and the stitch length set at “0“, presser foot 1
and vibrating presser foot 2 must lift 7.0 mm from the needle plate when the handwheel
is rotated.
● Set the vibrating presser lift at maximum and the stitch length at “0“.
● Allow the presser foot 1 to rest on the needle plate.
● Turn the handwheel in its direction of rotation until the vibrating presser foot 2 has
reached its highest point.
● Turn crank 3 (screws 4) in accordance with the requirement.
● Carry out a check.

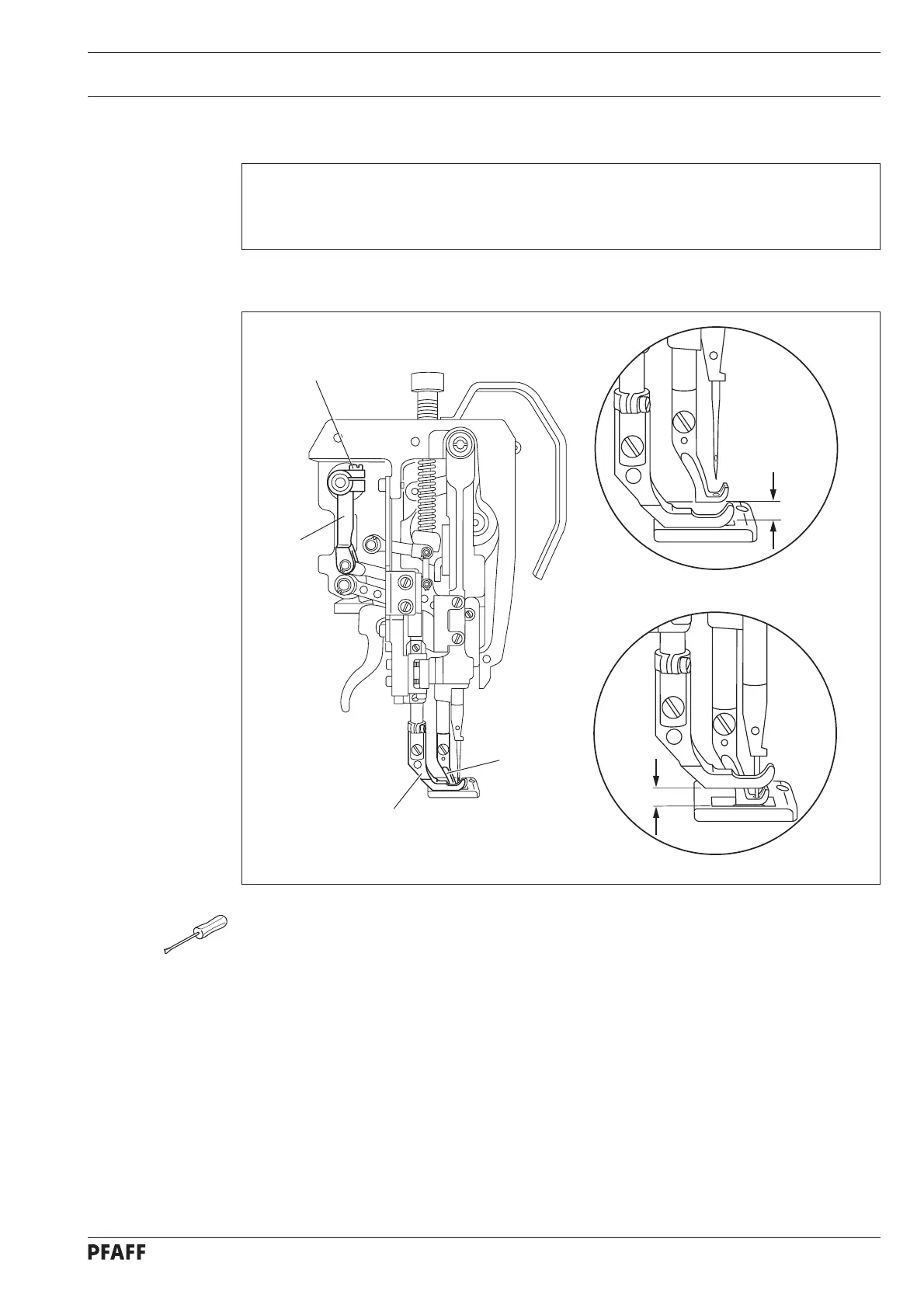

Fig. 11 - 09
2
1
4
3
7 mm
7 mm
