11 - 4
Adjustment
11 .04.03 Height of the bottom feed dog (only on machines with lifting phase – P-version)
Requirement
When the stitch length is set at „0“, in its highest position the bottom feed dog 4
should be
0.8 – 1.1 mm above the top edge of the needle plate.
● Set the stitch length at „0“.
● Adjust eccentric 1 and 2
(screws 3) in accordance with the requirement.
The bottom feed dog 4
should not touch cloth plate 5.

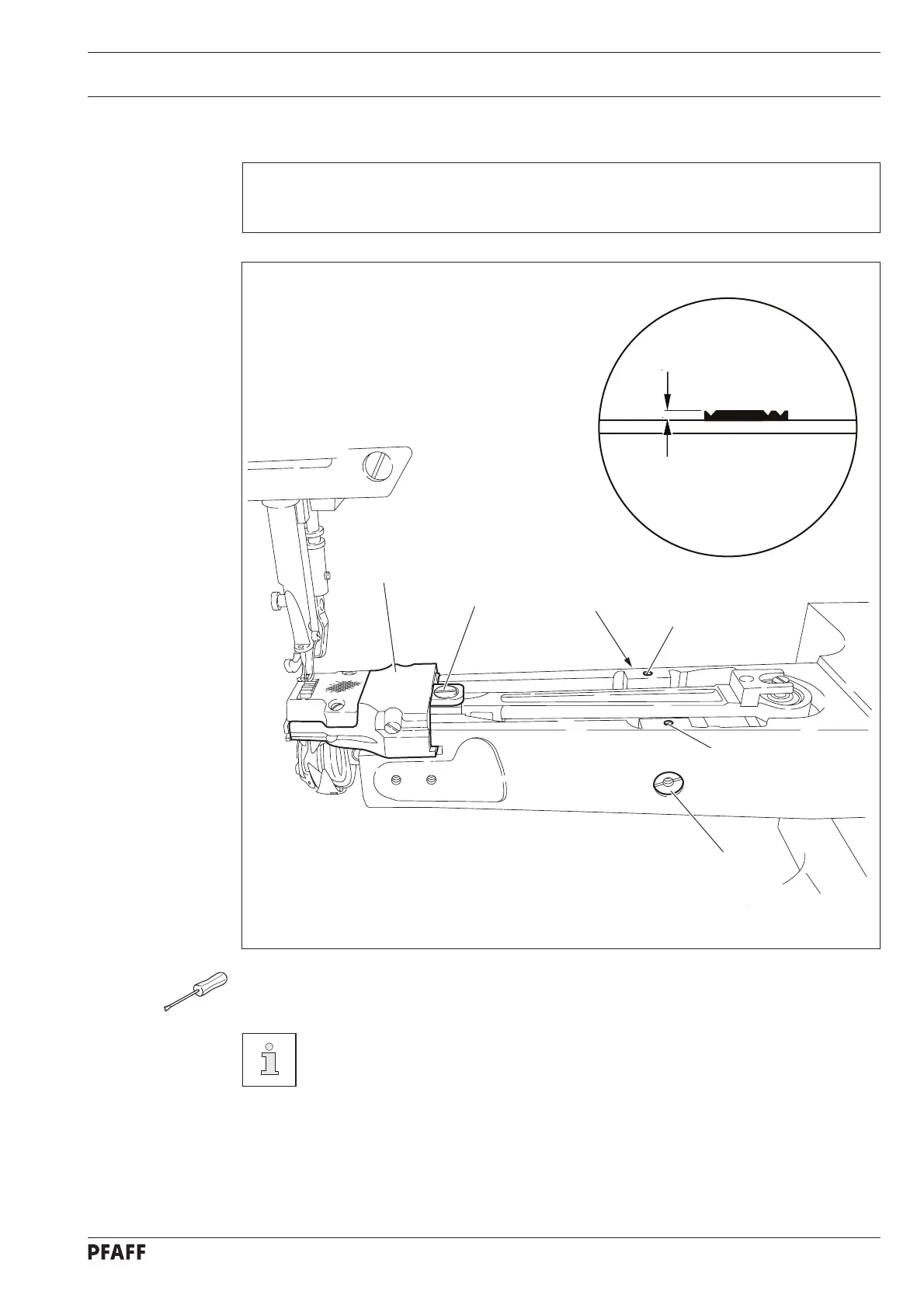

Fig. 11 - 03
2
3
1
0,8 - 1,1 mm
4
3
5
