8 - 3
Mounting and commissioning the machine

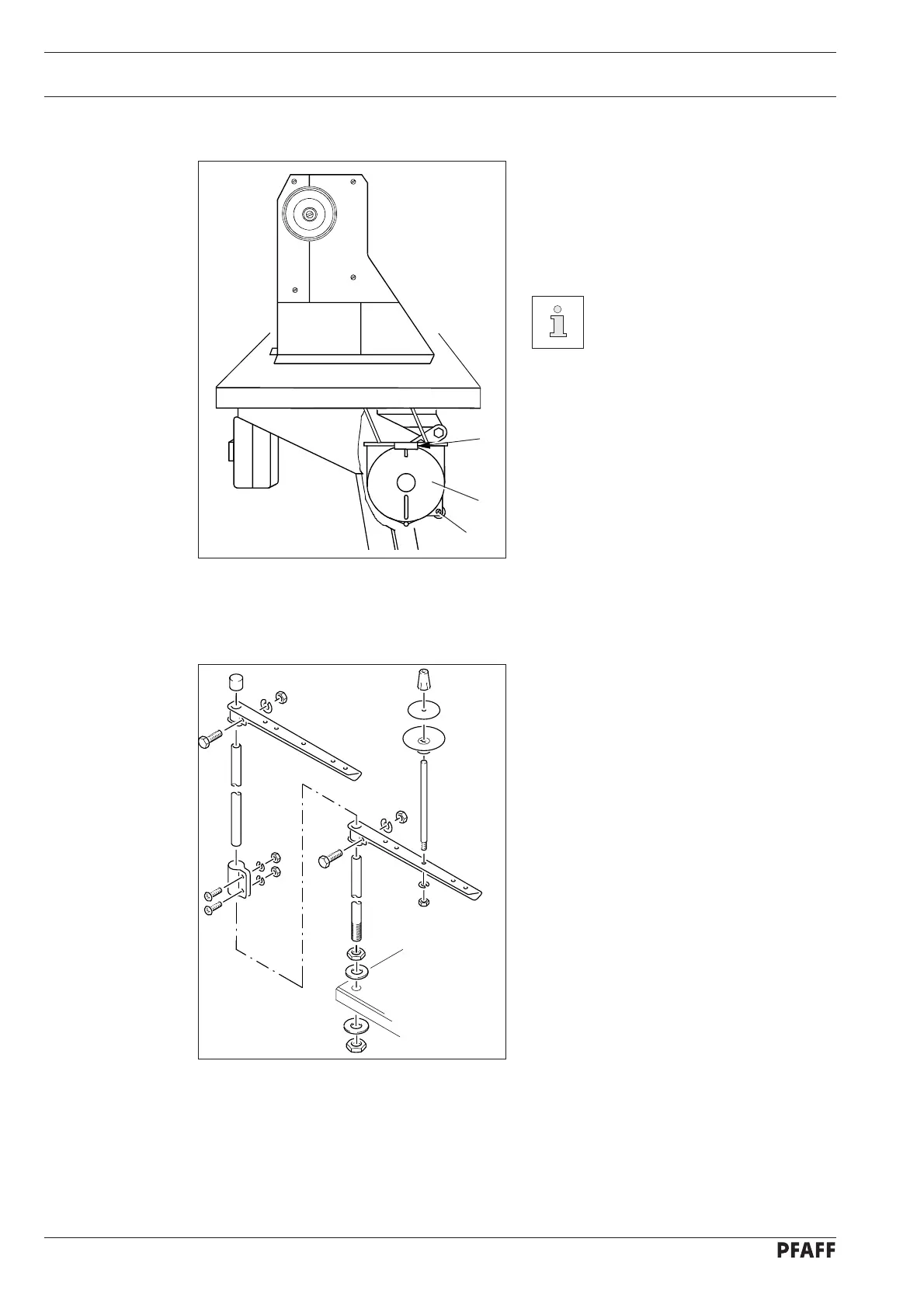

8.01.04 Mounting the lower V-belt guard
● Align the V-belt guard 7 in such a way
that both the motor pulley and the V-belt
run freely.
● Tighten screws 8.
Fig. 8-04 shows a Quick motor. If
another motor is used proceed as
described in the instruction
manual!
8.01.05 Fitting the reel stand
● Fit the reel stand as shown in Fig. 8 - 05.
● Afterwards insert the stand in the hole in
the table top and secure it with nuts pro-
vided.
Fig. 8 - 05
Fig. 8 - 04
8
8
7
