11 - 19
Adjustment
0,5 mm
11.
05.04 Engaging solenoid
Requirement
With the needle bar at its bdc and with the magnet core 1 fully activated, there must be a
clearance of approx. 0.5 mm between the pawl 7 and the retaining collar 6.

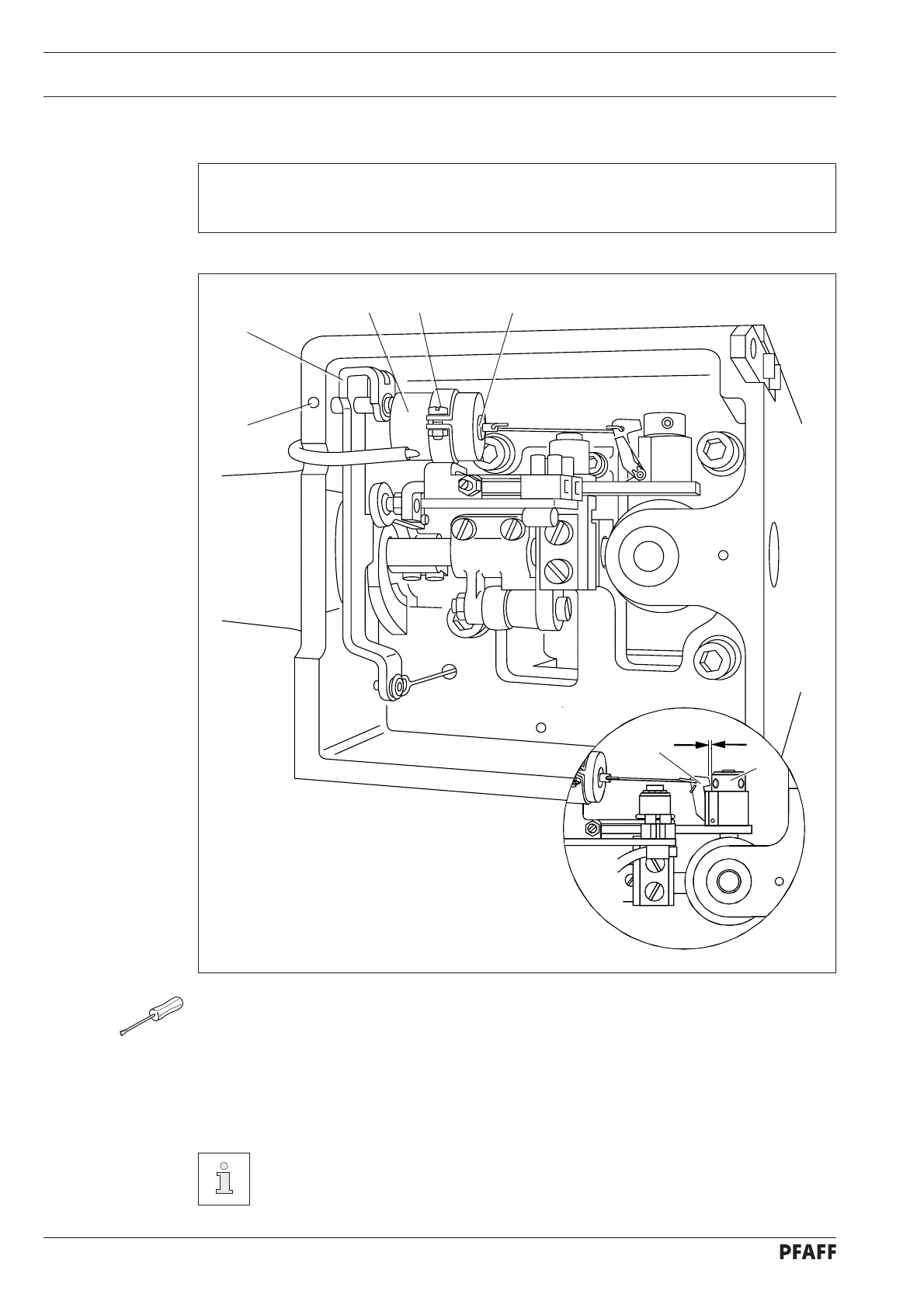

Fig. 11 - 18
Bring the needle bar to its bdc by turning the handwheel.
Push the magnet core 1 in as far as it will go and leave it in this position.
Loosen screws 2.
Move the magnet housing 3 axially in accordance with the requirement.
In this position, tighten screws 2.
Carry out a check.
If the magnet housing 4 touches lever 4, move lever 4 (screw 5) a little to the
left.
7
6
4
32 1
5
