11 - 17

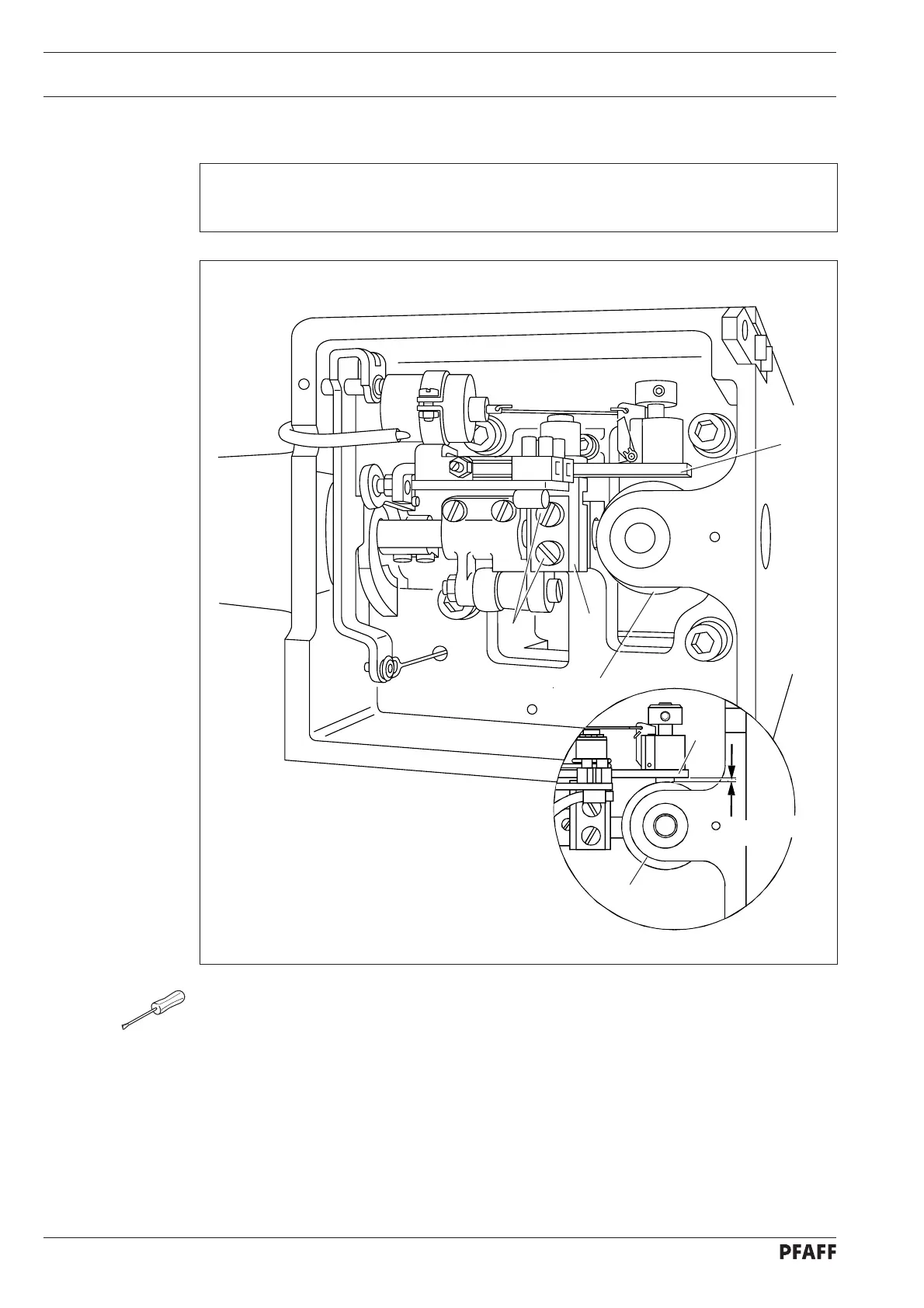

Adjustment
11
.
05.02
T
ripping lev
er height
Requirement
W
ith the needle bar at its bdc there must be a distance of
1.0 mm
bet
ween the tripping
lever
3
and the control cam
4
.
●
Bring the needle bar to its bdc by t
urning the handwheel.
●
Mov
e
the carrier
1
(screws
2
) of the tripping lev
er
3
in the elongated hole in accordance
with the
requirement
.
Fig. 11 - 16
2
4
3
1 mm
4
1
3
47
49
Table of Contents
Instruction Manual
1
Table of Contents
3
Contents
4
Safety
6
General Notes on Safety
6
Safety Symbols
7
Important Points for the User
7
Danger
7
Notes for Operating and Technical Staff
8
Operating Staff
8
Proper Use
10
Specifications
11
Pfaff 335
11
Versions and Subclasses
11
Disposal of the Machine
12
Storage
13
Explanation of the Symbols
14
Controls
15
On/Off Switch
15
Pedal
15
Lever for Lifting the Presser Foot
16
Stitch-Length Adjustment Lever / Reverse Sewing
16
Adjustment Nut for the Top Feed Lift
17
Mounting and Commissioning the Machine
18
Installation
18
Adjusting the Table Height
18
Tightening the V-Belt
19
Fitting the Upper Belt Guard
19
Mounting the Lower V-Belt Guard
20
Fitting the Reel Stand
20
Fitting the Synchronizer
21
Commissioning
21
Switching the Machine On/Off
21
Table Top Cutout
22
Preparation
23
Inserting the Needle
23
Winding the Bobbin Thread, Adjusting the Thread Tension
24
Removing / Inserting the Bobbin Case
25
Threading the Bobbin Thread and Regulating the Bobbin Thread Tension
25
Threading Needle Thread/Adjusting Needle Thread Tension
26
Care and Maintenance
27
Care and Maintenance Intervals
27
Cleaning
27
General Oiling
28
Oiling the Sewing Hook
29
Oiling the Needle-Head Parts
29
Lubricating the Bevel Gears
30
Checking/Adjusting the Air Pressure
31
Cleaning the Air Filter of the Air-Filter/Lubricator
31
Adjustment
32
Notes on Adjustment
32
Tools, Gauges and Other Accessories
32
Abbreviations
32
Adjusting the Basic Machine
33
Lateral Positioning of the Feed Dog
33
Lengthwise Positioning of the Feed Dog
34
Height of the Bottom Feed Dog (Only on Machines with Lifting Phase - P-Version)
35
Centering the Needle in the Needle Hole
36
Pre-Adjusting the Needle Height
37
Driving Motion of the Top and Bottom Feed Dogs
38
Lifting Motion of the Bottom Feed Dog (Only on Machines with Lifting Phase - P-Version)
39
Needle Rise, Hook-To-Needle Clearance and Needle Height
40
Vibrating Presser Lift
41
Vibrating Presser Feeding Motion
42
Needle Thread Tension Release
43
Thread Check Spring
44
Bobbin Winder
45
Regulating the Pressure on the Presser Foot
46
Adjusting the Thread Trimmer -900/52 (Optional)
47
Preadjusting the Control Cam
47
Tripping Lever Height
48
Feed Regulator Pin
49
Engaging Solenoid
50
Adjusting the Height of the Feed Regulator Pin
51
Thread Catcher, Front Point of Reversal
52
Lateral Adjustment of the Thread Catcher
53
Control Cam, Final Adjustment
54
Knife
55
Triggering the Needle Thread Tension
56
Cutting Test
57
Positioner
58
Wearing Parts
59
