Operating Controls
17
7.05 Control panel
The control panel is used to display and access machine functions for set-up and sewing, to
enter parameter values and to read error messages and service settings.
The control panel has the following operating and display controls:
O The display 1 comprises a two-line alphanumeric LCD display with 16 characters per line
and is used to display the corresponding information and selection parameters.
O The plus/minus keys 2 are used for selecting or altering the functions and parameters
shown on the display.
O The function keys 3 are used for turning the corresponding function on and off.
Switched-on functions are each indicated by the lit LED.

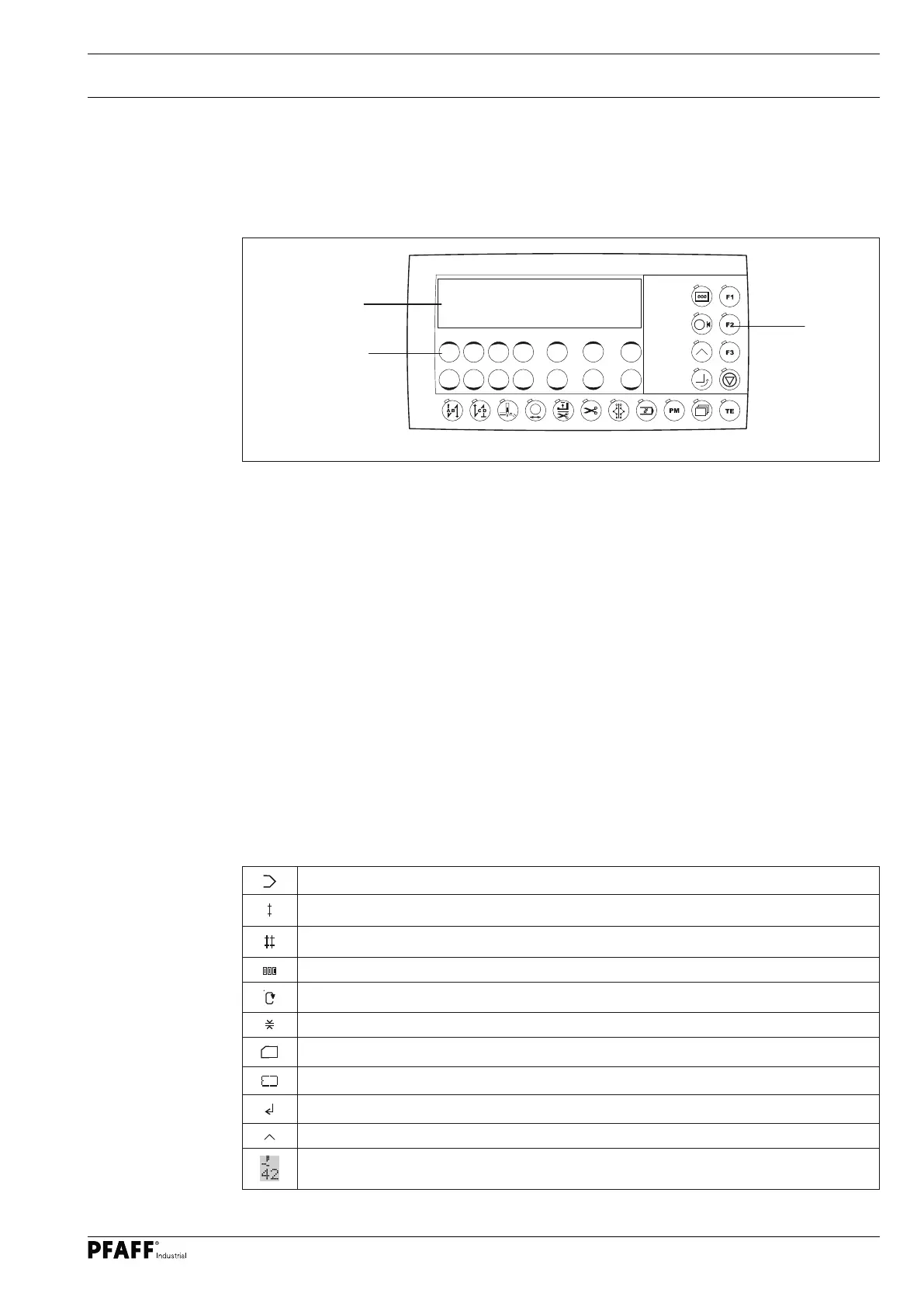

Fig. 7 - 05
1
3
2
7.05.01 Plus/minus keys
In addition to clear texts and set values, the following symbols appear on the display. The
symbols exclusively appear in programmed sewing, see chapter 10.02 Programmed
sewing.
Current program number
Current seam zone
Number of seam zones
Number of stitches in the current seam zone
Maximum speed in the current seam zone
Current stitch length
SD memory card
Machine memory
Enter
Program with corners
Delay stitches
