Set-up and Initial Commissioning
22

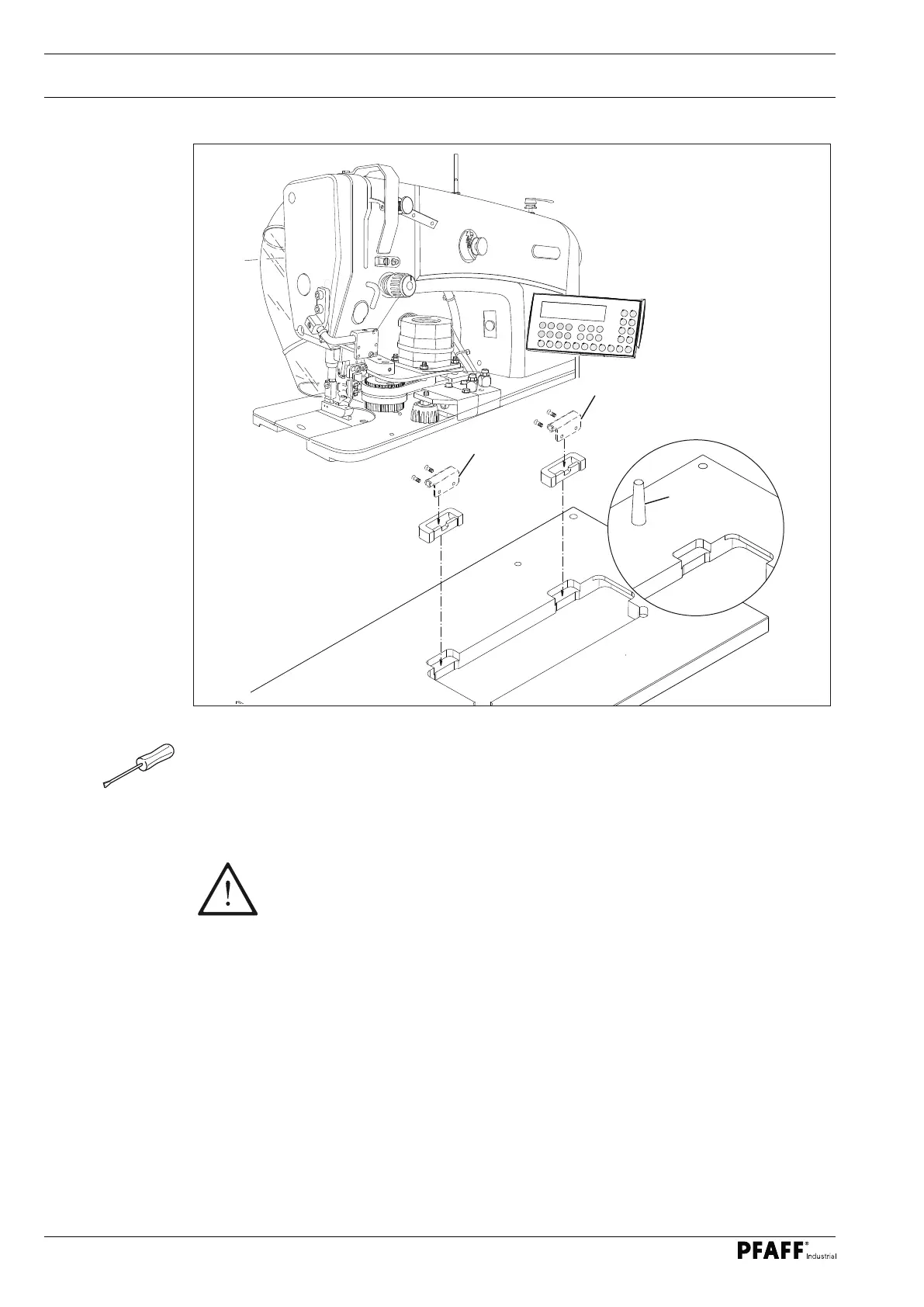

Fig. 8 - 02
8
.01.02
Inserting the sewing machine into the stand
O
The hinge
1
is screwed to the sewing head base plate.
O
Insert the sewing machine into the table top.
O
Insert the sewing head support
2
into the table top hole.
1
Do not operate the machine without the support
2
! Risk of damage due to the
top-heavy sewing head!
Machine can tip over backwards when moving it!
2
1
21
23
Table of Contents
Instruction Manual
1
Table of Contents
3
Safety
6
Directives
6
General Safety Instructions
6
Safety Symbols
7
Special Points of Attention for the Owner-Operator
7
Operating Personnel and Technical Staff
8
Operating Personnel
8
Technical Staff
8
Danger Warnings
9
Proper Use
10
Technical Data
11
Pfaff 3511-3/01
11
Disposal of the Machine
12
Transport, Packaging and Storage
13
Transport to the Customer's Premises
13
Transport Within the Customer's Premises
13
Disposal of the Packaging Materials
13
Storage
13
Work Symbols
14
Operating Controls
15
Main Switch
15
Light Barrier
15
Pedal
16
Hand Lever to Raise the Sewing Foot
16
Control Panel
17
Plus/Minus Keys
17
Plus/Minus Keys
18
Set-Up and Initial Commissioning
21
Set-Up
21
Setting the Table Height
21
Inserting the Sewing Machine into the Stand
22
Connecting the Plug-In Connections and Ground Cable
24
Assembling the Reel Stand
25
Initial Start-Up
26
Switching the Machine on / off
27
Checking the Start Inhibitor Function
27
Machine Drive Home Position
27
Set-Up
28
Inserting the Needle
28
Winding the Bobbin Thread, Adjusting the Thread Tension
29
Removing / Inserting the Bobbin Case
30
Inserting the Bobbin Case / Adjusting the Bobbin Thread Tension
30
Threading the Needle Thread / Adjusting the Needle Thread Tension
31
Entering the Stitch Length
32
Entering the Start and End Backtacks
32
Inserting and Removing the SD Memory Card
33
Inserting the Workpiece
34
Loading the Sewing Template
34
Inserting the Sewing Template
35
Sewing
36
Manual Sewing
36
Programmed Sewing
38
Entering the Authorisation Code
40
Creating / Changing Seam Construction Diagrams
41
Creating a Seam Construction Diagram in "Teach-In Mode
41
Changing Seam Construction Diagrams
45
Error Messages
46
Input
47
Program Management
47
Calling up Program Management
47
Displaying Programs in the Machine Memory
48
Displaying Programs and the Machine Data on the SD Memory Card
49
Coping Programs and Machine Data Onto the SD Memory Card
50
Copying All Programs and Machine Data Onto the SD Memory Card
51
Copying Single Programs and Machine Data in the Machine Memory
52
Copying All Programs and Machine Data in the Machine Memory
53
Deleting Programs in the Machine Memory
54
Deleting Programs and Machine Data on the SD Memory Card
55
Formatting the SD Memory Card
56
Parameter Settings
57
Selecting the User Level
57
Example of a Parameter Entry
58
List of Parameters
59
Error Messages and Description
64
Sewing Motor Errors
64
Errors on the SD Memory Card
64
Maintenance and Care
65
Maintenance Intervals
65
Cleaning the Machine
65
Topping up the Oil Tank
66
Checking / Setting the Air Pressure
66
Cleaning the Maintenance Unit Air Filter
67
Cleaning the Blower Air Filter
67
Wearing Parts
