Maintenance and Care
66

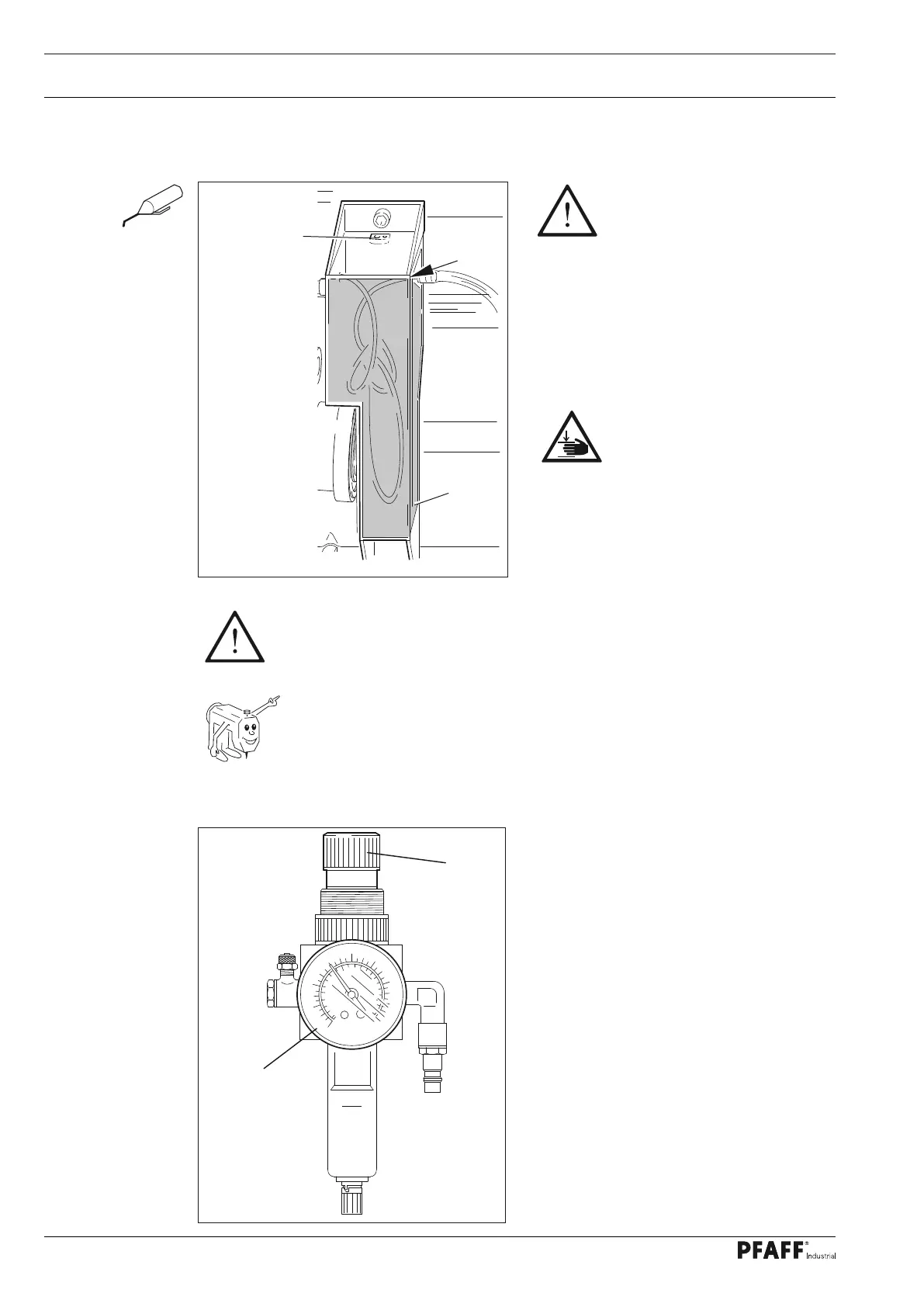

12.03 Topping up the oil tank
The oil reservoir must always
have oil in it.
O Whenever it is necessary to refill the res-
ervoir, tilt back the machine and let it rest
on the sewing head support.
O Fill the oil through the hole 1 into the res-
ervoir 2 up to the level of the front edge
(see arrow).
Return the machine to its
upright position using both
hands!
Danger of injury by crushing
between the machine and the
table top.
Only use oil with a centre viscosity of 22.0 mm
2
/s at 40 °C and a density of
0.865 g/cm
3
at 15 °C.
We recommend PFAFF sewing machine oil part no. 280-1-120 144.
Fig. 12 - 02
2
1
1
12
.04 Checking / setting the air pressure
O Check the air pressure on the
manometer 1 before every start-up.
O The manometer 1 must show a pressure
of 6 bar.
O Adjust this value if needed.
O To do this, pull up the button 2 and turn
it so that the manometer 1 shows a
pressure of 6 bar.
Fig. 12 - 03
2
10
12
0
6
4
2
8
16
14
100
50
150
0
200
230
