Set-up and Initial Commissioning
26
8.04 Initial start-up
Fig. 8 - 06 Fig. 8 - 07
3
1
2
10
12
0
6
4
2
8
16
14
100
50
150
0
200
230

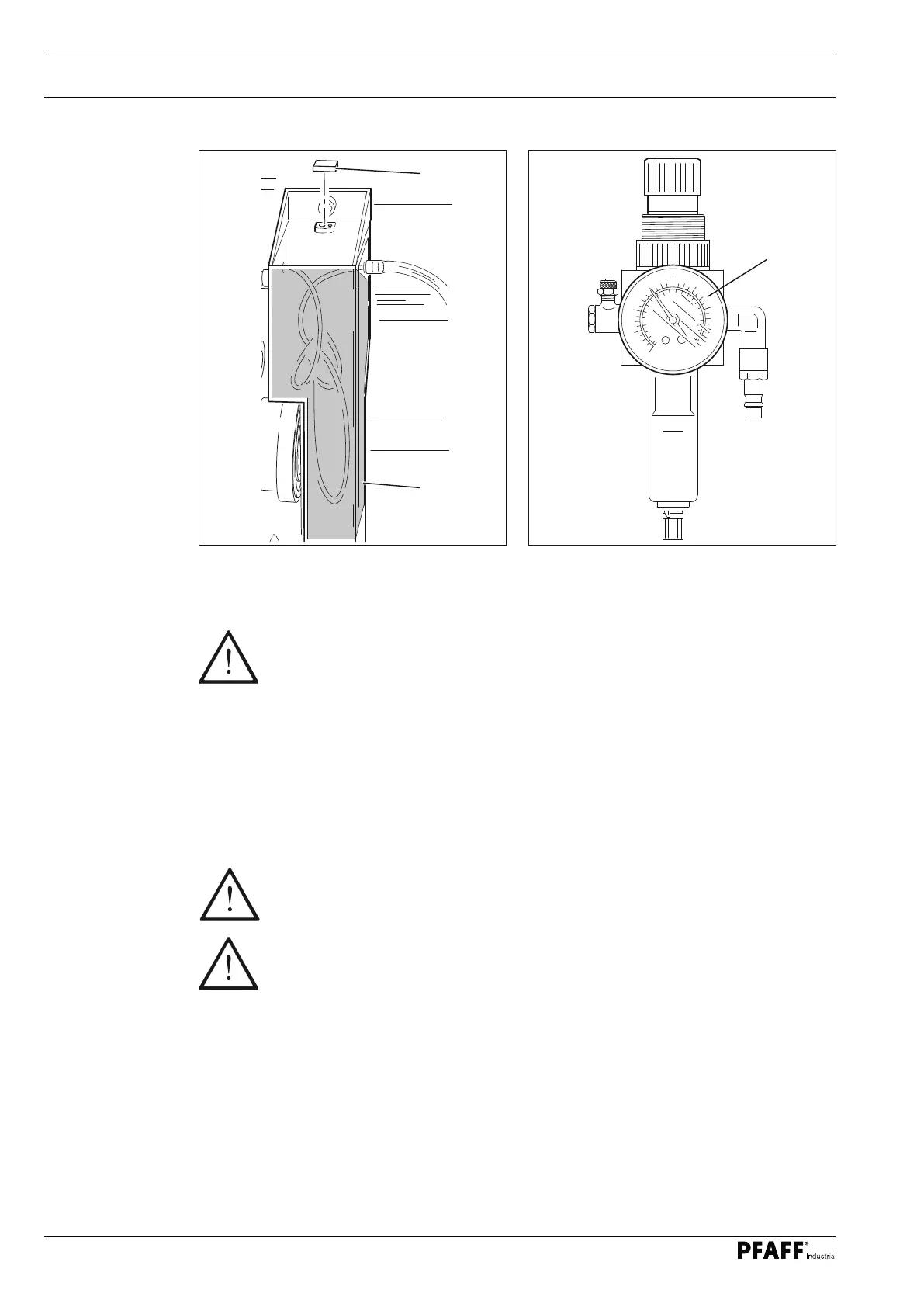

O Inspect the machine, particularly the electric cables, for any damage.
O Remove the plug 1 of the oil reservoir 2 before the initial commissioning.
The plug 1 serves solely for transit support and may not be used during the
sewing operations.
O Clean the machine thoroughly and then oil it, see also chapter 12 Maintenance and
Care.
O Connect the machine to the compressed air system. The manometer 3 must show a
pressure of 6 bar. Set this value if required, see chapter 12.04 Checking / setting the air
pressure.
O Arrange for technical staff to check whether the machine's motor may be operated at the
existing mains voltage and whether it is connected properly.
Never operate the machine if there are any differences.
The machine must only be connected to a grounded socket!
O With the machine running, the handwheel must turn towards the operator, otherwise
arrange for technical staff to adjust the motor, see chapter 11.02 Parameter settings.
