8 Operational controls and optical displays
8.01 On/Off switch
● Turn the machine on and off by turning
the On/Off switch 1 to „1“ for on and
„0“ for off.
8.02 Functions of the pedal
0 = Machine stop
The position of the presser foot and
needle are dependent on the position
of the switches 1 and 3 on the quick
control panel (see chapter 8.05
Functions of the quick control
panel).
+1= Depends on the position of switch 1
on the quick control panel:
Switch 1 up - presser foot down
Switch 1 down - sew
+2= Sew up to the max. speed in 12
steps.
-1 = Depends on the position of switch 1
on the quick control panel:
Switch 1 down - presser foot up.
-2 = End bartack and trim thread in seam
segment 0 (semi-automatic
operation).
8.03 Functions of the knee lever
● By activating the knee lever 1 the
automatic function is engaged.
1

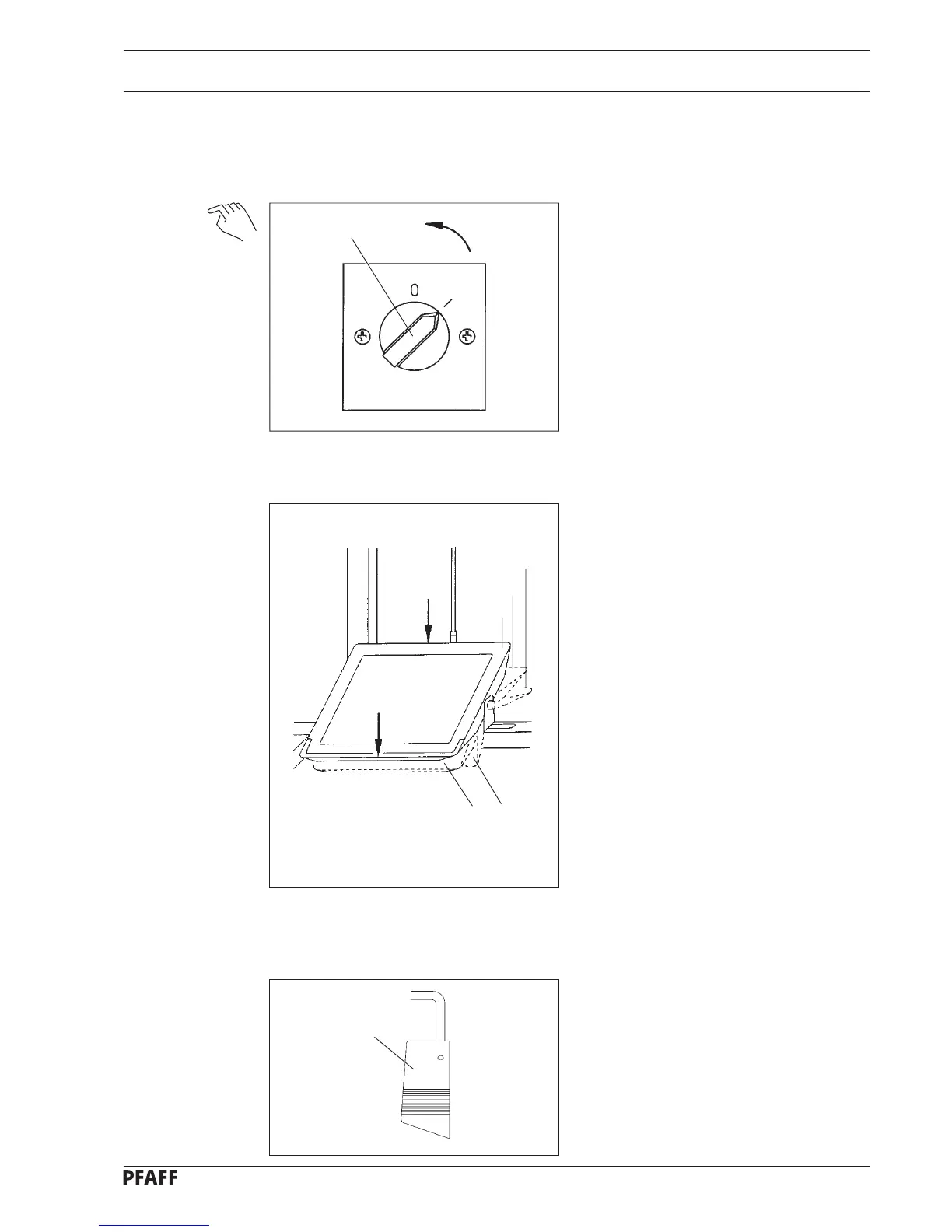

Fig. 8 - 02
Fig. 8 - 03
+2
+1
0
-2
-1
1
Fig. 8 - 01
