14.10 Clearance between presser foot and needle plate
Requirement
With the presser bar lifter 1 raised there must be a distance of 5 mm between the presser
foot and the needle plate.
● Screw on the gauge foot 13.
● Allow the gauge foot to rest on the needle plate using the presser bar lifter 1.
● Reduce the pressure on the presser bar by loosening the adjusting screw 2 (milled
nut 3).
● Loosen screw 4 and press pin 5 out.
● Swing the connecting joint 6 out of the fork of lever 7.
● Bring the vibrating presser to its highest point by turning the handwheel and raise the
gauge foot.
7
4
5
9
10
6
7
13
8
6
2
3
12
11
1
10
7

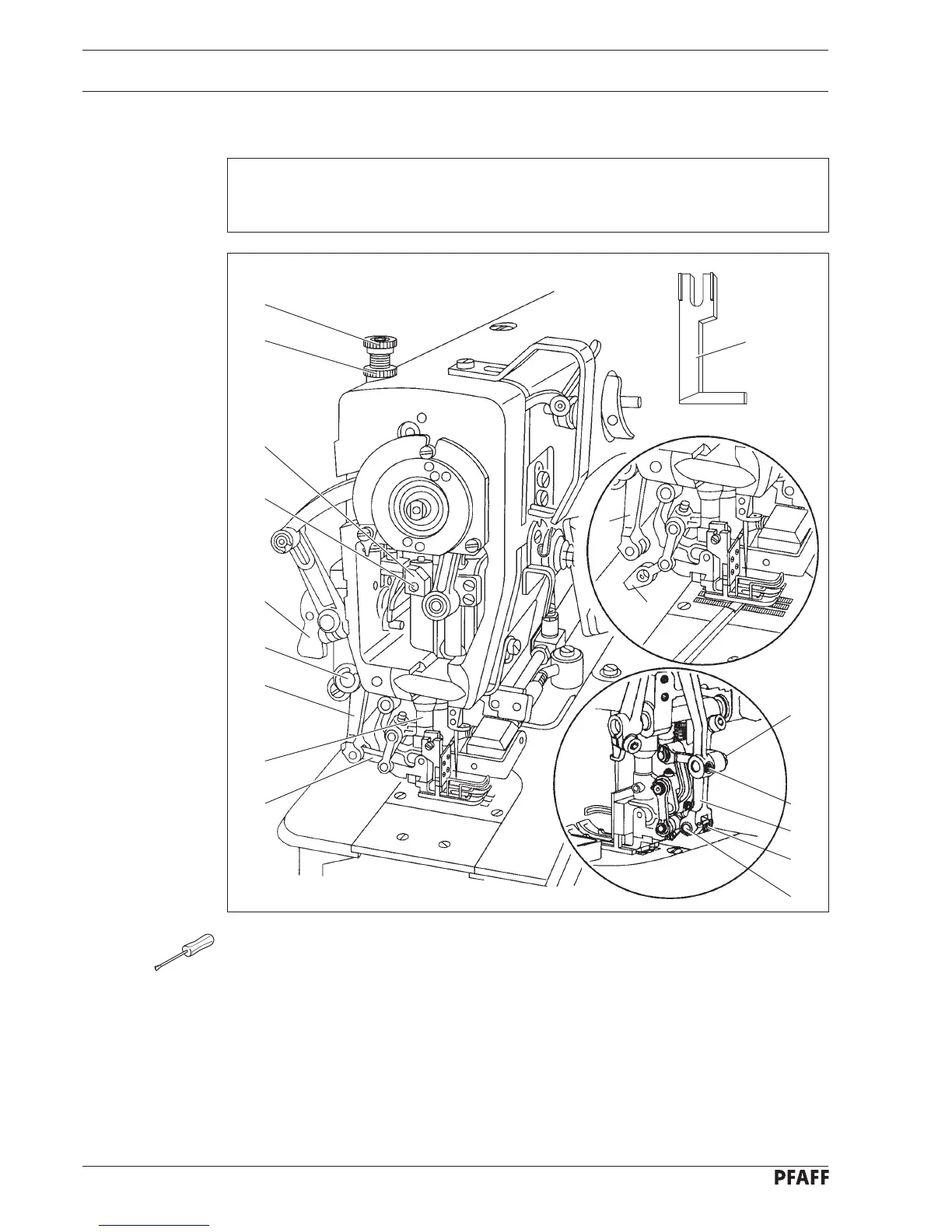

Fig.14 - 09
