Adjustment
14 - 6

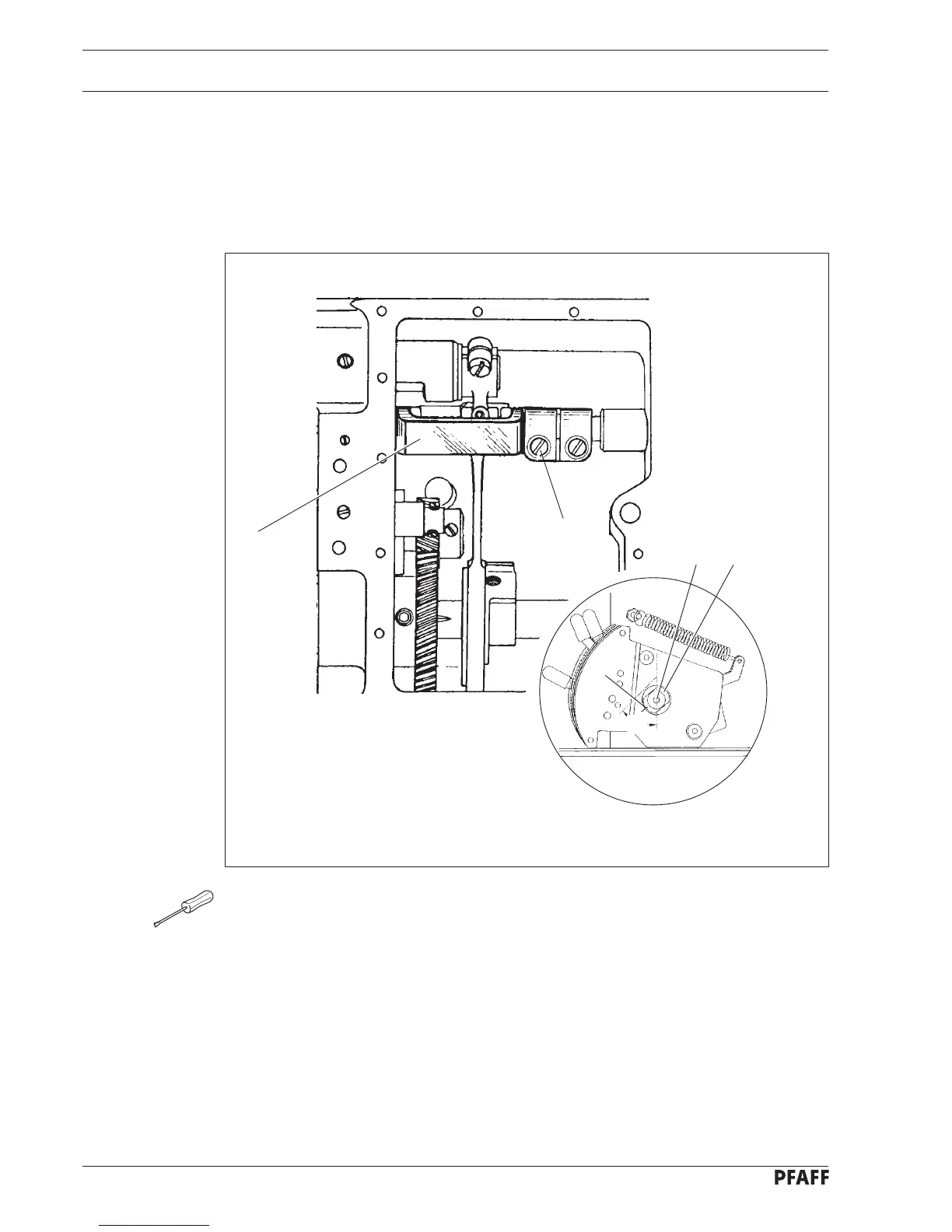

14.06.02 Adjustment with the gearbox housing open
● Raise the presser foot.
● Turn bush 2 (screw 3) so that the marking 4 is pointing downwards and the edge of the
notched surface is at a 45° angle to the front of the machine.
For the final adjustment see chapter 14.18 Synchronizing the vibrating presser.
● Turn the crank 5 (screw 6) in accordance with the requirement.
45°
2
3
6
5
Fig. 14 - 05
4
