Pfaff 3827-2 - Position of the Vibrating Presser

Adjustment
14 - 19
14.17 Position of the vibrating presser
Requirement
With the bottom feed dog at its top point of reversal the vibrating presser must be parallel
to the bottom feed dog.
● Turn eccentric pin 1 (screw 2) in accordance with the requirement.
2
1

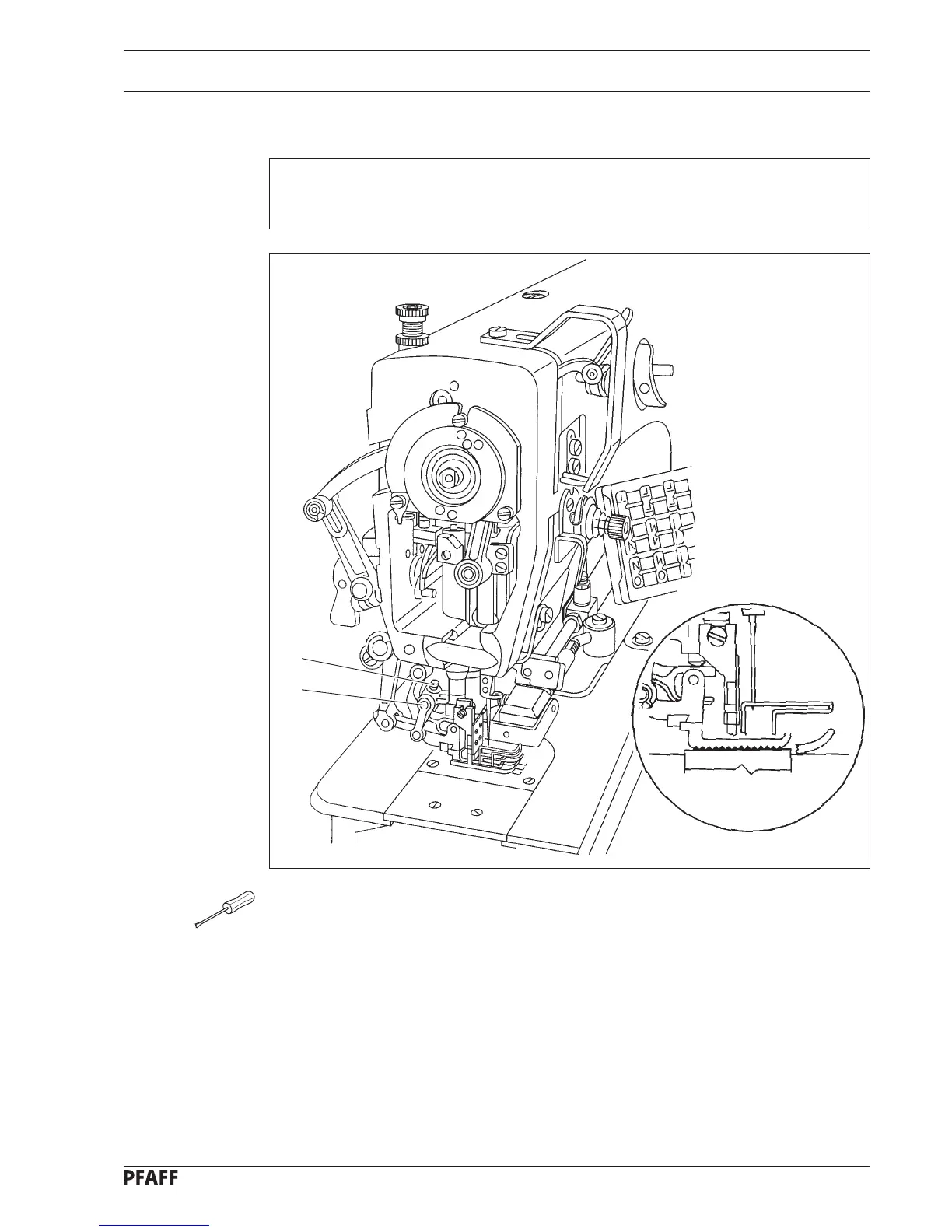

Fig. 14 - 17
