Pfaff 3827-2 - Pre-Adjusting the Needle Height

Adjustment
14 - 3
14.04 Pre-adjusting the needle height
Requirement
With the needle bar at its BDC there must be a clearance of approx. 16.5 mm between the
bottom edge of the needle bar and the needle plate.
● Move the needle bar 1 (screws 2) in accordance with the requirement while taking care
to ensure that the needle retaining screw 3 is pointed to the left viewed in the direction
of feed.
3
1
2
5
1
4
6
3
16.5 mm

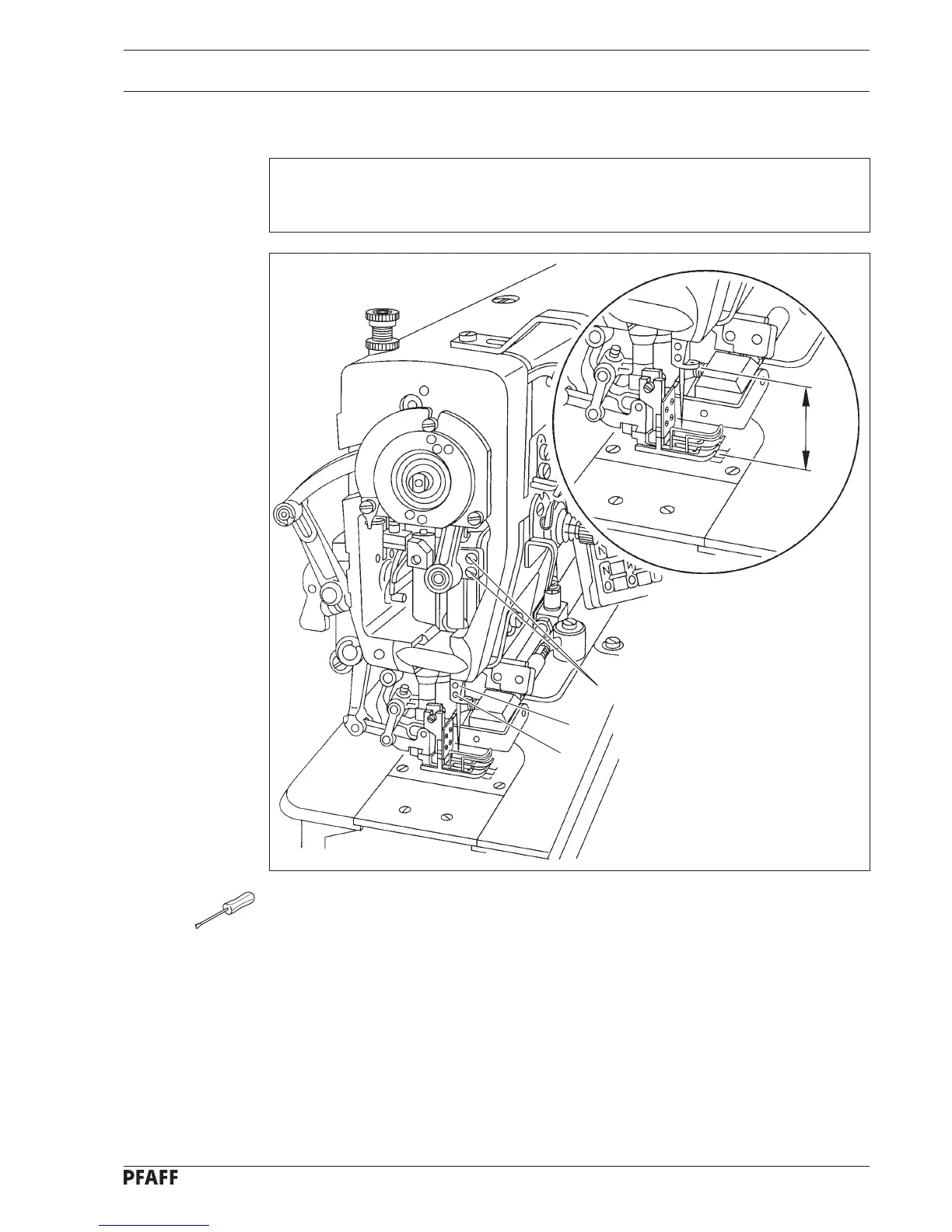

Fig. 14 - 02
