Adjustment
14 - 16
14.14 Feeding motion of the vibrating presser
Requirement
With the machine set at its longest stitch length and the needle bar positioned 0.6 mm
past its TDC (hole 1) the vibrating presser 3 must not move when crank 4 is moved up and
down.
● Raise the presser foot.
● Turn the feed driving eccentric 1 (screws 2) in accordance with the requirement. Ensure
that the notch (see arrow) is visible.
2
1
4
3

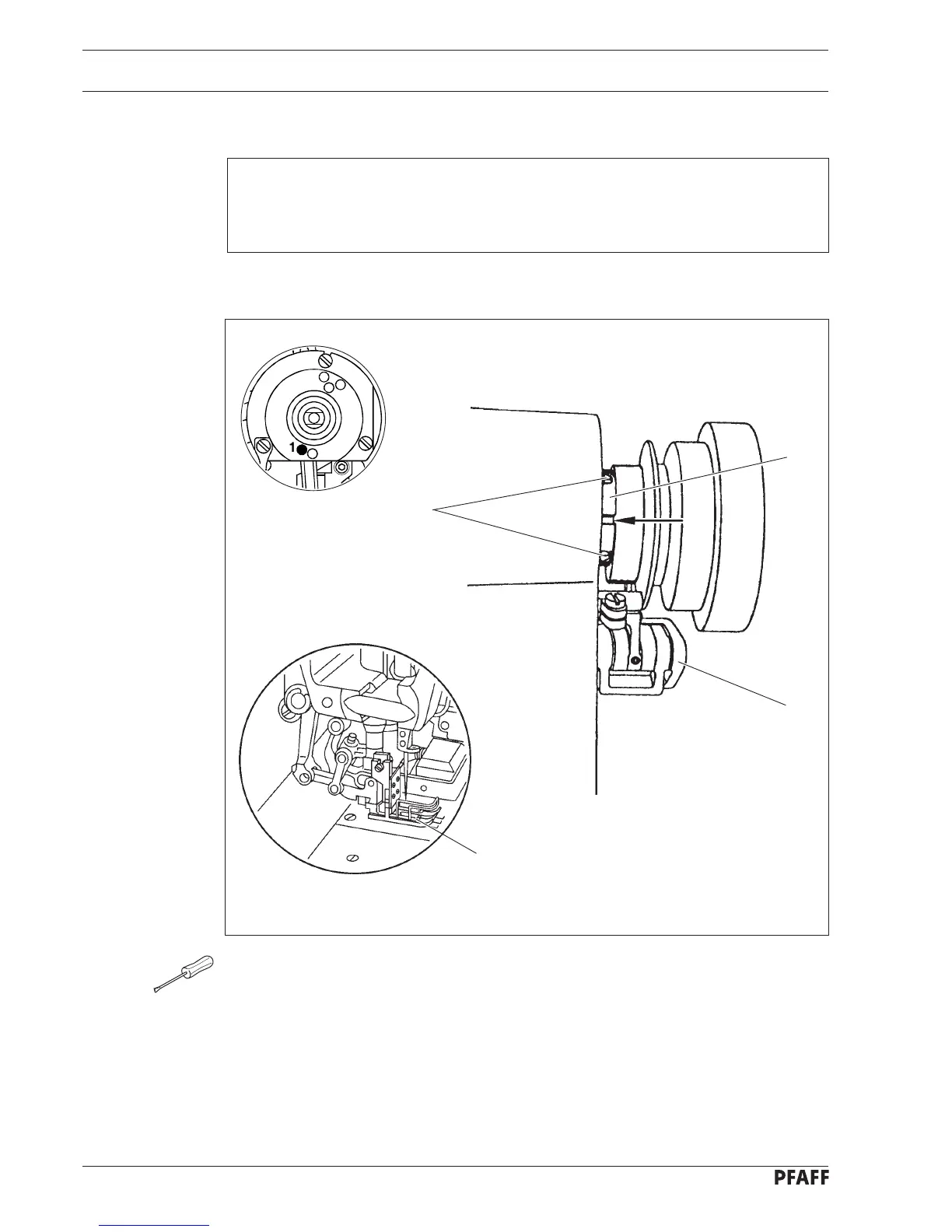

Fig. 14 - 14
