Pfaff 3827-2 - Driving Motion of the Bottom Feed Dog

Adjustment
14 - 7
14.07 Driving motion of the bottom feed dog
Requirement
With the largest stitch length set and the needle bar 0.6 mm after the TDC (hole 1) the
bottom feed dog must not move when the crank 3 is turned in the direction of the arrow.
● Turn the feed driving eccentric 1 (screws 2) in accordance with the requirement while
taking care that the notch in the feed driving eccentric is visible.
3
2
1

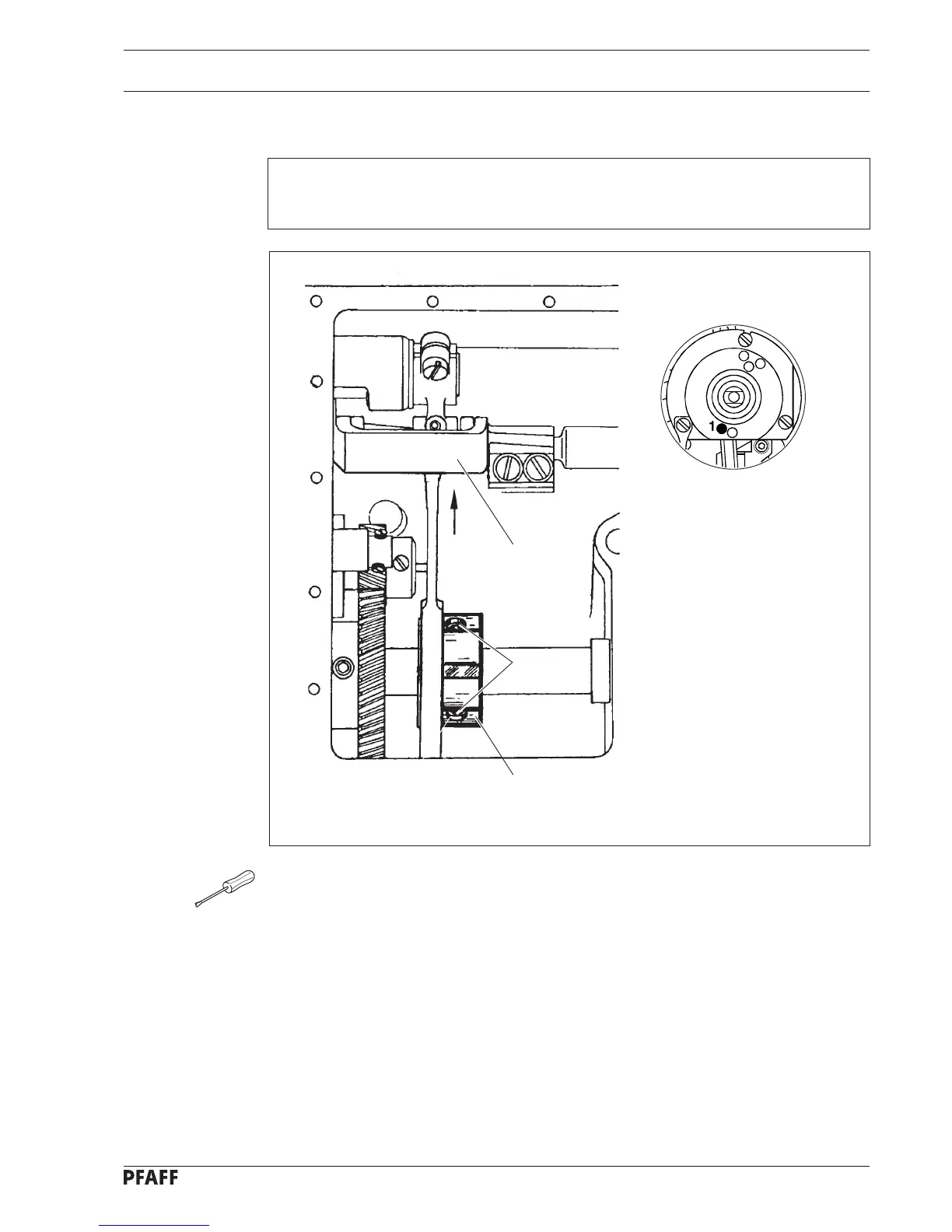

Fig. 14 - 06
