Adjustment
14 - 4
14.05 Centering the needle in the needle hole
Requirement
The needle must enter exactly the middle of the needle hole.
● Bring the needle into a position directly over the needle hole.
● Loosen screws 1, 2 and 3.
● Move the needle bar frame 4 into a position according with the requirement in both the
sewing direction and across the sewing direction.
● Tighten screw 3 tightly and screw 2 just a little.
● Using screw 1 pull the guide pin behind screw 1 towards the eye of the needle bar frame
and tighten it.
● Remove the needle.
● Loosen screw 2. Turn the handwheel a few rotations (to avoid any tension that may
exist) and tighten screw 2.
1
4
3
2

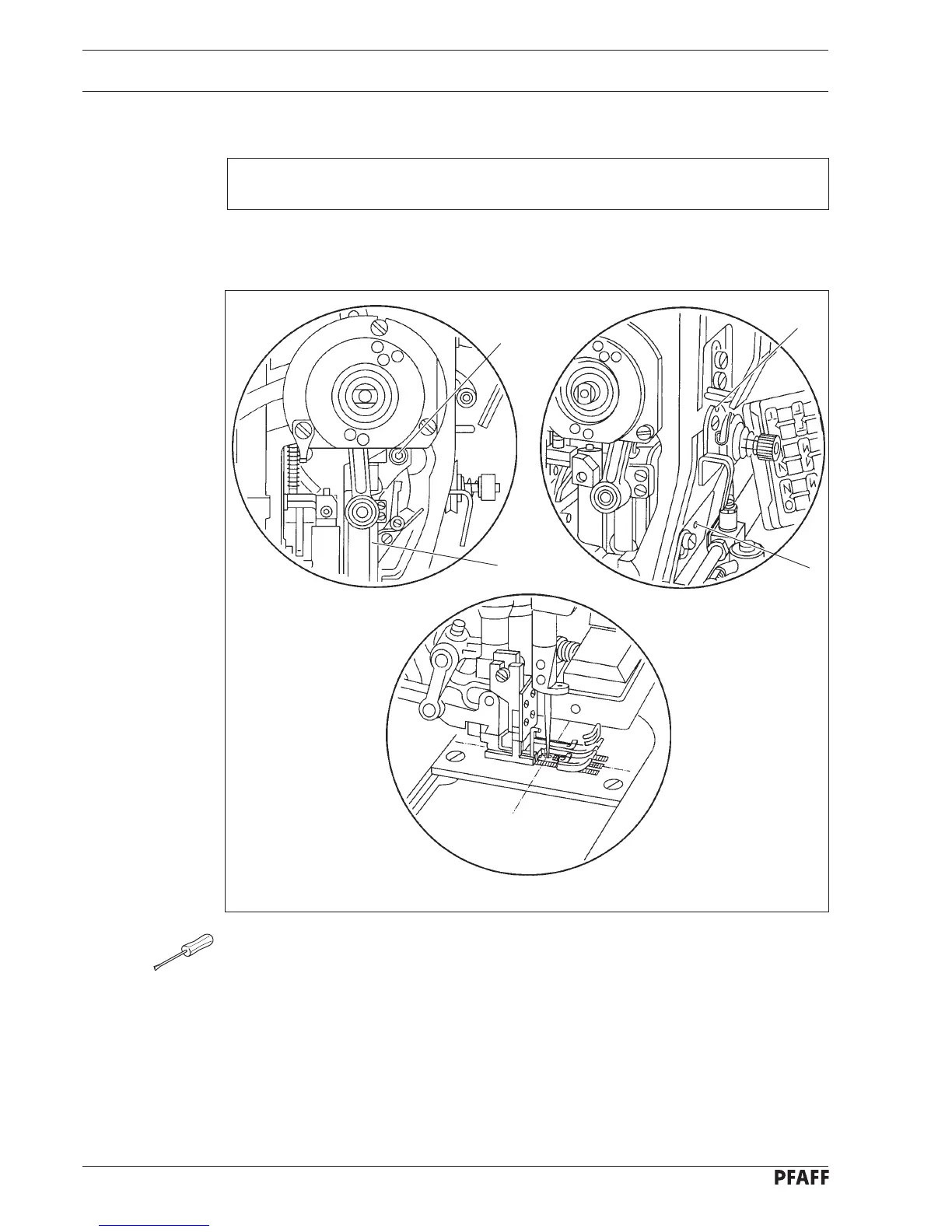

Fig. 14 - 03
