Adjustment
14 - 8
14.08 Lifting motion of the bottom feed dog
Requirement
With the stitch length set at 0 and the needle bar at 0.6 mm after the TDC (hole 1) the
bottom feed dog must be at its TDC.
The notch in the feed lifting eccentric 1 must be approx. vertically underneath the middle
of the axle.
ā Turn the feed lifting eccentric 1 (screws 2) in accordance with the requirement while
taking care to ensure that there is a little play between the feed lifting eccentric 1 and
the connecting rod behind it.
1
2

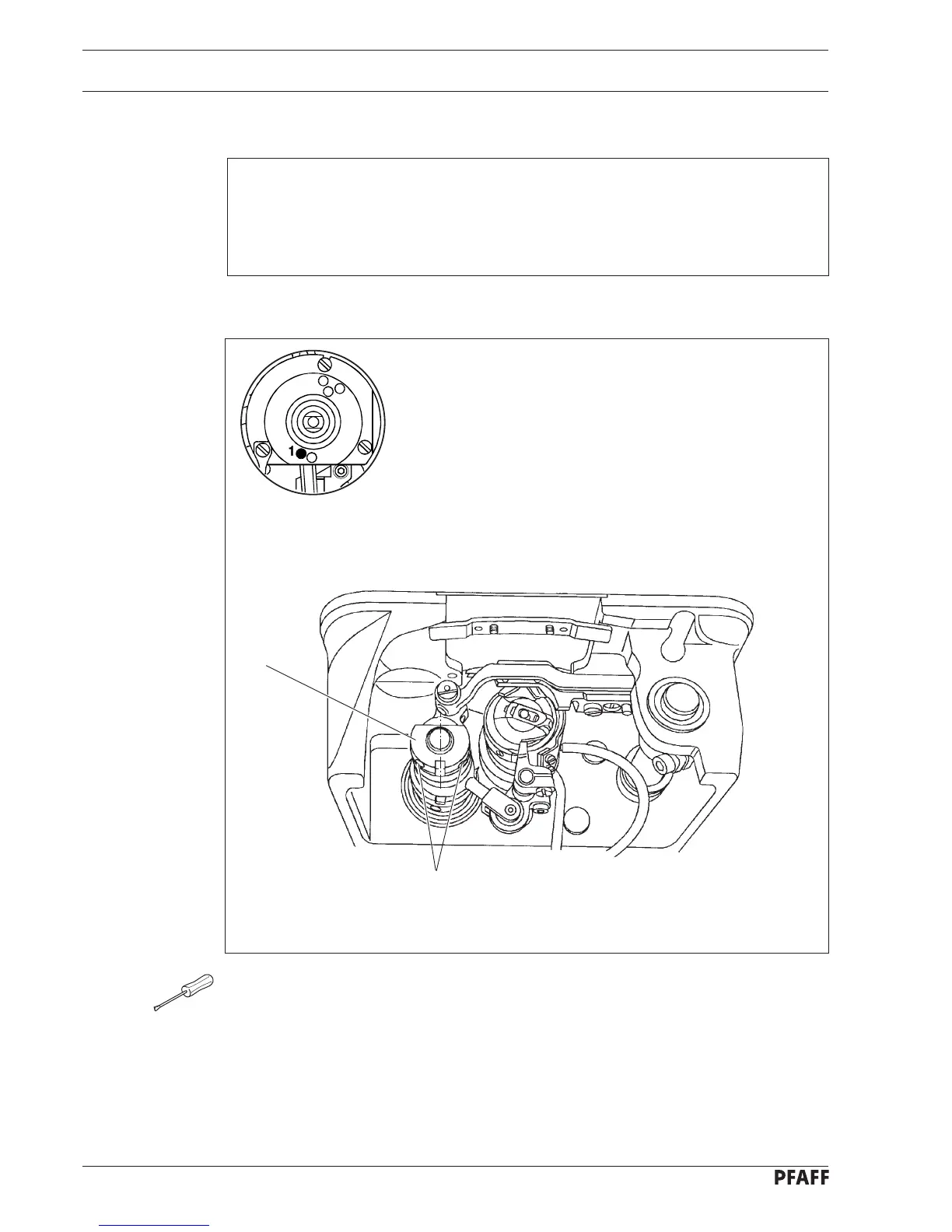

Fig. 14 - 07
