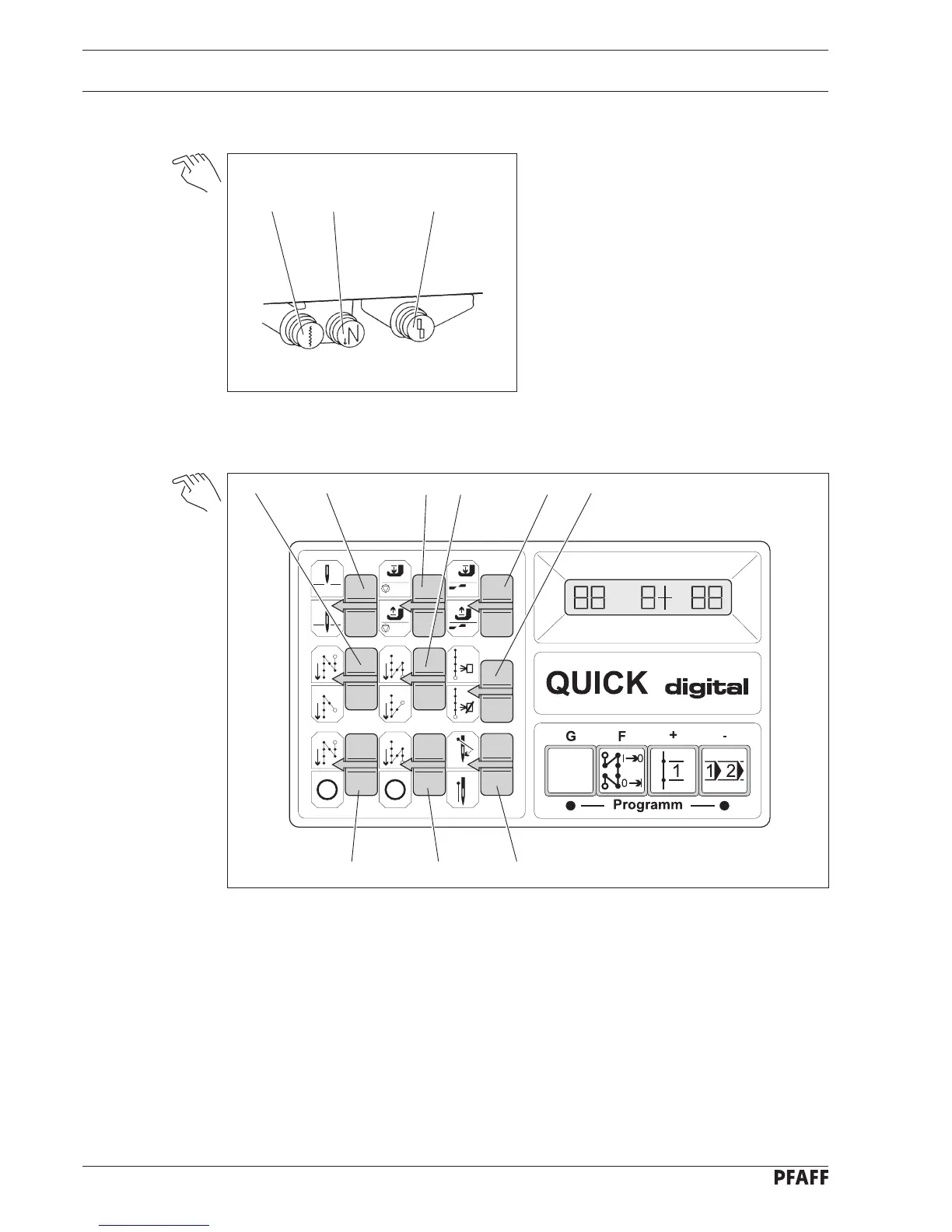

8.04 Functions of the hand buttons
Hand button 1 = Reset; return to semi-
automatic operation.
Hand button 2 = Turn fullness on and
off.
Hand button 3 = Intermediate bartack.
The machine sews
backwards as long as
this button is pressed.
8.05 Functions of the quick control panel
Switch functions
Switch 1 = presser foot up/down with pedal at 0
Switch 2 = presser foot up/down at sewing stop
Switch 3 = needle up/down with pedal at 0
Switch 4 = single/double start bartack
Switch 5 = single/double end bartack
Switch 6 = automatic operation / semi-automatic operation
Switch 7 = start bartack on/off
Switch 8 = end bartack on/off
Switch 9 = thread wiper on/off (no function)
Fig. 8 - 04
2
1
3
Fig. 8 - 05
615234
9
87
