Description of the Axioline E devices
8395_en_03PHOENIX CONTACT 19 / 58
3.2 Housing dimensions of Axioline E metal devices
3.2.1 Ethernet versions (PROFINET, EtherNet/IP
TM
, Sercos,
Ethernet (Modbus/TCP), EtherCAT
®
)

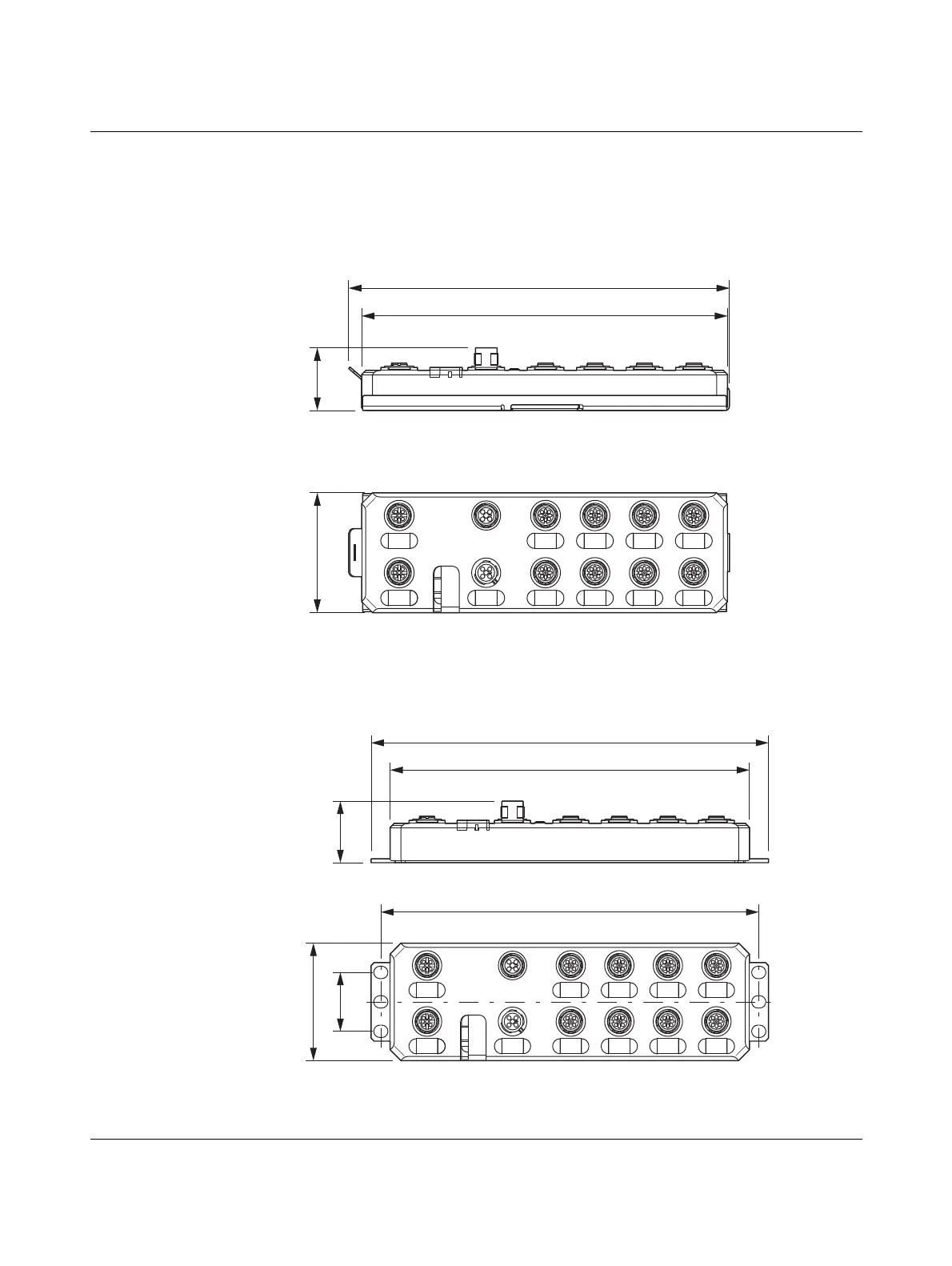

Figure 3-3 Housing dimensions (mm) of metal devices with mounting plate
The height is 194.5 mm including the mounting plate. The depth is 38 mm including the
mounting plate.
Figure 3-4 Housing dimensions (mm) of metal devices with extended fixing clips
194.5
185
38
60
185
212
30.5
198.5
60
30
X21
