Phoenix Contact Axioline E Series User Manual

UM EN AXL E SYS INST
34
PHOENIX CONTACT 8395_en_03
4.6 Setting the address
The Axioline E devices have rotary coding switches for setting the address and, if required,
the transmission speed .
The rotary coding switches are located below a cover.
• Open the cover.

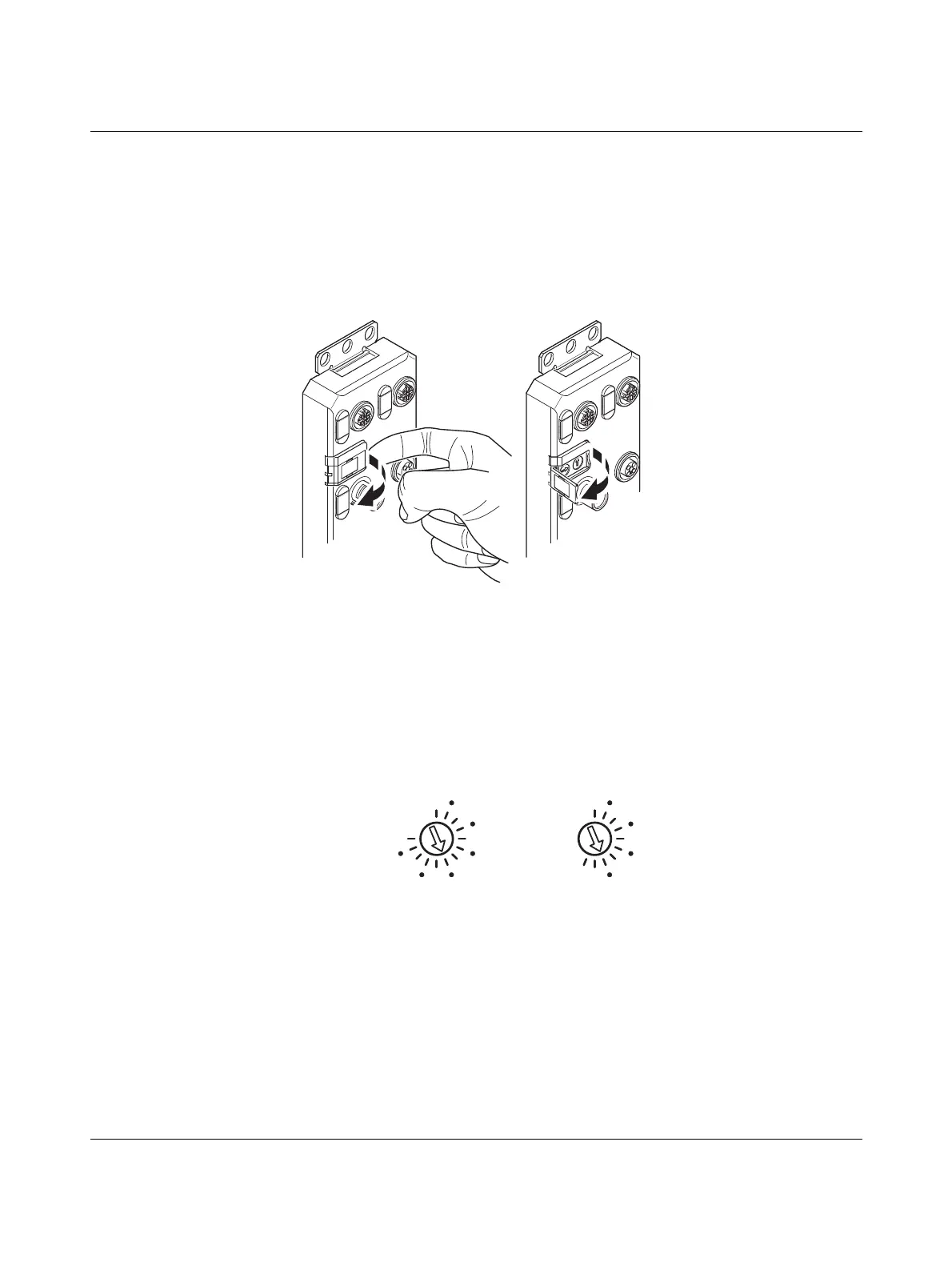

Figure 4-9 Opening the rotary coding switch cover
• Rotary coding switch S1 is used to specify the tens (X10) of the device ID
(module ID).
• Rotary coding switch S2 is used to specify the units (X1) of the device ID
(module ID).
Example:
PROFIBUS DP
Setting address 77 (e.g., PROFIBUS DP):
Figure 4-10 Address 77
1
2
0
2
4
6
8
9
S2
x1
0
2
4
6
8
10
12
S1
x10
