5.2 Axioline E IO-Link digital input and output devices
The Axioline E product group is supplemented by IO-Link digital input and output devices.
These are designed as plastic variants. The IO-Link technology offers the advantage that
IO-Link master can be used as an IO-Link port for communication with the IO-Link digital
input and output devices.
The IO-Link technology is also used to provide the sensor supply (IO-Link A port, L +) and,
if necessary, the actuator supply (IO-Link B port, L + and U
A
).
Axioline E
digital input device
The Axioline E digital input device is connected to an IO-Link master via an IO-Link A port.
It is used to acquire digital signals via IO-Link. The IO-Link master allows the use within dif-
ferent networks, see page 7.
Axioline E
digital output device
The Axioline E digital output device is connected to an IO-Link master via an IO-Link B port.
It is used to output digital signals via IO-Link. The IO-Link master allows the use within dif-
ferent networks, see page 7.
5.2.1 Housing dimensions of the Axioline E
IO-Link digital input and output devices

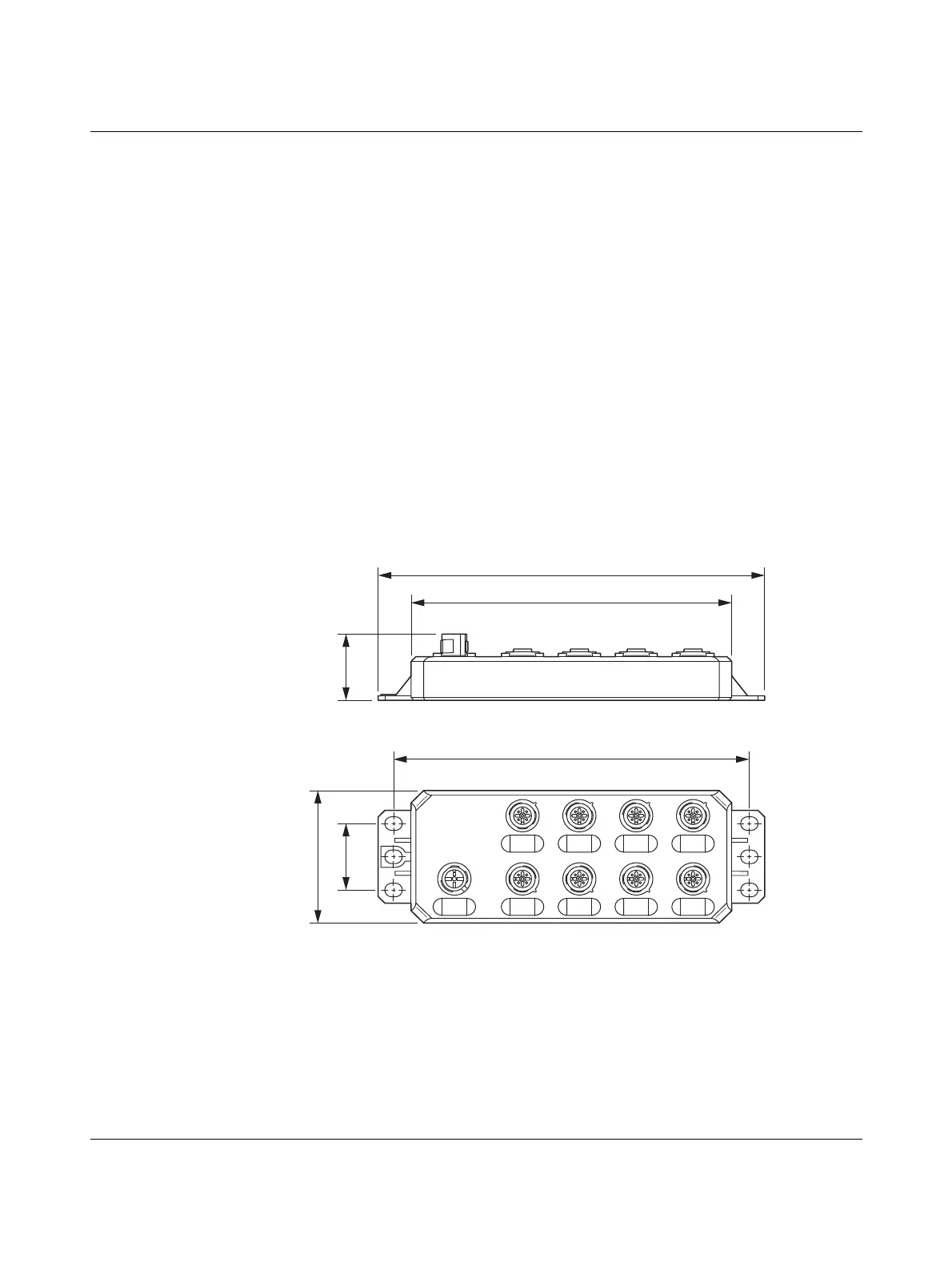

Figure 5-3 Housing dimensions (mm)
of the Axioline E IO-Link digital input and output devices
