FL SWITCH LM ...
3-12
PHOENIX CONTACT 7278_en_04
"General Configuration/Configuration Management" menu
This table is used to view all parameters that are required to save the active configuration or
load a new configuration, and to modify them (by entering a valid password). It can also be
used to restart the system with the relevant configuration.

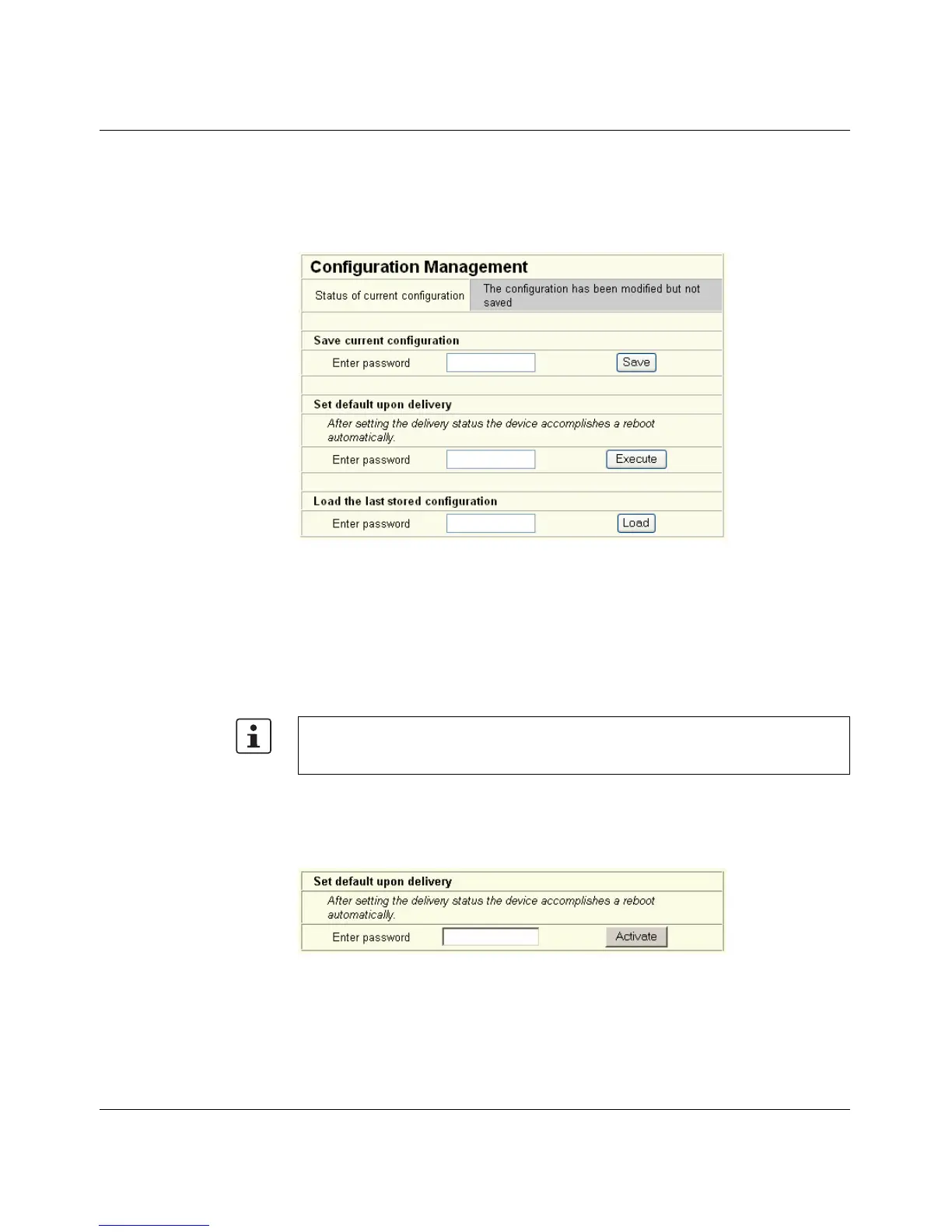

Figure 3-16 "Configuration Management" web page
Possible states for "Status of current configuration":
– The configuration has been modified but not saved.
– Saving the current configuration.
– The current configuration is equal to the one saved in the non-volatile memory of the
switch.
– The current configuration was saved.
Set default upon delivery This option can be used to reset the switch to its default settings (default upon delivery) by
entering a valid password.
If the new configuration is not activated by a reset after a configuration download, the
"Save current configuration" command overwrites the previously loaded configuration and
instead saves the active configuration of the LMS.
