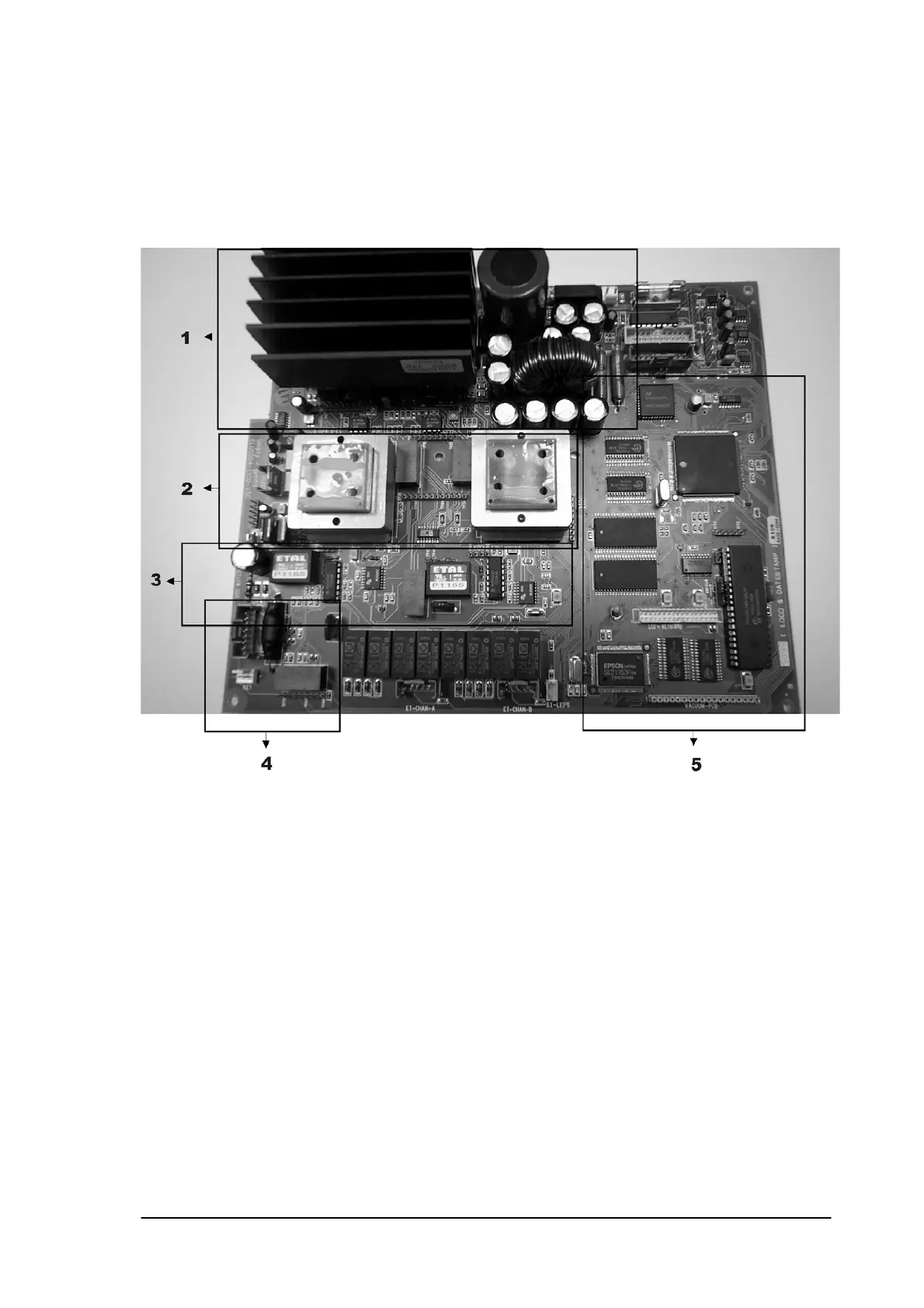

Main PCB
1. Power supply and amplifier transistors.
2. Output transformers.
3. Current measuring circuits.
4. Laser circuit (not in use for Guidance E/C).
5. Microcontroller circuits.
