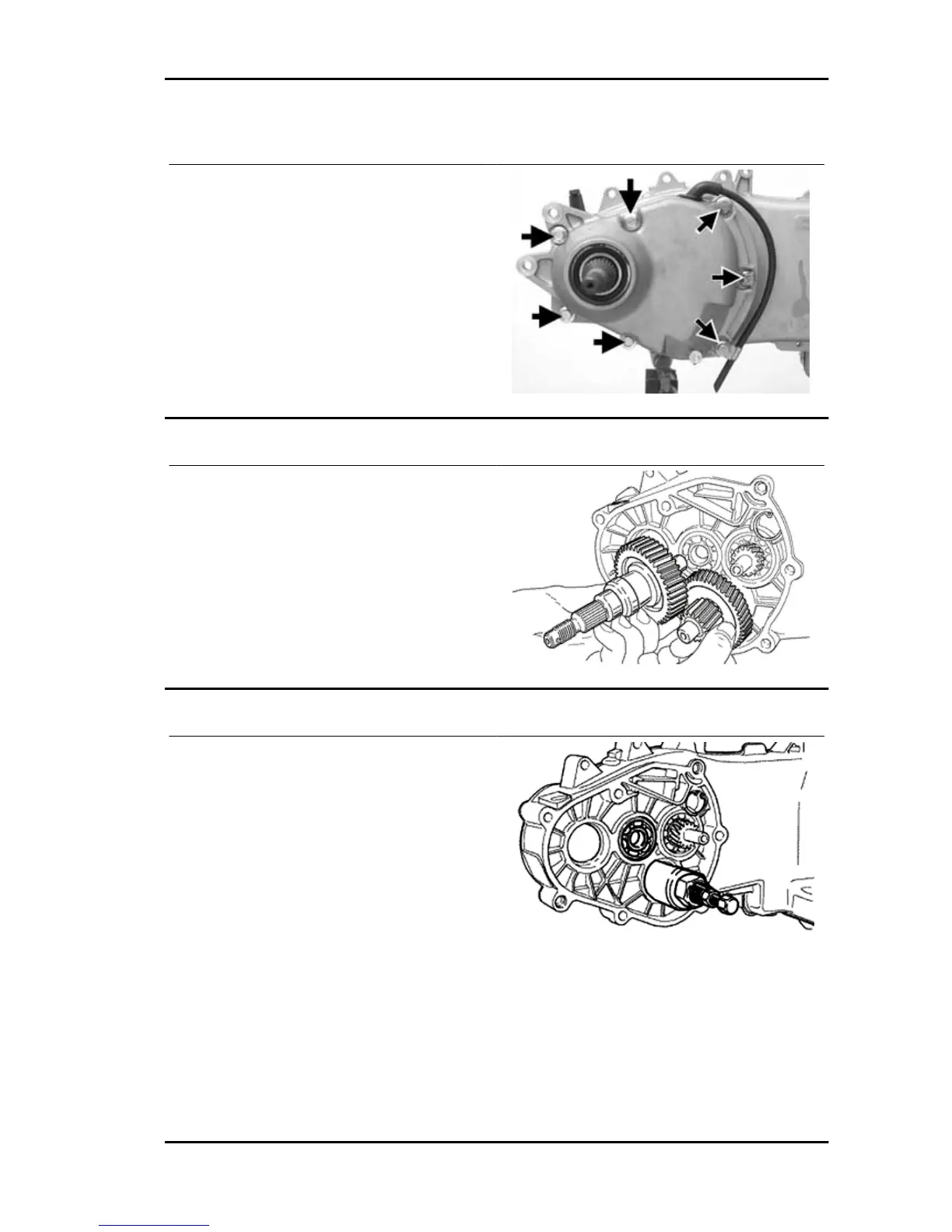

Removing the hub cover
- Empty the rear hub through the oil drainage plug.
- Remove the 7 flanged screws indicated in the
figure.
- Remove the hub cover and its gasket.
Removing the wheel axle
- Remove the wheel axis complete with gear.
- Remove the intermediate gear.
Removing the hub bearings
- Check the state of the bearings being examined
(wear, clearance and noisiness). If faults are de-
tected, do the following.
- Use the specific bearing extractor to remove the
three 15 mm bearings (2 in the crankcase and 1 in
the hub cover).
Specific tooling
001467Y013 Pliers to extract ø 15-mm bearings
X9 Evolution 125 Engine
ENG - 103
