(12) DC9V - DC Power Socket
For AC power adaptor.
Caution! - To avoid damage to the
unit, use only AC
adaptors of proper
voltage. (9VDC out)
Note: If power is supplied from
EXT connector (see item
below) do not connect
AC adapter.
(13) USB - USB mini B Jack
Used for connecting to a computer
or other USB device.
(14) MIDI IN / MIDI OUT - MIDI Jacks
Used for connecting to an external
MIDI device or computer.
(15) LINE OUT - RCA Jacks
For connecting to an external
stereo system.
(16) EXT - External Connector
For connecting to an external system. This connector contains a MIDI interface,
and power input from a compatible external system.

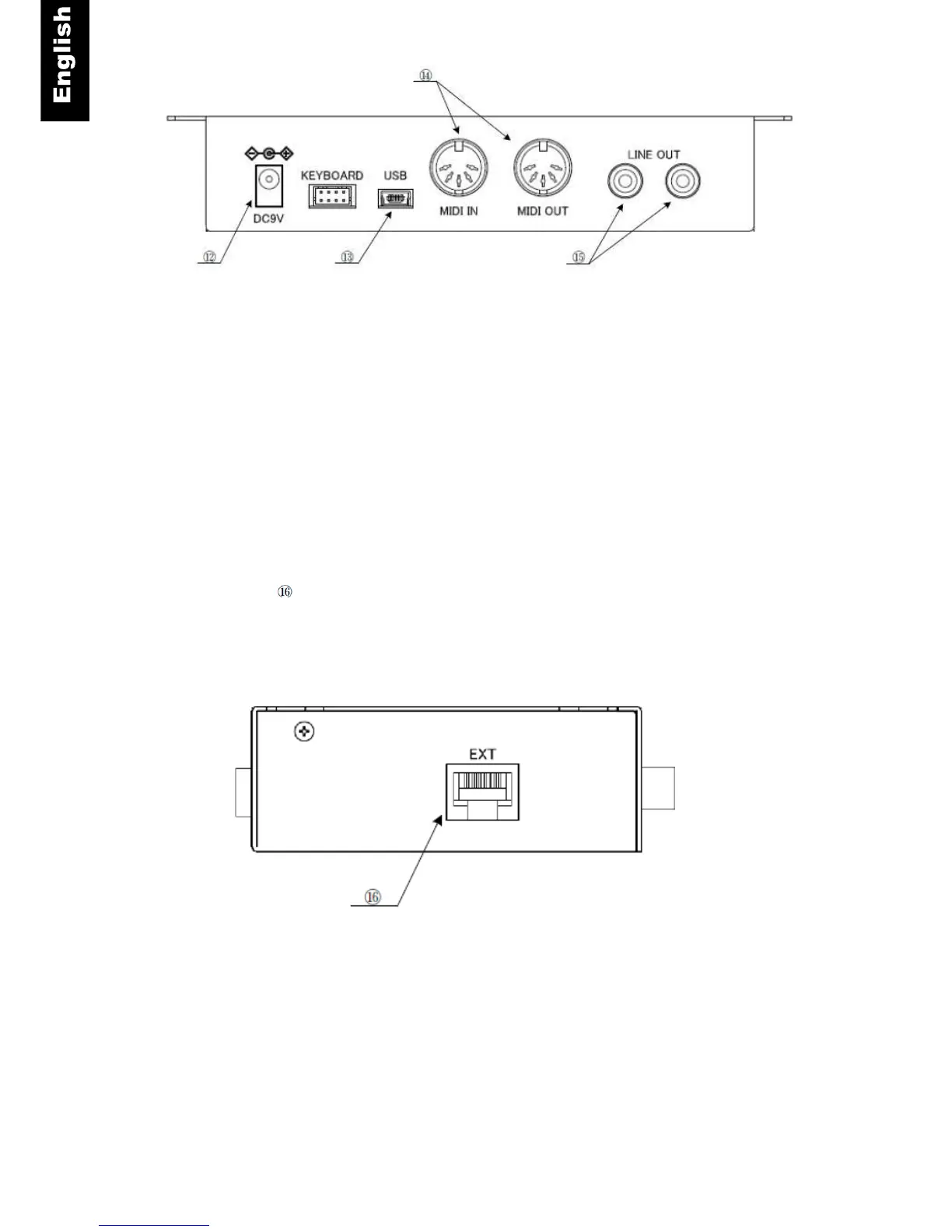

Control Box – Back Panel
