Overview
Operating Manual PSENmlock mini, PSEN mlm 1 sa 1.1/2.1/2.2
1005802-EN-02-Draft
| 11
4 Overview

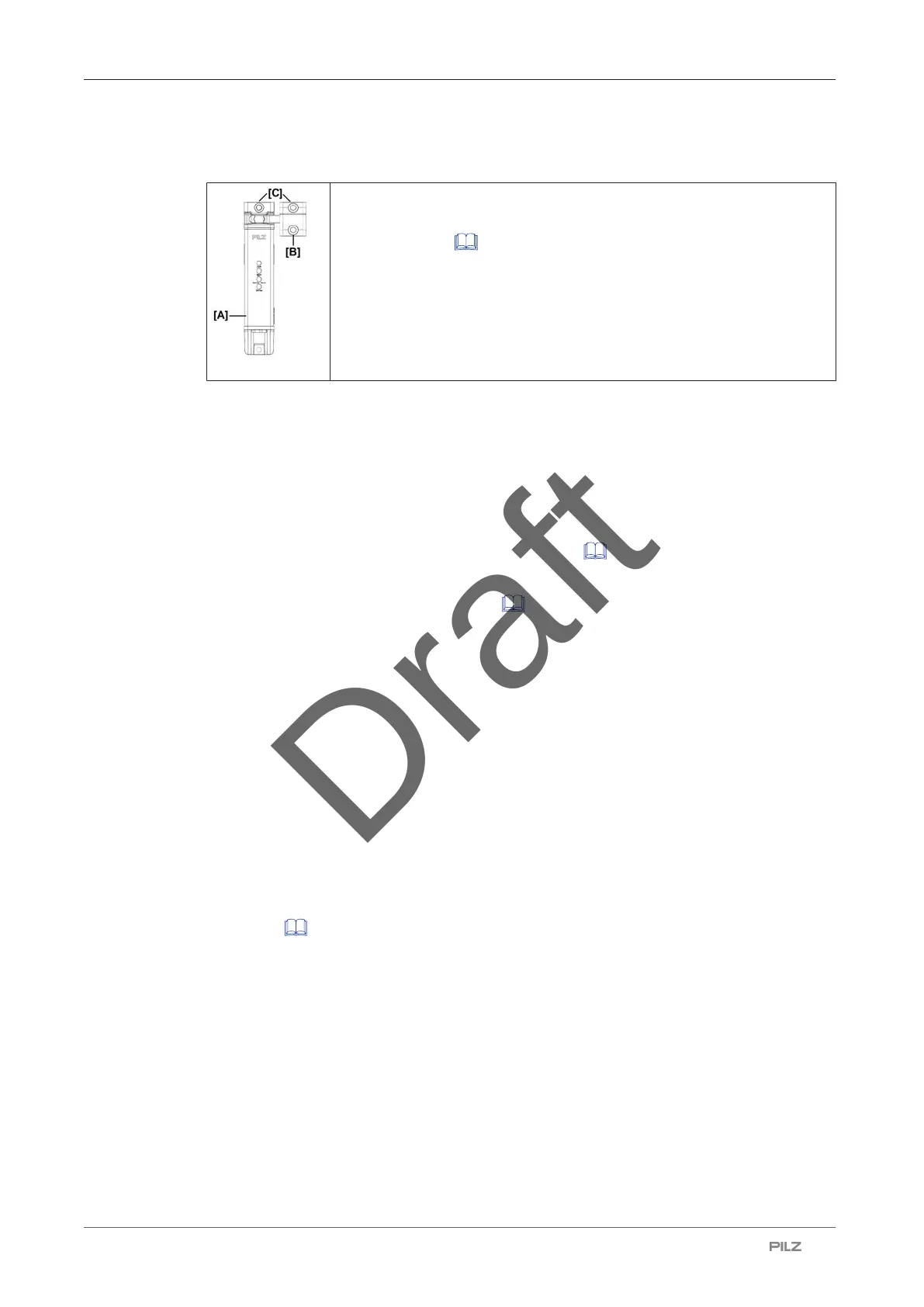

Safety guard locking device PSENmlock mini [C]
(order reference [
74] PSEN mlm x xx x.x unit x)
consists of
a safety switch (PSEN mlm x xx x.x switch) [A]
and an appropriate actuator (PSEN mlm actuator x) [B]
4.1 Device features
} Safe guard locking for small swing gates and sliding gates, as well as flaps and covers
} Safe interlocking (position monitoring)
} Transponder technology
} 2 safety outputs
} 2 safety outputs for the solenoids Series connection [
33]
} 2 safety inputs to activate the solenoid
} 2 safety inputs for the series connection [
33]
} Safety Device Diagnostics (SDD)
– Safety Device Diagnostics can be used to retrieve sensor information on one or more
sensors, to perform actions and to read and write configuration parameters.
– Manipulation protection in accordance with ISO 14119 is possible by verifying the
short name of the actuator through the controller via SDD communication
} Diagnostic input
} Signal output/diagnostic output
} Guard locking element keeps the safety gate from being opened unintentionally
} Auxiliary release for opening the safety gate
} Suitable for left and right hinged safety gates
} Pilz coding type
Information about the Pilz coding types can be found under Teaching in the
actuator [
39].
– PSEN mlm x sa 1.1: coded
– PSEN mlm x sa 2.1: fully coded
– PSEN mlm x sa 2.2: uniquely coded
} M12, 12-pin male connector
} LEDs:
– Lock: Status of guard locking
– Input: Status of safety inputs S11 and S21
– Safety gate: Status of actuator
– Device: Supply voltage/fault
