9.5 Installation safety switch
} In order to attach the safety switch at the three possible mounting positions, the foot
bracket can be rotated.
As a result, the safety switch can be mounted on the frames of left and right-hinged slid-
ing gates and swing gates. If necessary use a mounting plate or mounting bracket (see
Order reference: Accessories.
Different holding forces arise, based on the installation.

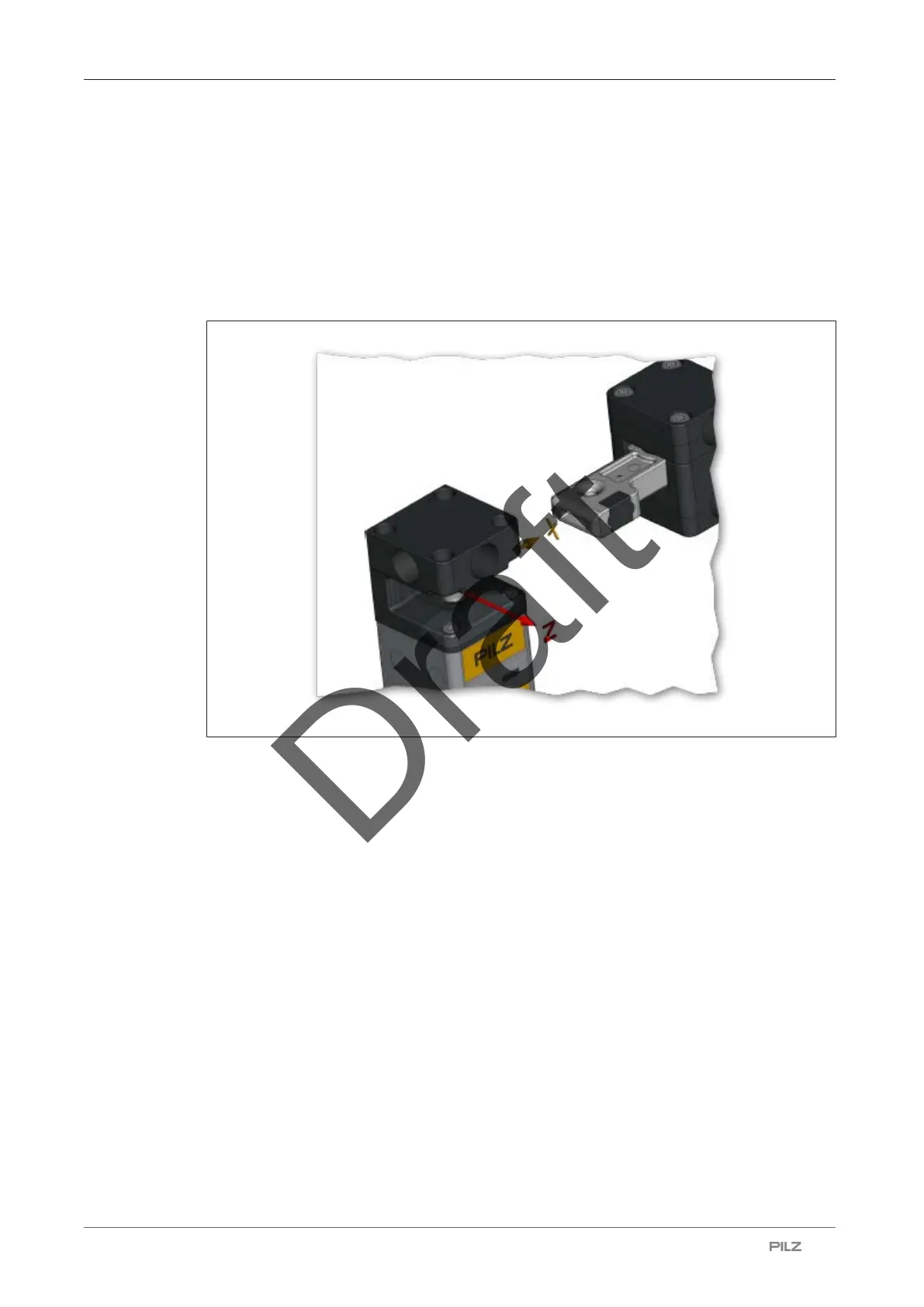

Fig.: Holding force directions
} Holding force F
Zh
in Z-direction: 1500 N
} Holding force F
Zh
in X-direction: 1950 N
