10.2 Fault indicator PSEN mlm

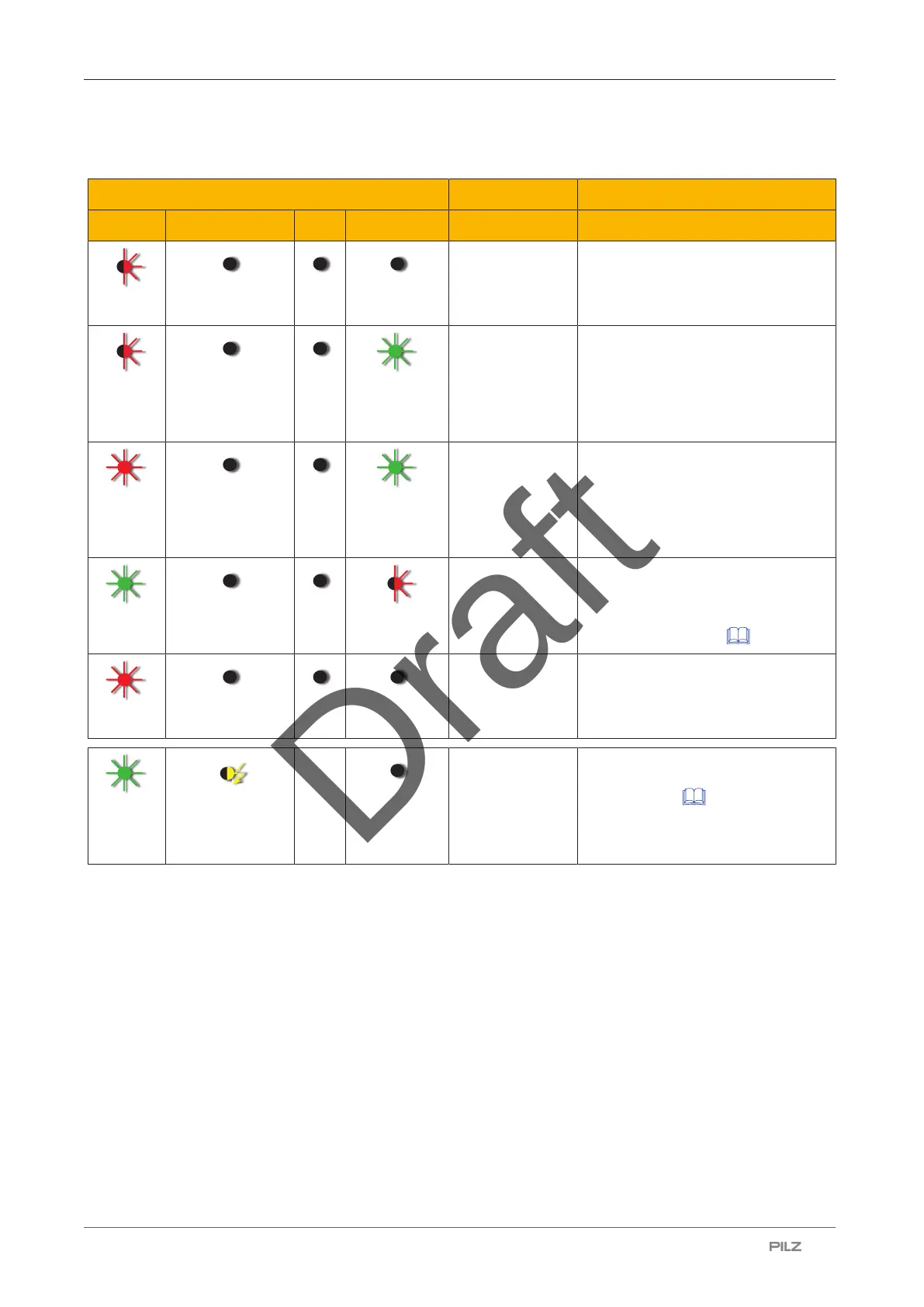

LED status Switch status Remedy / measure
Device Safety gate Input Lock
Red
Safety outputs in
fault condition
Check the wiring and switch the
supply voltage off and then on
again.
Red Green
Safety outputs in
fault condition
Guard locking
can be deactiv-
ated.
Check the wiring and switch the
supply voltage off and then on
again.
Red Green
Safety outputs in
fault condition
Guard locking
cannot be deac-
tivated.
Change the safety switch.
Green Red
Auxiliary release
} Auxiliary release: Turn back the
auxiliary release screw and then
switch the supply voltage on (see
Recommissioning [
26]).
Red
Device is in error
state.
Change the safety switch.
Green
Yellow
Dis-
play
not
defin-
itive
Wrong actuator Only use approved combinations
(see Approved
combinations [
12])
