Installation
Operating Manual PSENmlock mini, PSEN mlm 1 sa 1.1/2.1/2.2
1005802-EN-02-Draft
| 51

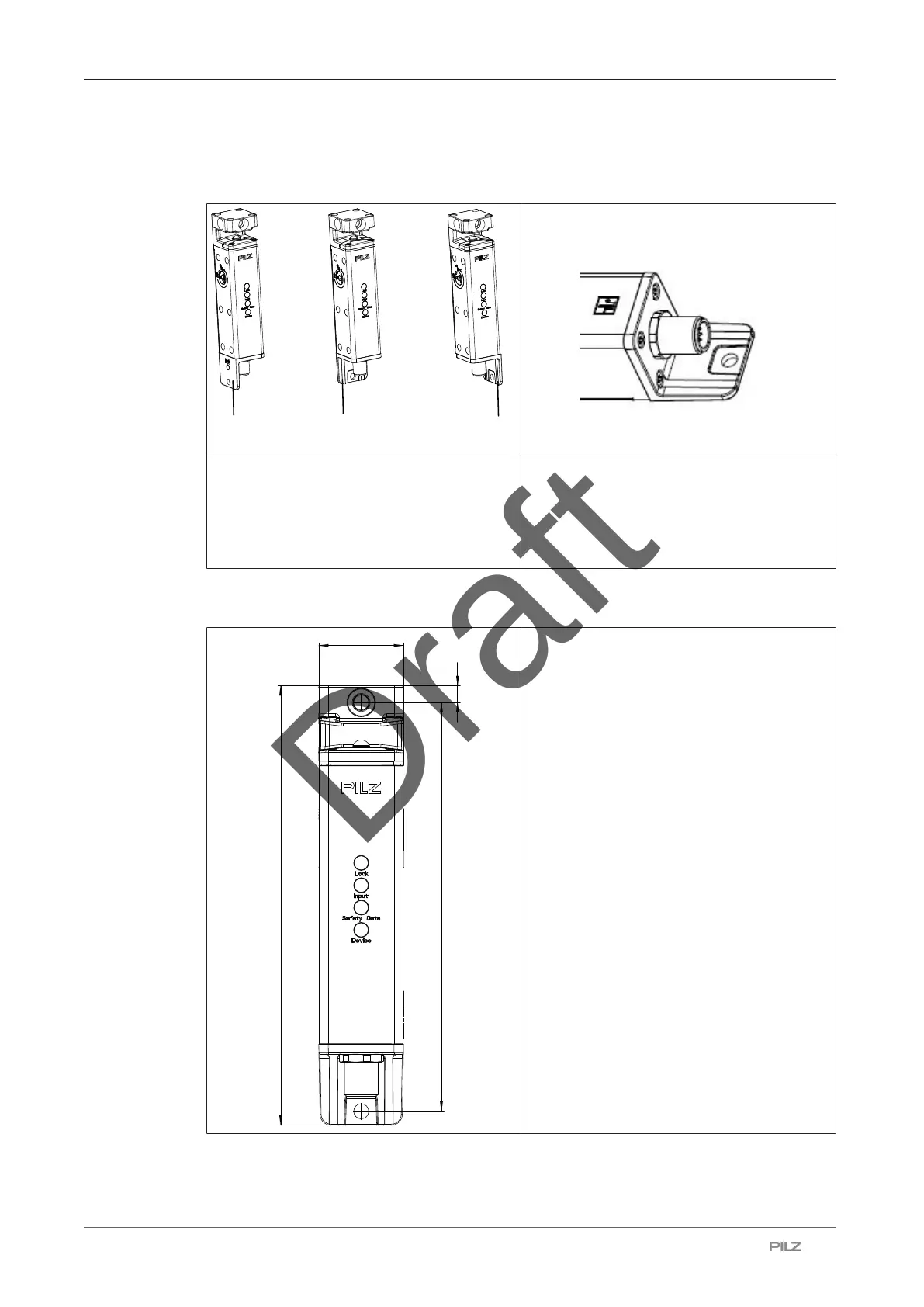

The safety switch foot bracket can be rotated.
Adjust the foot bracket to the required mounting position.
[A] [B]
[C]
[A] Foot bracket mounting for left hinge
[B] Foot bracket mounting for front attach-
ment
[C] Foot bracket mounting for right hinge
To rotate the foot bracket to the required po-
sition, loosen the four screws and then
fasten them again.
Fasten the four screws with a torque of 0.7
Nm.
9.5.1 Mounting of safety switch using two screws
30.4
6
146.5
157.5
Provide the mounting surface with tapped
holes as indicated.
1. Attach the safety switch to the swing gate/sliding gate/flap/cover.
2. Use two M5 screws to fix the safety switch to the mounting surface.
Draft
