9.7.1 Mounting guidelines for internally attached auxiliary release
Further information is available under Auxiliary release [
25].

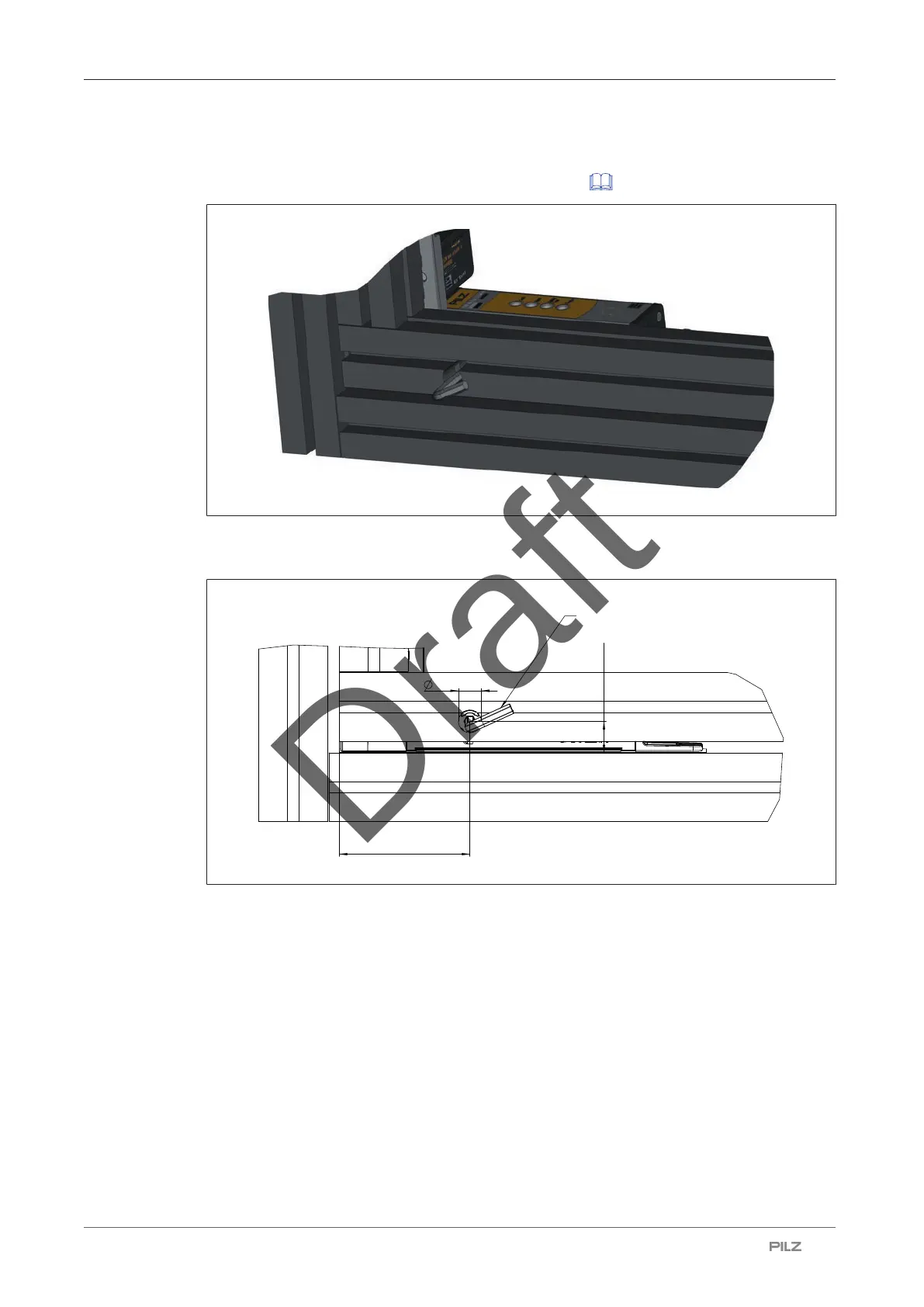

Fig.: Internally attached auxiliary release reachable with an Allen key (SW4|) via a suitable opening
13.7
(ca. 57)
10
[1]
Fig.: Dimensions for reaching the auxiliary release
Legend
[1] Allen key (SW4)
