Installation
Operating Manual PSENmlock mini, PSEN mlm 1 sa 1.1/2.1/2.2
1005802-EN-02-Draft
| 44
9.4 PSEN mlm mounting types
The PSENmlock mini can be mounted as an internal or external attachment. External at-
tachment is the preferred mounting type.
9.4.1 External attachment with actuator a
The following mounting examples are based on a 30 x 30 mm profile. With other profiles,
mounting plates are required for safety switches and actuators.

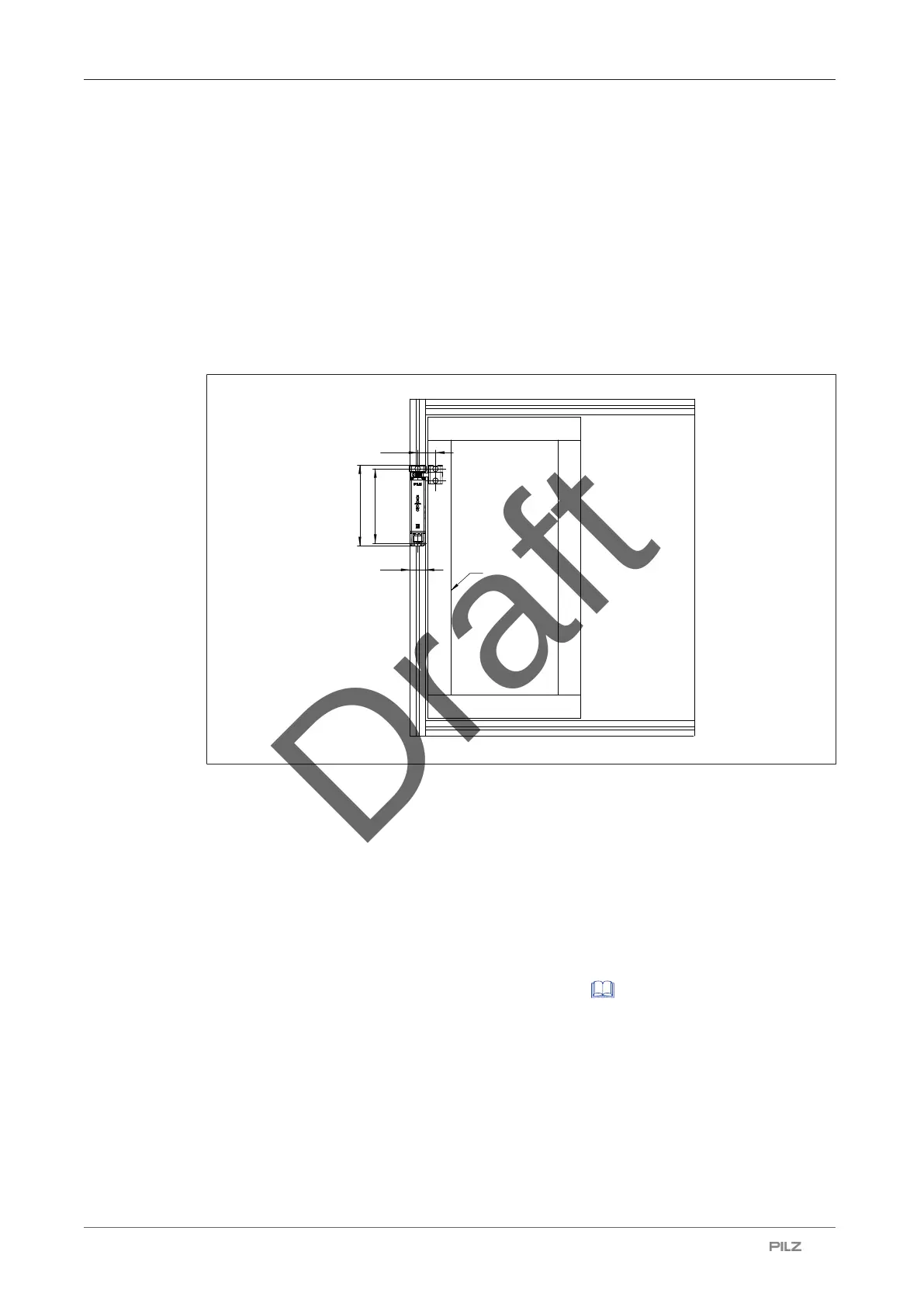

9.4.1.1 Installation on sliding gate
Legend
[1] Sliding gate
} Use two screws to mount the safety switch on the frame.
a Screw for the actuator: M5 cylinder head screw, 30 mm
a Screw for the male connector: M5 cylinder head screw, 8/10 mm
} Use two 30 mm M5 cylinder head screws to attach the actuator to the gate.
9.4.1.2 Installation on swing gate
Note the minimum gate radius R, see Technical details [
63].
