Installation
Operating Manual PSENmlock mini, PSEN mlm 1 sa 1.1/2.1/2.2
1005802-EN-02-Draft
| 52

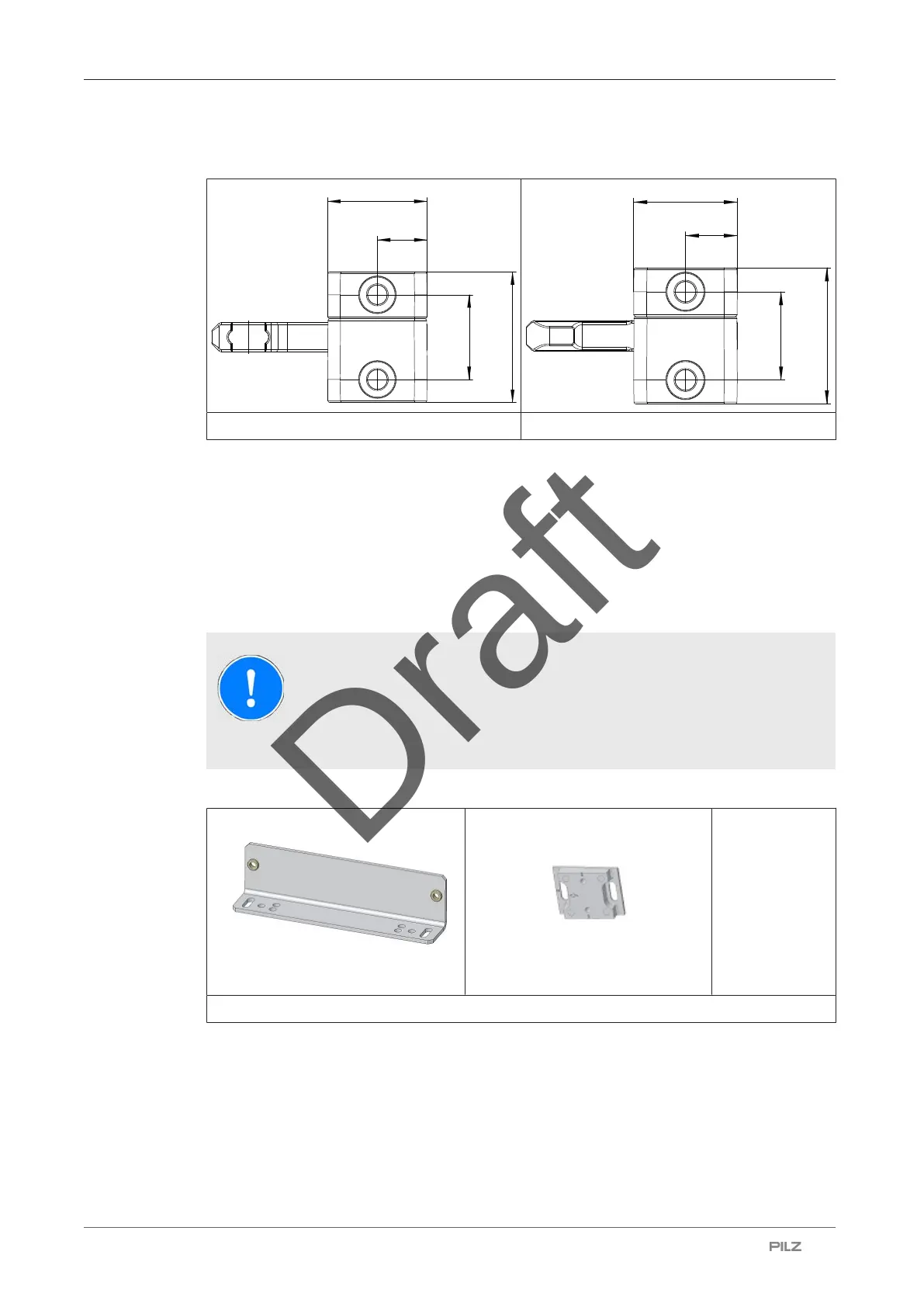

9.6 Actuator installation
23
35.5
13.5
27
13.5
27
35.5
23
Actuator a Actuator b
1. Attach the actuator a/b to the gate/flap/cover.
2. Use two M5 screws to fix the actuator a/b to the mounting surface.
9.7 Internal attachment: Mounting of safety switch and actuator
using mounting set 1 (optional)
Depending on the application, mounting plates/mounting brackets may be required for in-
ternal attachment of the safety switch with actuator b.
NOTICE
The PSENmlmmountingset1 listed under accessories, material number
6K000021, is suitable for internal attachment of the safety switch parallel to
the rotational axis.
4 x
M5 screws
1 x M5 one-way
screw
(optional)
for mounting the
actuator
PSENmlmmountingset1 (material number 6K000021)
