Operation
Operating Manual PSENmlock mini, PSEN mlm 1 sa 1.1/2.1/2.2
1005802-EN-02-Draft
| 57

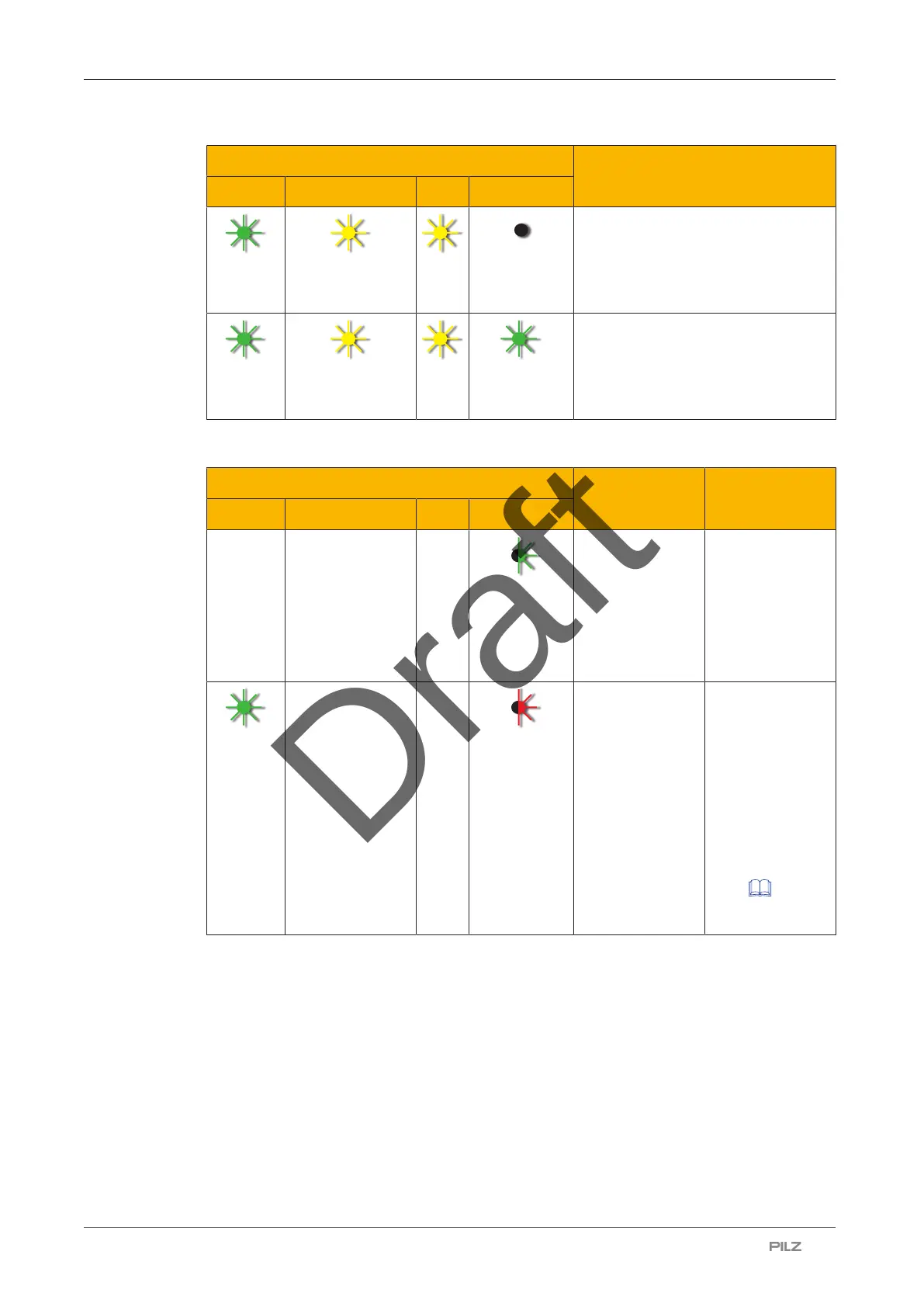

LED status Switch status
Device Safety Gate Input Lock
Green Yellow Yel-
low
Safety gate closed, actuator detec-
ted, guard locking deactivated,
safety inputs S11 and S21 are high
Green Yellow Yel-
low
Green
Safety gate closed, actuator detec-
ted, guard locking activated, safety
inputs S11 and S21 are high
Warnings
LED status Switch status Remedy / meas-
ure
Device Safety Gate Input Lock
Display
not defin-
itive
Display not defin-
itive
Dis-
play
not
defin-
itive
Green
Guard locking
cannot be activ-
ated/deactivated
Check the align-
ment of the actu-
ator to the safety
switch.
Activate/deactiv-
ate guard locking
again.
Green
Display not defin-
itive
Dis-
play
not
defin-
itive
Red
Auxiliary release
} Auxiliary re-
lease: Turn
back the auxili-
ary release
screw and then
recommission
the safety
switch (see
Recommissioni
ng [
26])
