116

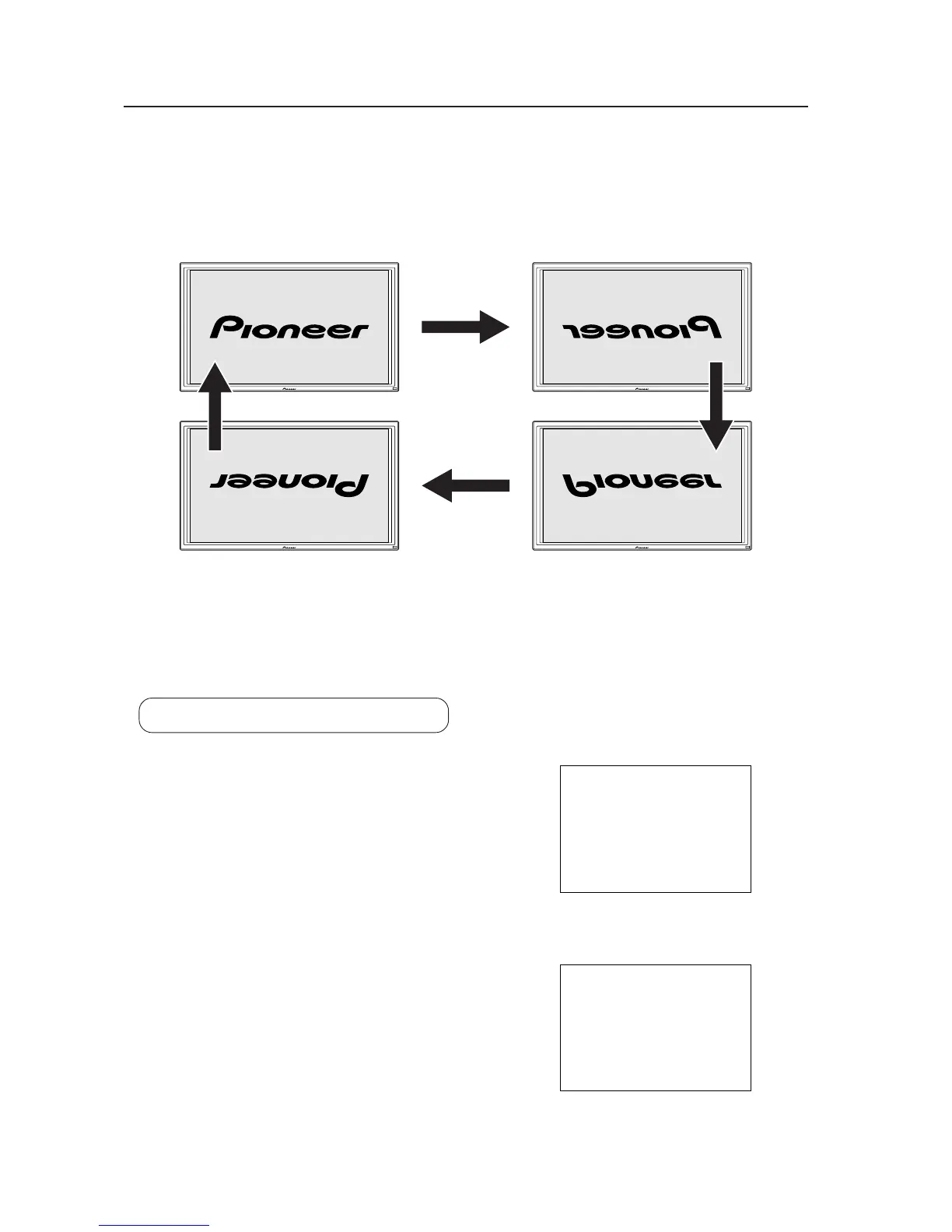

6) Setting the mirror mode
This function permits displayed images to be reversed in any fashion.
Normal playback = MIRROR MODE: OFF
Left/right reversed playback = MIRROR MODE: X
Up/down reversed playback = MIRROR MODE: Y
Up/down/left/right reversed playback = MIRROR MODE: XY
MIRROR MODE: XY is intended for smart cable arrangement, making it possible to draw bundled cables upward
(towards the ceiling) when this display is mounted upside-down using the ceiling suspension hardware PDK-5002.
(NOTE) In using the PDK-5002 mounting hardware, observe the operating temperature restrictions and other
limitations specified in section 4.4, “Plasma Display Ceiling Suspension Hardware: PDK-5002”.
Factory preset: MIRROR MODE: OFF
1 Enter the integrator mode (refer to section 5.4.1, “About
the integrator mode”).
The ID number of the unit of adjustment items will be indicated
in the upper right corner of the screen, where “– –” is displayed
in the illustration.
Select OPTION 1.
2 Move the cursor to “MIRROR MODE” and change the mode
with the SET button.
Pressing the “SET” button toggles the mode from “Off”
= “X” = “Y” = “XY” = then back to “Off” and so on.
MIRROR MODE applies to all inputs (INPUTs 1 to 4).
Select EXIT in screen 2 to return to screen 1.
Integrator Mode
OPTION 1
OPTION 2
G LEVEL
:
128
B LEVEL
:
128
V. SIZE
:
128
CLK FRQ :
– – –
CLK PHS :
– – –
DEFAULT
R LEVEL
:
128
MENU : MENU OFF
EXIT
DEFAULT
– –
3MIRROR MODE : OFF
BRIGHT ENHANCE
VIDEO : OFF
COLOR MODE : 1
PC : OFF
WHITE BAL.
MENU
SCREEN
SIDE MASK
3OPTION 1
OPTION 2
SUB VOLUME
G LEVEL
:
128
B LEVEL
:
128
V. SIZE
:
128
CLK FRQ :
– – –
CLK PHS :
– – –
DEFAULT
R LEVEL
:
128
MENU : MENU OFF
5∞ 3 : SELECT
ALL DEFAULT
– –
Normal playback
[MIRROR MODE: OFF]
Left/right
reversed playback
[MIRROR MODE: X]
Up/down
reversed playback
[MIRROR MODE: Y]
Up/down/left/right
reversed playback
[MIRROR MODE: XY]
]
Screen 1
]
Screen 2
