58
(NOTE 1) Tighten all the mount screws at the specified points.
(NOTE 2) The mounting screws must be strong enough to support the weight of the mounting hardware.
Pattern
Ceiling flange COMP
Flat washer
[WC100FZK]
Spring washer
[WS100FZK]
Hexagonal socket head bolt
(M10 x 85)
[SME100H850FZK]
Hexagonal socket head bolt
(M8 x 75)
[SME100850FZK]
Spring washer
[WS80FZK]
Flat washer
[WC80FZK]
Monitor frame
Cable holes
Spacer
Post COMP
Center rod
Monitor bracket
Hole cover
Used to hide holes
in the ceiling.

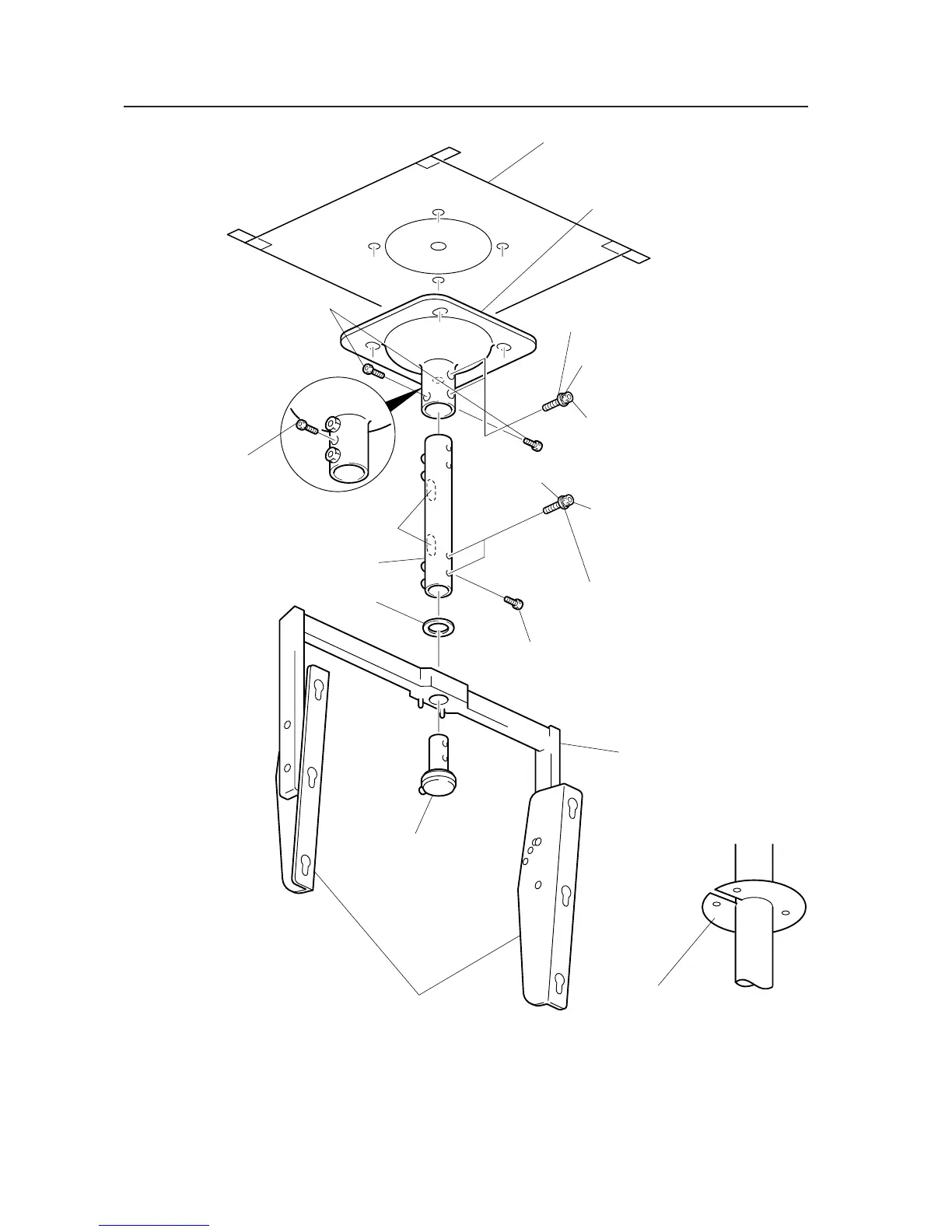

Plasma Display Ceiling Suspension Hardware (one-side type): PDK-5002
Hexagonal socket head bolt
(for tilt angle adjustment)
(M6 x 10)
[SME60H100FZK]
Hexagonal socket head bolt
(For firm gripping)
(M6 x 10)
[SME60H100FZK]
Hexagonal socket head bolt
(For firm gripping)
(M5 x 16)
[SME50H160FZK]
