62
608
(Special eye bolt mounting pitch)
455
63
33
798
828
1218
8-
φ
9
20
700
528
148.5
660
450
410
40
714
83
PDP Bracket: PDK-5005

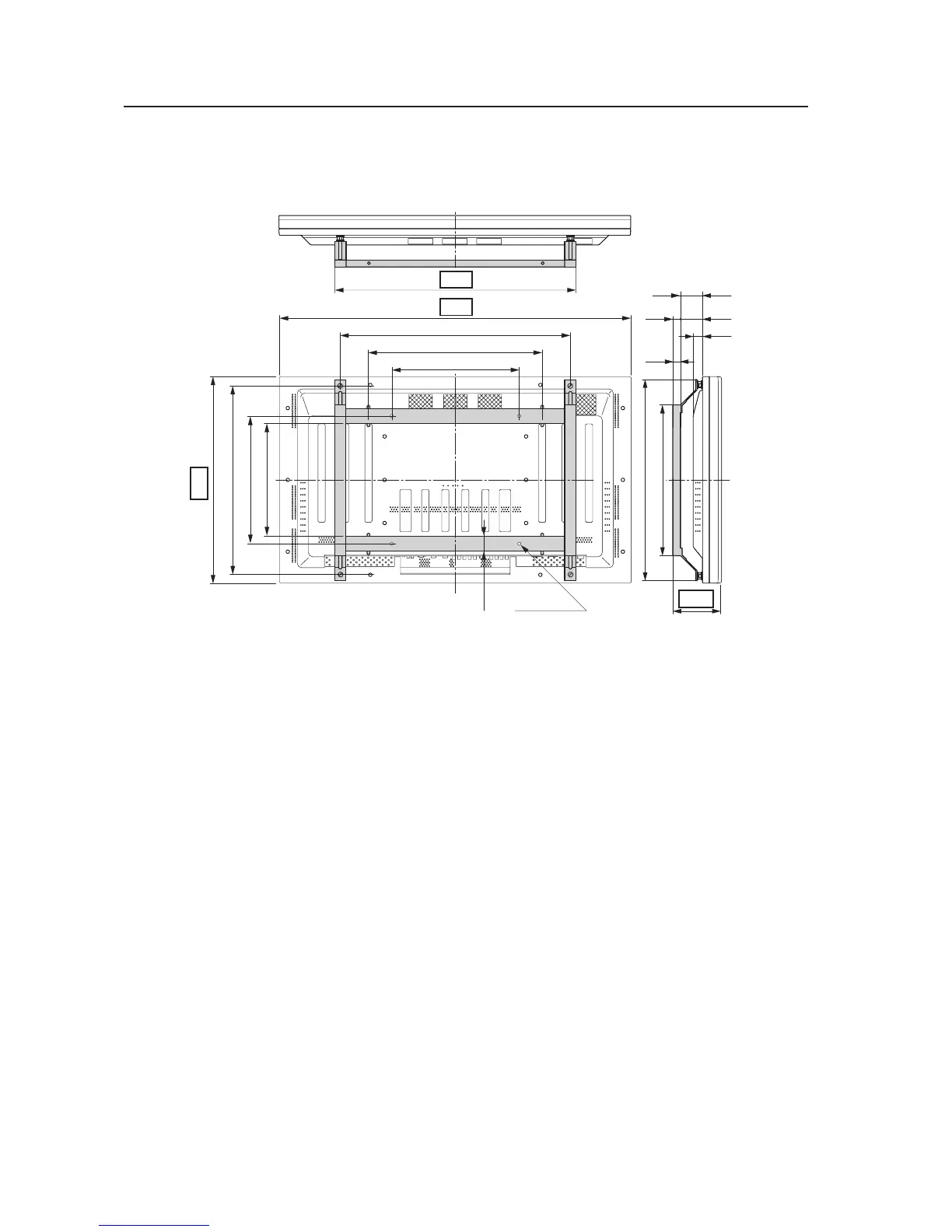

4.6.2 External Dimensions
Units: mm
The mounting format is symmetrical from left to right and from top to bottom.
