18
Installation Conditions
3.2 Installation Conditions
3.2.1 Heat dissipation

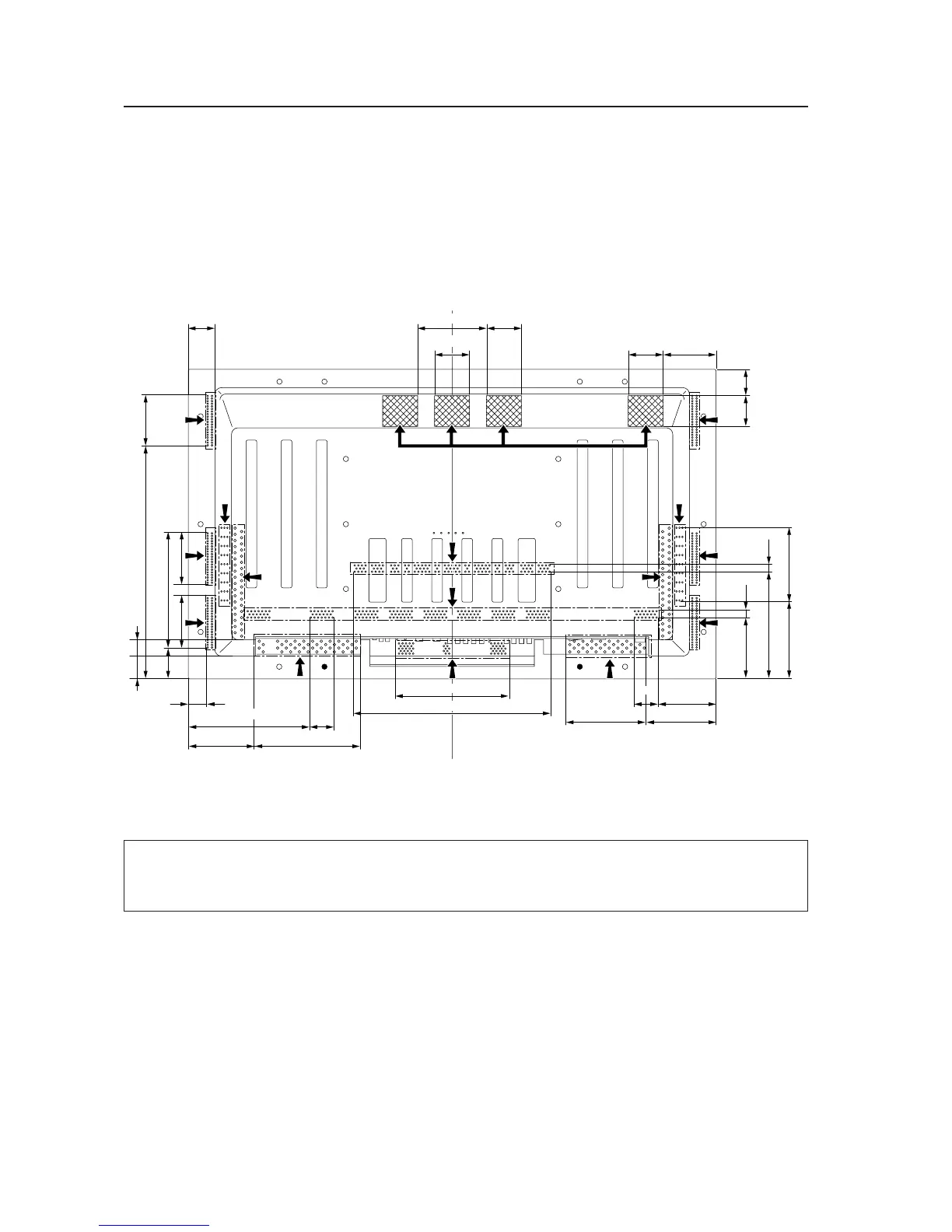

This unit has openings for effective ventilation at locations marked by arrows in the illustration below. To allow proper
dissipation of heat from the unit, avoid blocking or covering any of these openings.
Air flow through the openings: All four fans draw off hot air from the unit. All openings not assisted by fans serve as
air inlets. If the unit is hung from or embedded into a wall, special operating temperature limits and other limitations
may apply. Refer to 3.4 “Special Installation”.
Fan (4 in number)
(Unit : mm)
537.5
72.5
45
137.5
80
80 128
72
59
19
19
247.5
142.5
53
269
119
53
60
119
119
38
54
160 235
190
160
183
168
282.5 (one side only)
157
80
453
256
To Next Page
