53
Table-top Stand: PDK-5001

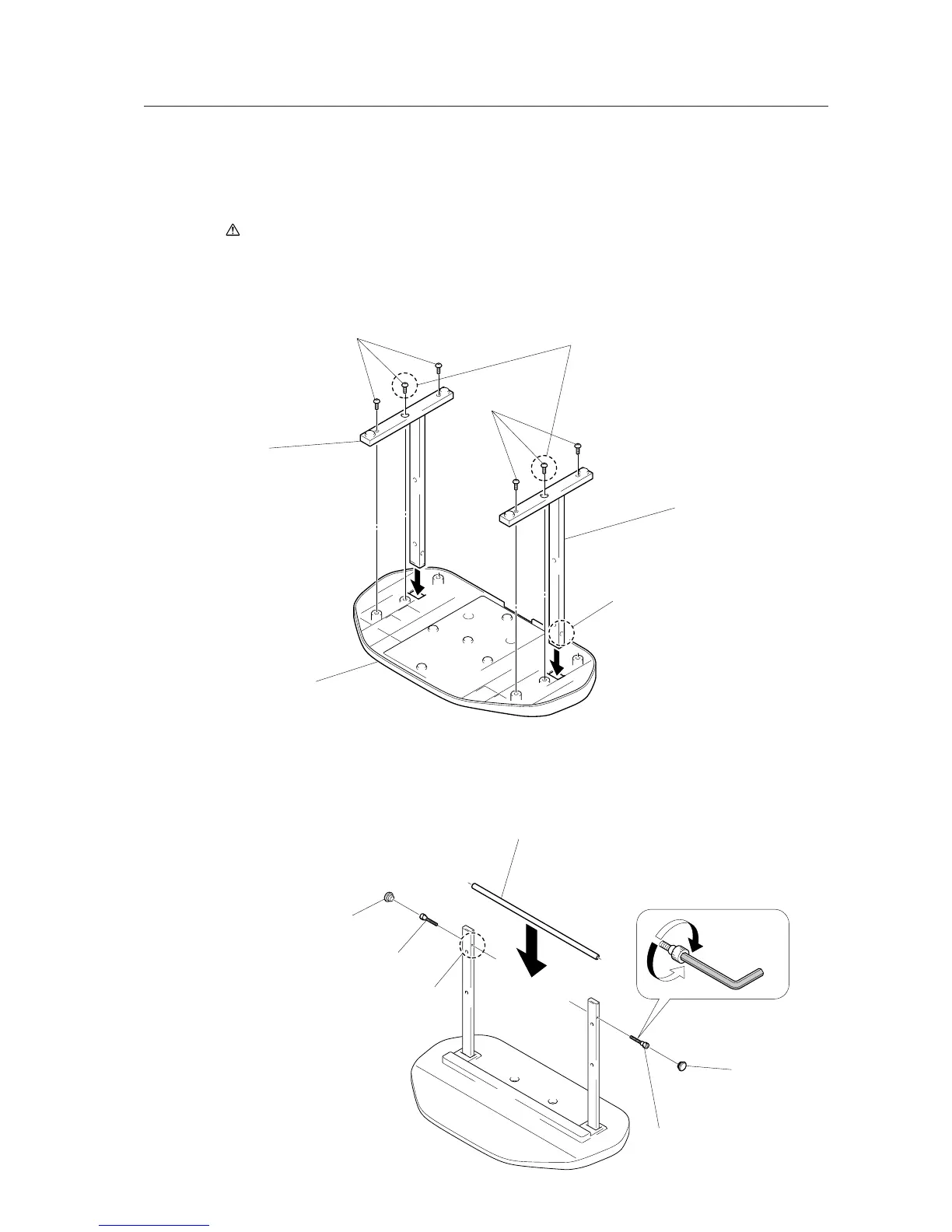

4.4.4 Assembling the stand
1) Assembling Procedure 1
1 Place the base upside-down.
2 Insert the left and right stand pipes into the base.
(CAUTION
: Insert pipes so that they face in the proper direction.)
3 Fasten the pipes to the base with the supplied screws.
(Tighten the central screws first.)
Stand pipe, L
2) Assembly procedure 2
1 Align the vertical pipe with openings in the left and right stand pipes.
2 Tighten bolts with the supplied hexagonal wrench to secure the vertical pipe.
3 Insert caps into the openings in the left and right stand pipes.
Screw (4 x 12)
Screw (4 x 12)
* Insert the pipe so that the
larger openings face outward.
Base
Vertical pipe
Hole
Bolt (M6 x 40)
Bolt (M6 x 40)
Cap
Cap
Hexagonal
wrench
* Tighten these screws first.
Stand pipe, R
To Next Page
