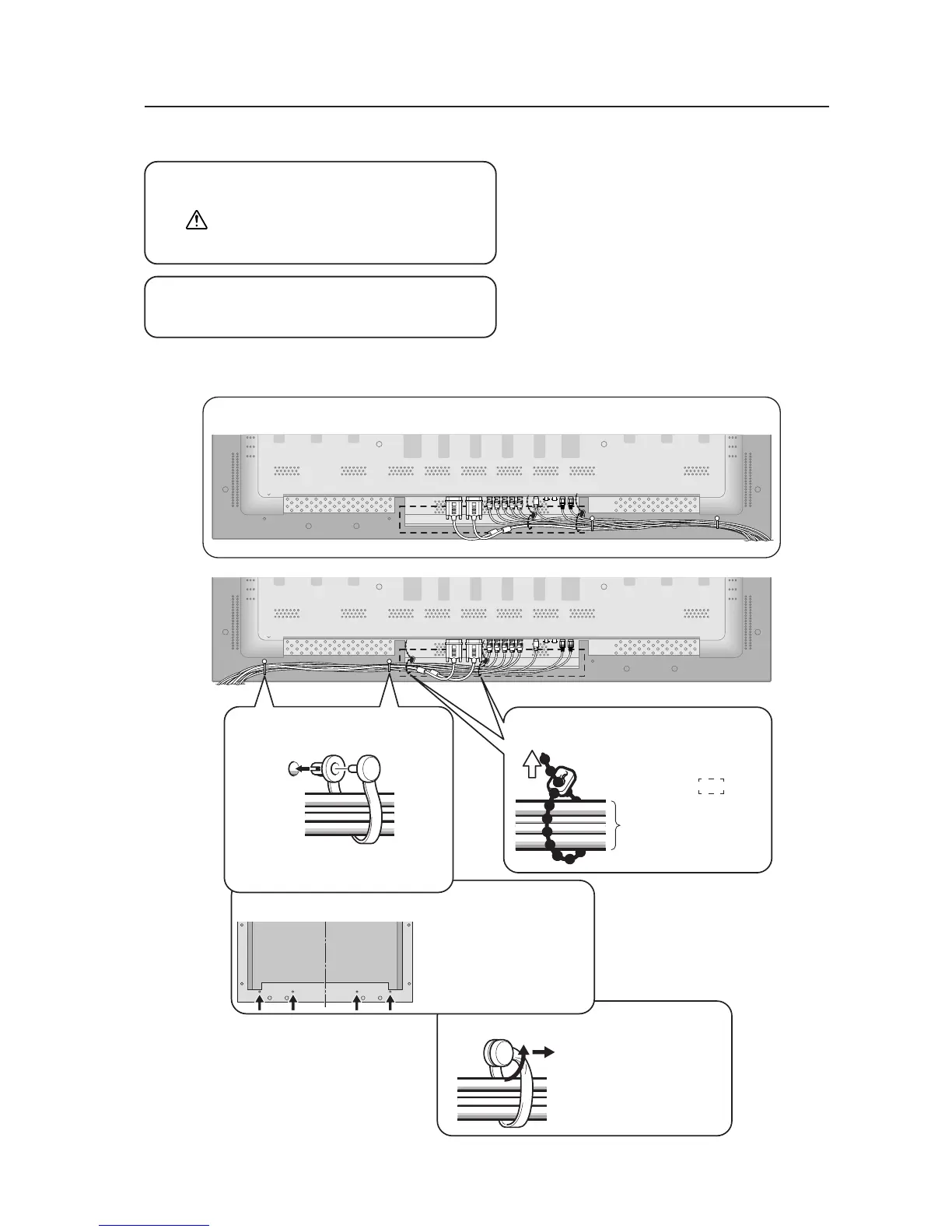

4) Arranging and securing cables with speed clamps and bead bands
Cables may be drawn around to the right, viewed from this side.
1Secure cables with speed
clamps.
1
2
Insert part 2 into an opening in the rear
cover, then insert part 1, as shown.
Cords
Fastening points for speed clamps
Bundled cables can be drawn to
the left or the right.
Depending on specific
requirements, you may use the
four opening indicated by solid
circles ¶.
How to unlock the speed clamp
Use a pair of pliers to twist
the clamp by at least a
quarter-turn and pull outward.
Remember that this procedure
entails risk of damaging the
clamp.
* Display viewed from the rear.
Fasten cables using the supplied speed clamps.
Remember that speed clamps are not easily
removed, once fastened.
1
Secure cables with the supplied bead bands.
2
Installation Procedures
2Bundle cables using bead bands.
Use the head band at
two positions within the
indicated range .
To Next Page
