13
PoB
Nomes dos componentes
04
Português
1
Terminal CONTROL IN
2
Terminal CONTROL OUT
3
Terminal RS-232C (usado na configuração de
fábrica)
4
Terminais INPUT 3 (AUDIO)
5
Terminal INPUT 3 (VIDEO)
6
Terminal INPUT 3 (S-VIDEO)
7
Terminais MONITOR OUT (AUDIO)
8
Terminal MONITOR OUT (VIDEO)
9
Terminal ANT (antena) IN
10
Terminal de saída SUB WOOFER
11
Terminais INPUT 2 (AUDIO)
12
Terminais INPUT 1 (AUDIO)
13
Terminal INPUT 1 (VIDEO)
14
Terminal INPUT 2 (VIDEO)
15
Terminal INPUT 1 (S-VIDEO)
16
Terminal INPUT 2 (S-VIDEO)
17
Terminais INPUT 1
(COMPONENTE VIDEO: Y, C
B
/P
B
, C
R
/P
R
)
18
Terminais INPUT 2
(COMPONENTE VIDEO: Y, C
B
/P
B
, C
R
/P
R
)
19
Terminal INPUT 3 (HDMI)
20
Terminal SYSTEM CABLE (PRETO)
21
Terminal SYSTEM CABLE (BRANCO)
22
Terminal AC IN
IN OUT
CONTROL
ANT IN
SUB
WOOFER
INPUT 3
INPUT 2
SERVICE ONLY
S-VIDEOVIDEO
YC
B/PB CR/PR
R-AUDIO-L
INPUT 1
COMPONENT VIDEO
MONITOR OUT
VIDEOR-AUDIO-L
INPUT 3
HDMI
BLACK WHITE
AC IN
SYSTEM CABLE
1
9 12 13 14 15 16 17 18 19 20 21 2210 11
2 3 4 5 6 7 8

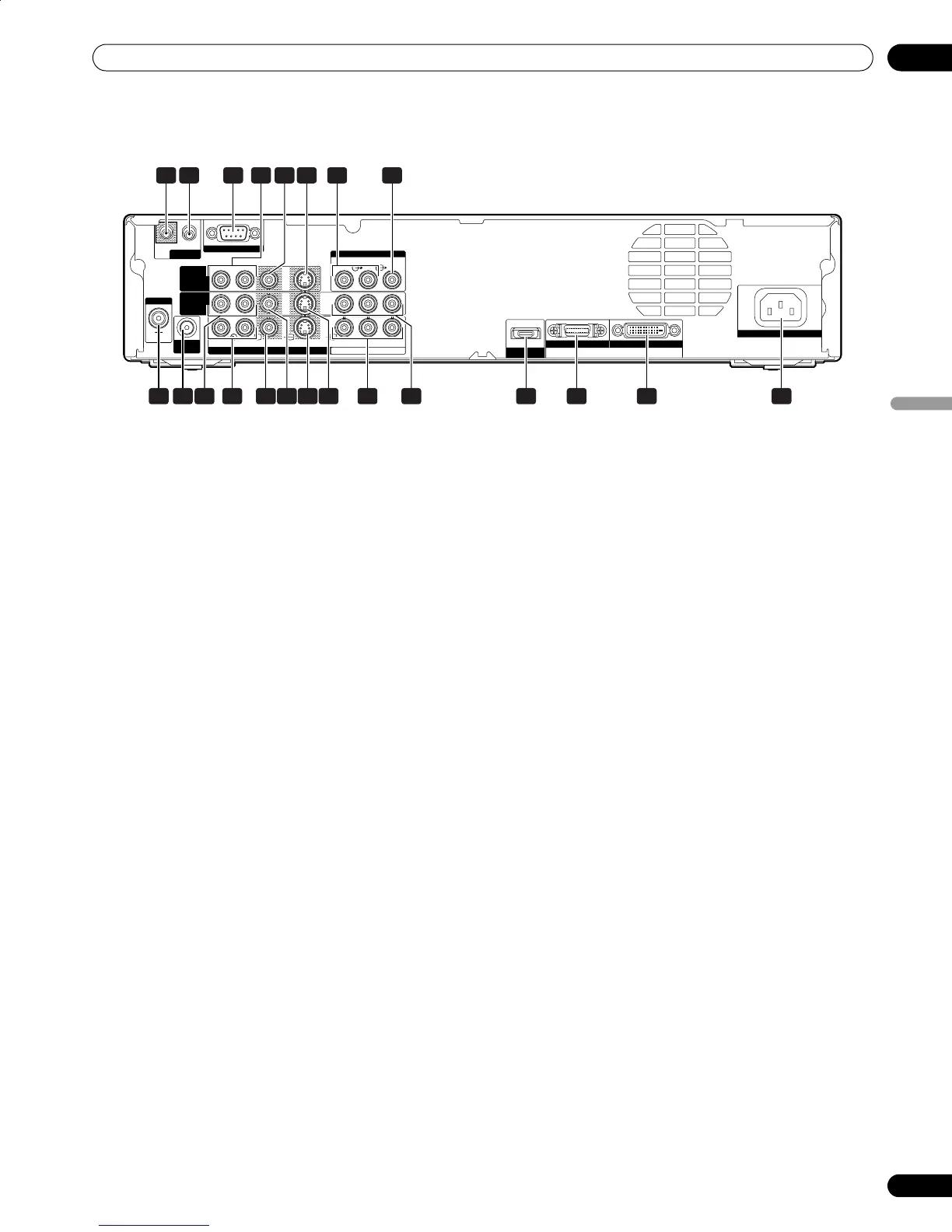

Vista traseira
PDP506HDG_PoB.book Page 13 Friday, June 24, 2005 6:53 PM
