12
En

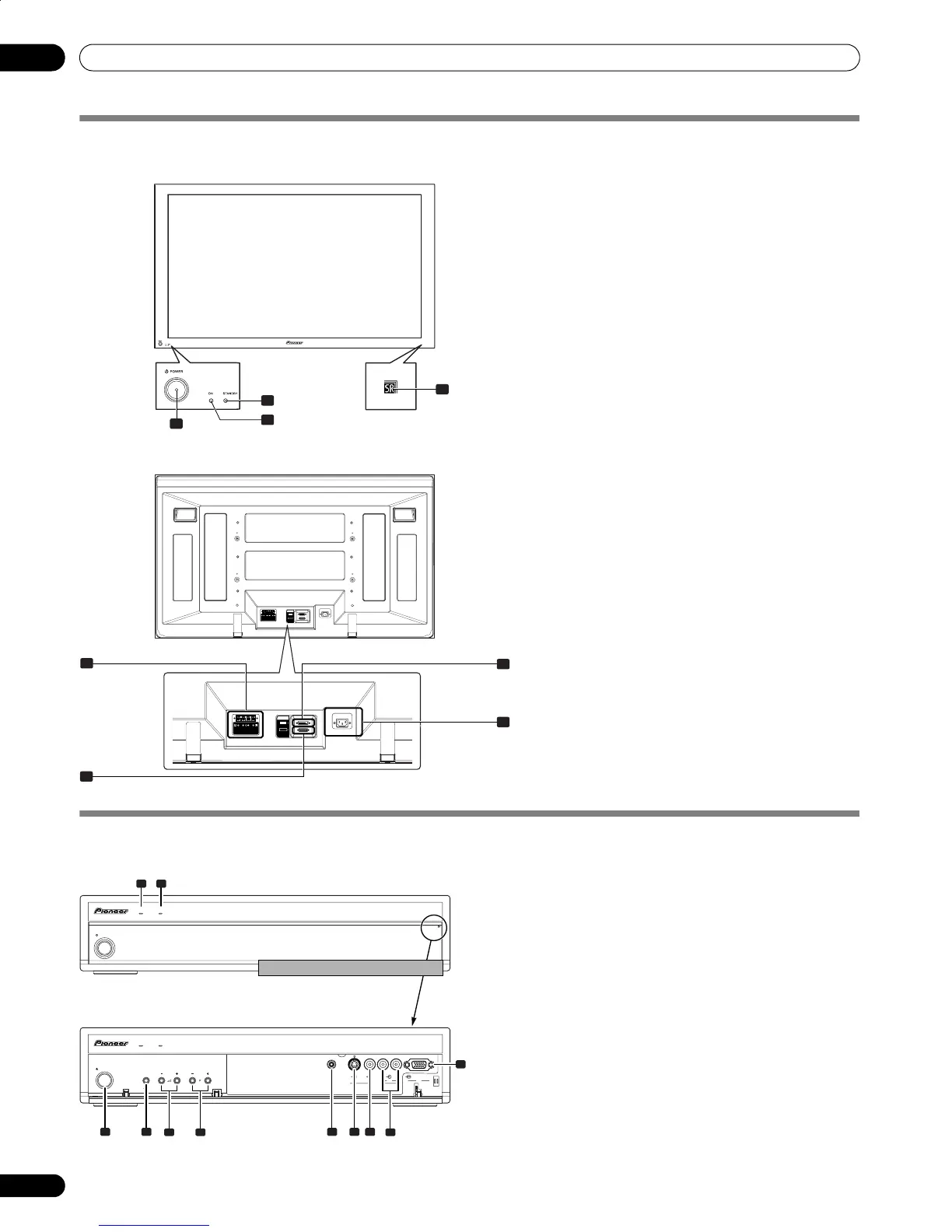

Part Names
04
Part Names
Plasma Display
Media Receiver
4
2
3
1
SYSTEM
CABLE
WHITE
BLACK
SYSTEM
CABLE
WHITE
BLACK
5
6
7
8
Front view
1POWER
button
2
STANDBY indicator
3
POWER ON indicator
4
Remote control sensor
5
SPEAKER (right/left) terminals
6
SYSTEM CABLE terminal (BLACK)
7
SYSTEM CABLE terminal (WHITE)
8
AC IN terminal
Rear view
STANDBYON
STANDBY/ON
PULL
OPEN
STANDBYON
STANDBY/ON
INPUT VOLUME CHANNEL
ANALOG RGB
PC
PC
INPUT 5
S-VIDEOPHONES VIDEO AUDIOLR
3
4 7 8 9
11
5 6 10
1 2
Front view
1
POWER ON indicator
2
STANDBY indicator
3 STANDBY/ON
button
4 INPUT
button
5 VOLUME +/–
buttons
6 CHANNEL +/–
buttons
7
PHONES output terminal
8
INPUT 4 terminal (S-VIDEO)
9
INPUT 4 terminal (VIDEO)
10
INPUT 4/PC INPUT terminals
(AUDIO)
11
PC INPUT terminal (ANALOG RGB)
Pull this section to open the door.
PDP506HDG.book Page 12 Monday, June 27, 2005 12:57 PM
