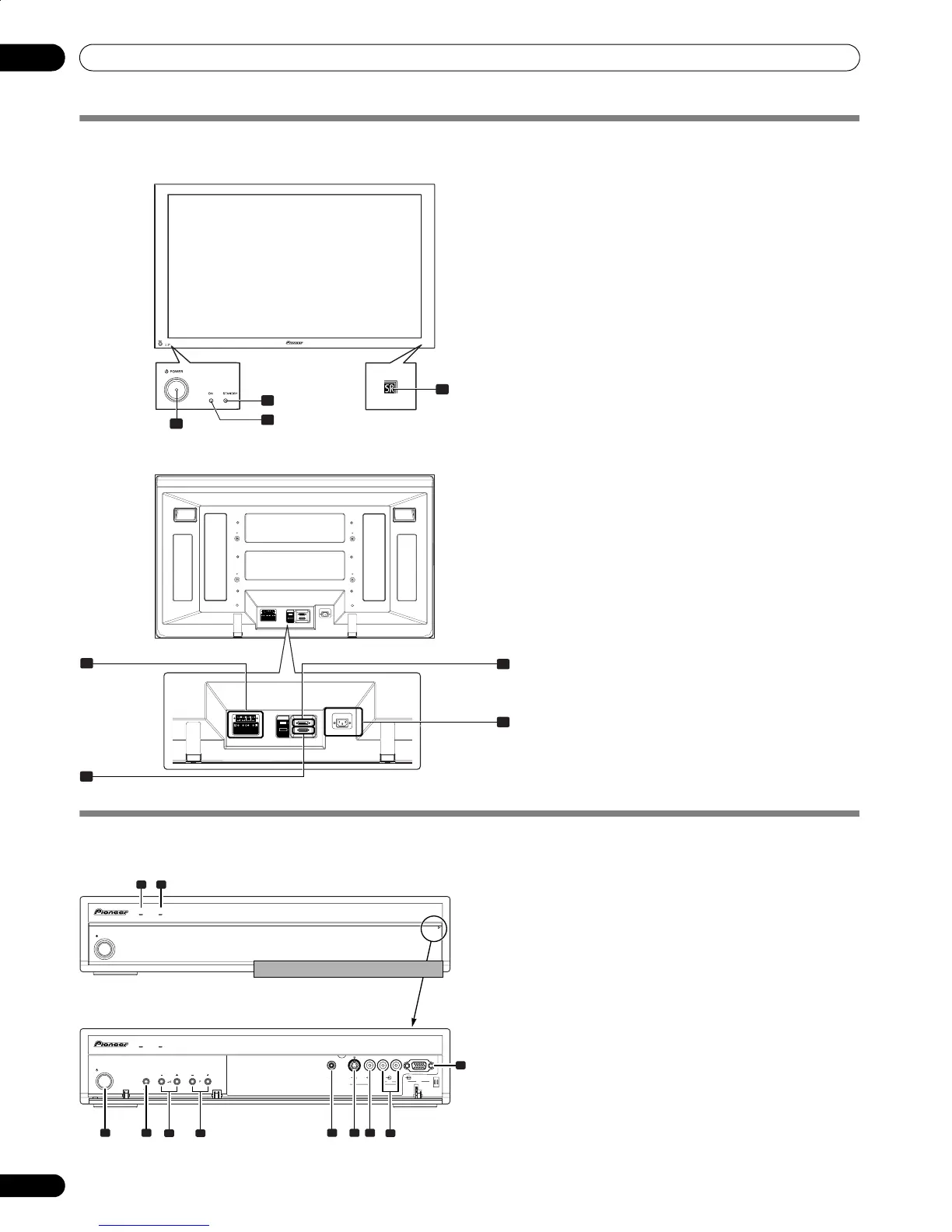

Nomes dos componentes
04
Nomes dos componentes
Monitor de plasma
Receiver de mídia
4
2
3
1
SYSTEM
CABLE
WHITE
BLACK
SYSTEM
CABLE
WHITE
BLACK
5
6
7
8
Vista frontal
1 Botão POWER
2 Indicador STANDBY
3 Indicador POWER ON
4 Sensor do controle remoto
5 Terminais SPEAKER (direito/
esquerdo)
6 Terminal SYSTEM CABLE (PRETO)
7 Terminal SYSTEM CABLE (BRANCO)
8 Terminal AC IN
Vista traseira
STANDBYON
STANDBY/ON
PULL
OPEN
STANDBYON
STANDBY/ON
INPUT VOLUME CHANNEL
ANALOG RGB
PC
PC
INPUT 5
S-VIDEOPHONES VIDEO AUDIOLR
3
4 7 8 9
11
5 6 10
1 2
Vista frontal
1 Indicador POWER ON
2 Indicador STANDBY
3 Botão STANDBY/ON
4
Botão INPUT
5 Botões VOLUME +/–
6
Botões CHANNEL +/–
7
Terminal de saída PHONES
8 Terminal INPUT 4 (S-VIDEO)
9 Terminal INPUT 4 (VIDEO)
10 Terminais INPUT 4/PC INPUT
(AUDIO)
11 Terminal PC INPUT (ANALOG RGB)
Puxe esta seção para abrir a porta.
PDP506HDG_PoB.book Page 12 Friday, June 24, 2005 6:53 PM
