Pioneer pdp-506hdg User Manual

20
En
Preparation
05

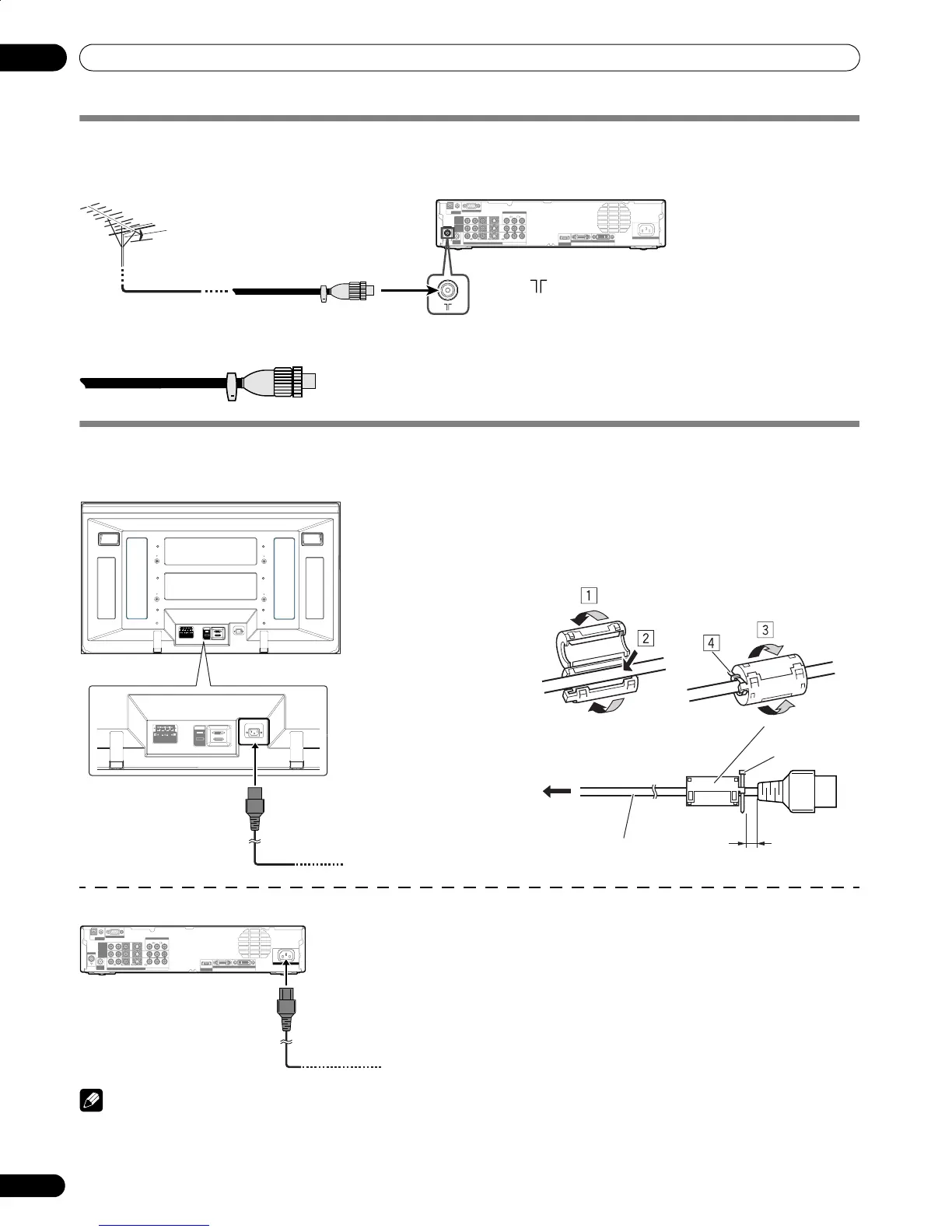

Connecting to an antenna
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used
for a coaxial cable.
Antenna cable (commercially available)
Connecting the power cord
Plasma Display (rear view)
NOTE
• Disconnect the power cord from the power outlet, Plasma Display and Media Receiver when the system is not going to be used
for a long period of time.
IN OUT
CONTROL
ANT IN
SUB
WOOFER
INPUT 3
INPUT 2
SERVICE ONLY
S-VIDEOVIDEO
YC
B/PB CR/PR
R-AUDIO-L
INPUT 1
COMPONENT VIDEO
MONITOR OUT
VIDEOR-AUDIO-L
INPUT 3
HDMI
BLACK WHITE
AC IN
SYSTEM CABLE
• Connect the 75-ohm coaxial cable (commercially available) to the
ANT (ANT IN) terminal.
If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug
(IEC169-2), plug it into the ANT IN terminal at the rear of the Media Receiver.
SYSTEM
CABLE
WHITE
BLACK
SYSTEM
CABLE
WHITE
BLACK
I N OUT
CONTROL
ANT IN
SUB
WOOFER
INPUT 3
INPUT 2
SERVICE ONLY
S-VIDEOVIDEO
YC
B /P B C R /P R
R-AUDIO-L
INPUT 1
COMPONENT VIDEO
MONITOR OUT
VIDEOR-AUDIO-L
INPUT 3
HDMI
BLACK WHITE
AC IN
SYSTEM CABLE
To a wall outlet
Media Receiver (rear view)
To a wall outlet
Att
ac
hi
ng
th
e
f
err
it
e core
To help prevent noise, attach the supplied ferrite core
to the connector end of the power cord as shown. Use
the supplied cable tie to prevent the ferrite core from
slipping on the cable.
As close as possible
AC power cord
To power
outlet
Ferrite core
Cable tie
To AC IN
PDP506HDG.book Page 20 Monday, June 27, 2005 12:57 PM
