Part Names
04

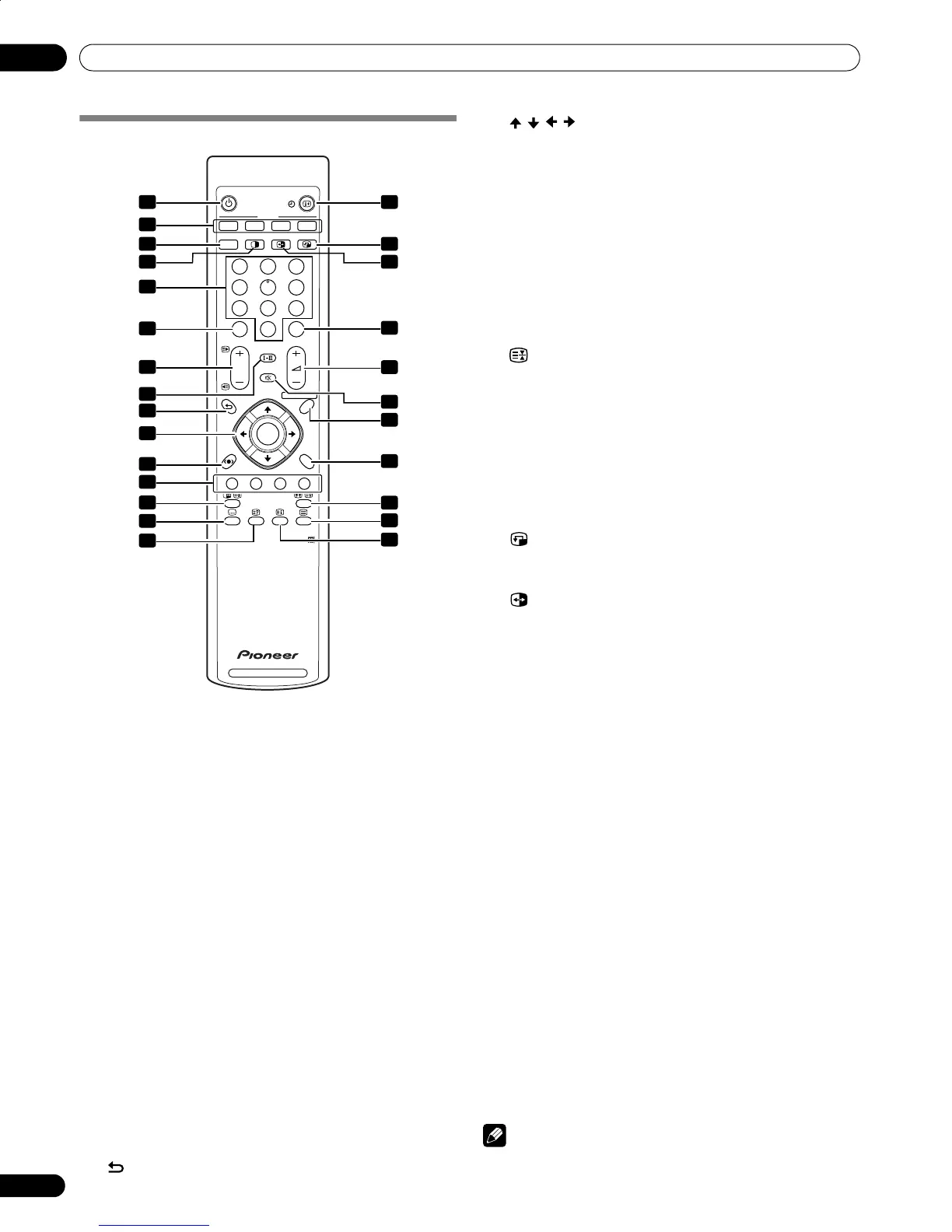

Remote control unit
1 a
Turns on the power to the Plasma Display or places it into
standby mode.
2 INPUT 1, 2, 3, 4
Selects an input source of the Plasma Display. (INPUT1,
INPUT2, INPUT3, INPUT4).
3PC
Selects the PC terminal as an input source.
4 c
Switches the screen mode among 2-screen, picture-in-
picture, and single-screen.
5 0 – 9
Switches on the power to the Plasma Display.
TV/External input mode: Selects a channel.
TELETEXT mode: Selects a page.
6 CH RETURN
Returns to the previous channel.
7 P +/P –
TV/External input mode: Selects a channel.
w/x
TELETEXT mode: Selects a page.
8 g
Sets the sound multiplex mode.
9 (RETURN)
Restores the previous menu screen.
10 ///
Selects a desired item on the setting screen.
ENTER
Executes a command.
11 FRONT SURROUND
Switches the Front Surround mode.
12 Color (RED/GREEN/YELLOW/BLUE)
TELETEXT mode: Selects a page.
13 d
Freezes a frame from a moving image. Press again to
cancel the function.
TELETEXT mode: Stops updating Teletext pages. Press
again to release the hold mode.
14 [
Jumps to the Teletext subtitle page.
15 k
TELETEXT mode: Displays hidden characters.
16 p
Displays the channel information.
17
Moves the location of the small screen when in the picture-
in-picture mode.
18
Switches between the two screens when in the 2-screen or
picture-in-picture mode.
19 CH ENTER
Executes a channel number.
20 i +/ i –
Sets the volume.
21 e
Mutes the sound.
22 HOME MENU
TV/External Input mode: Displays the Menu screen.
23 AV SELECTION
Selects audio and video settings. (AV mode: STANDARD,
DYNAMIC, MOVIE, GAME, USER. PC mode: STANDARD, USER.)
24 f
TV/External input mode: Changes the wide screen size.
v
TELETEXT mode: Switches Teletext images. (full/upper
half/lower half)
25 m
Selects the TELETEXT mode.
(all TV image, all TEXT image, TV/TEXT image)
26 l
TELETEXT mode: Displays an Index page for the CEEFAX/
FLOF format. Displays a TOP Over View page for the TOP
format.
NOTE
• When using the remote control unit, point it at the Plasma
Display.
