44
En
Enjoying through External Equipment
11
Enjoying through External Equipment
You can connect many types of external equipment to your
Plasma Display System, like a VCR, DVD player, personal
computer, game console, and camcorder. To view images
coming from external equipment, select the input source using
the INPUT buttons on the remote control or the INPUT button
on the Media Receiver.
CAUTION
• To protect all equipment, always unplug the Media Receiver
from the power outlet before connecting to a VCR, DVD
player, personal computer, game console, camcorder, or
other external equipment.
NOTE
• Refer to the relevant operation manual (DVD player, personal
computer, etc.) carefully before making connections.

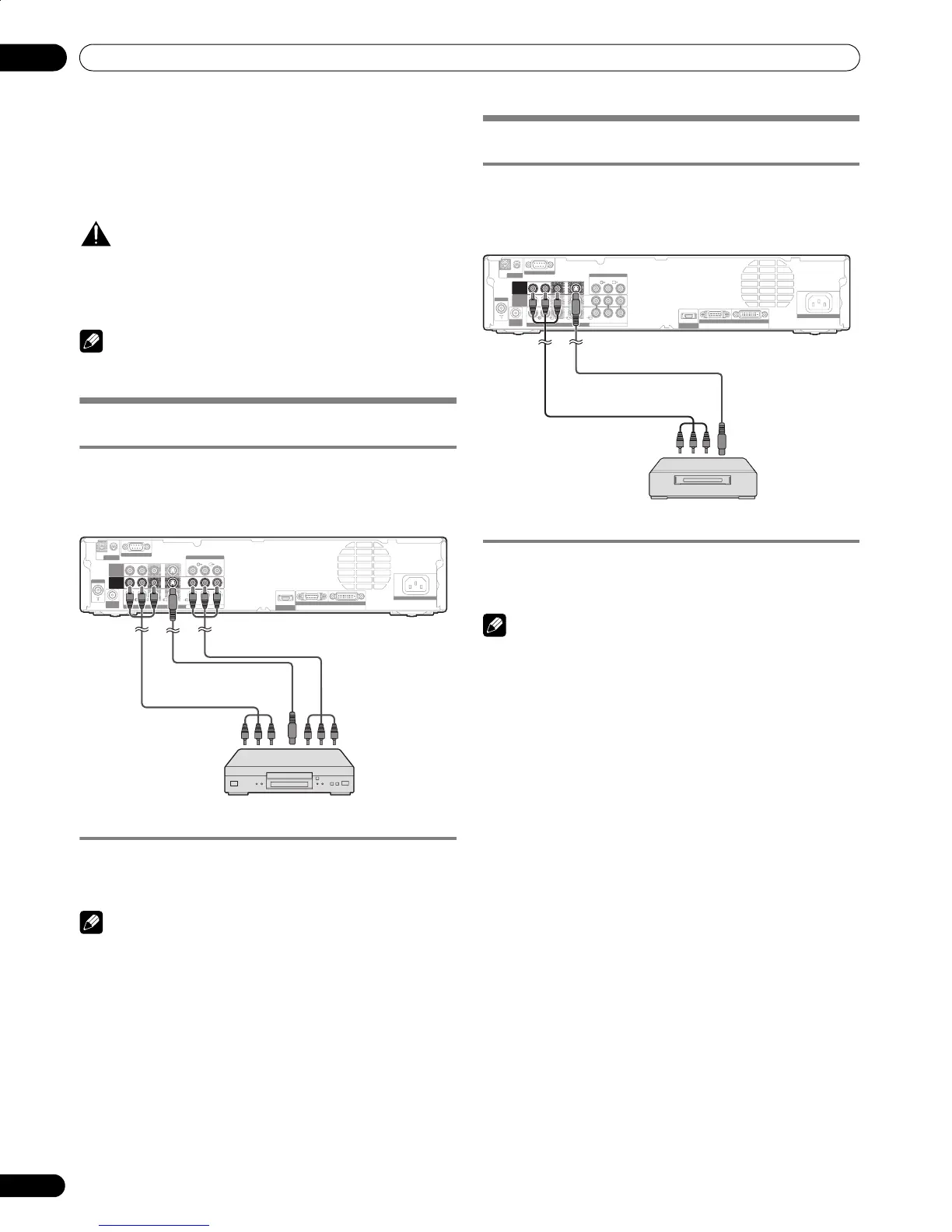

Watching a DVD image
Connecting a DVD player
Use the INPUT 2 terminal when connecting to a DVD player
and other audiovisual equipment.
Displaying a DVD image
To watch a DVD image, press INPUT 2 on the remote control
unit or press INPUT on the Media Receiver to select INPUT2.
NOTE
• Refer to your DVD player operation manual for the signal
type.
• The INPUT 2 terminal is checked for cable connections in the
order where; 1) Component Video, 2) S-Video, 3) Video.
• Connect the external equipment to only terminals that are to
actually used.
Watching a VCR image
Connecting a VCR
Use the INPUT 3 terminal when connecting a VCR and other
audiovisual equipment.
Displaying a VCR image
To watch a VCR image, press INPUT 3 on the remote control
unit or press INPUT on the Media Receiver to select INPUT3.
NOTE
• Refer to your VCR operation manual for the signal type.
• The INPUT 3 terminal is checked for cable connections in the
order where; 1) S-Video, 2) Video.
• Connect the external equipment to only terminals that are to
actually used.
IN OUT
CONTROL
ANT IN
SUB
WOOFER
INPUT 3
INPUT 2
SERVICE ONLY
S-VIDEOVIDEO
YC
B/PB C R/PR
R-AUDIO-L
INPUT 1
COMPONENT VIDEO
MONITOR OUT
VIDEOR-AUDIO-L
INPUT 3
HDMI
BLACK WHITE
AC IN
SYSTEM CABLE
Media Receiver (rear view)
DVD player
Component cable
(commercially available)
AV cable
(commercially available)
S-Video cable
(commercially available)
I N OUT
CONTROL
ANT IN
SUB
WOOFER
INPUT 3
INPUT 2
SERVICE ONLY
S-VIDEOVIDEO
YC
B/PB C R/PR
R-AUDIO-L
INPUT 1
COMPONENT VIDEO
MONITOR OUT
VIDEOR-AUDIO-L
INPUT 3
HDMI
BLACK WHITE
AC IN
SYSTEM CABLE
Media Receiver (rear view)
VCR
AV cable
(commercially available)
S-Video cable
(commercially available)
PDP506HDG.book Page 44 Monday, June 27, 2005 12:57 PM
