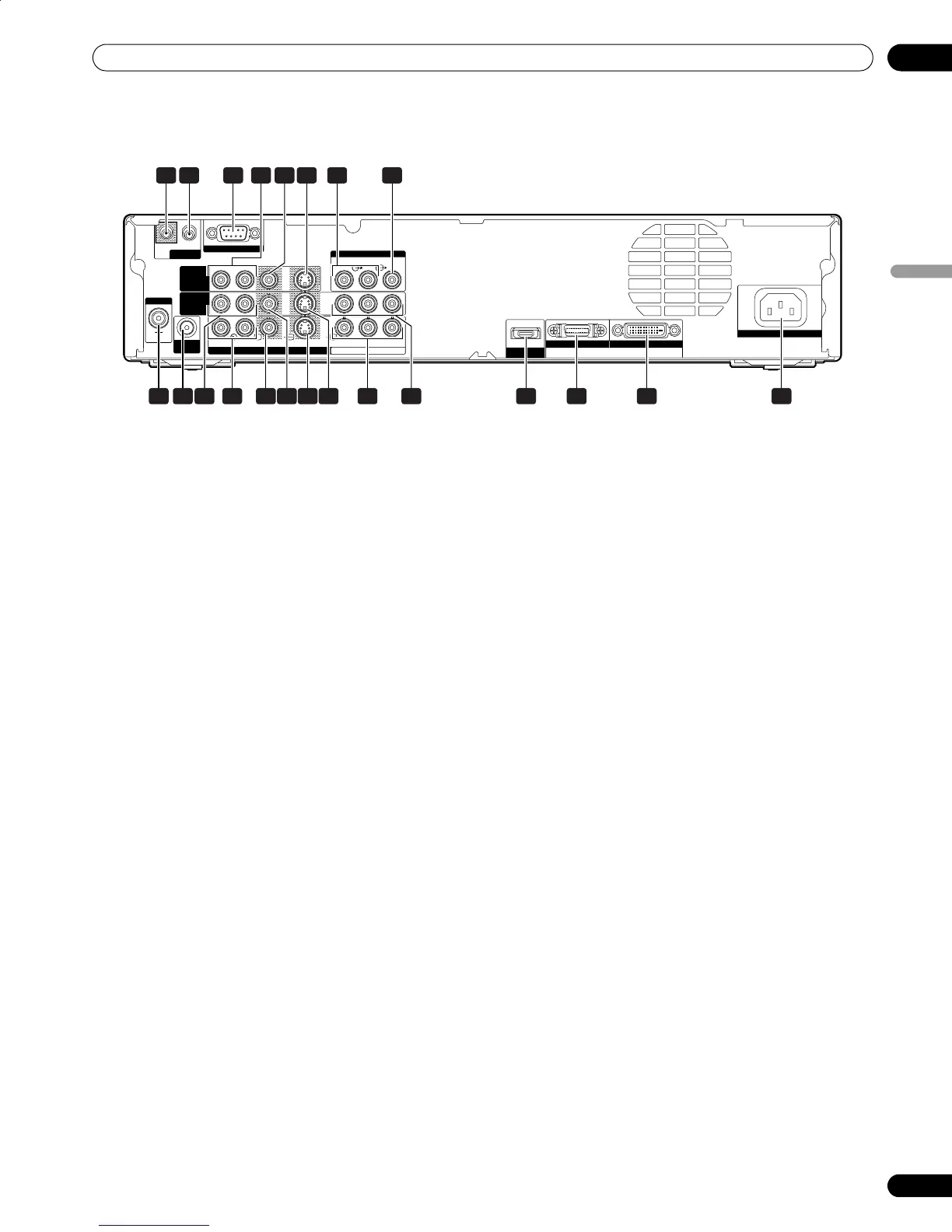

Nombres de los componentes
04
Español
1 Terminal CONTROL IN
2 Terminal CONTROL OUT
3 Terminal RS-232C
(se usa en la configuración de fábrica)
4 Terminales INPUT 3 (AUDIO)
5 Terminal INPUT 3 (VIDEO)
6 Terminal INPUT 3 (S-VIDEO)
7 Terminales MONITOR OUT (AUDIO)
8 Terminal MONITOR OUT (VIDEO)
9 Terminal ANT (Antena) IN
10 Terminal de salida SUB WOOFER
11 Terminales INPUT 2 (AUDIO)
12 Terminales INPUT 1 (AUDIO)
13 Terminal INPUT 1 (VIDEO)
14 Terminal INPUT 2 (VIDEO)
15 Terminal INPUT 1 (S-VIDEO)
16 Terminal INPUT 2 (S-VIDEO)
17 Terminales INPUT 1
(COMPONENT VIDEO: Y, C
B /P B , C R /P R )
18 Terminales INPUT 2
(COMPONENT VIDEO: Y, C
B /P B , C R /P R )
19 Terminal INPUT 3 (HDMI)
20 Terminal SYSTEM CABLE (NEGRO)
21 Terminal SYSTEM CABLE (BLANCO)
22 Terminal AC IN (entrada de CA)
